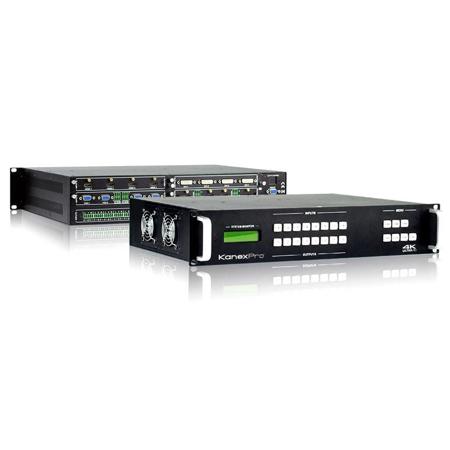

KanexPro 4K UHD 8x8 Modular Matrix Switcher

SKU: KPHDMMX884K MFR: HDMMX88-4K
Earn VIP Reward Points

Key Features

  • Seamlessly switch between eight HDMI sources with this 4K UHD matrix switcher.
  • Enjoy wide compatibility with various devices using this versatile video switcher.
  • This reliable connection ensures stable and high-quality video signal distribution.
  • Control your video sources via IR, RS-232, or TCP/IP for easy setup and operation.
  • The modular design allows for customized input/output configurations as needed.
  • Perfect for professional A/V setups, offering low latency and high resolution output.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$129.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KanexPro Matrix Switcher Specifications

  • Securing mechanism

    Thumbscrew

  • Chassis Input

    2x Input Cards

  • Chassis Output

    2x Output Cards

  • Bandwidth for each I/O

    340 MHz (10.2 Gbps)

  • Input/ output impedance

    75Ohms

  • Switching speed

    200ns (Max)

  • Gain

    0 dB

  • Max delay

    5nS (+/- 1nS)

  • Serial control port

    RS-232, 9-pin female D connector

  • Pin Configurations

    2 = TX, 3 = RX, 5 = GND

  • Front panel control

    Buttons

  • TCP/IP Control

    Yes, via Ethernet

  • Material

    Black painted Aluminum

  • Frame Size

    2 U rack chassis

  • Humidity

    10 - 90%

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    20 - 90%, Non-condensing

  • Storage Temperature

    -10 to 60 deg. C / 14 to 140 deg. F

  • Storage Humidity

    20 - 90%, Non-condensing

  • Installation

    Rack mountable

  • International Power Supply

    110VAC - 240VAC, 50/60Hz

  • Power Consumption

    60W fully populated

  • ESD protection

    15kV

  • Regulatory

    CE, RoHs

  • Diagnostic Indicators

    LCD output status & power LED

  • Dimensions (W x D x H)

    483 x 320 x 88mm / 19.02 x 12.60 x 3.46"(2 U high)

  • Weight

    3kg / 6.61lbs

About KanexPro Matrix Switcher

While the KanexPro HDMMX88A-4K is a sophisticated 8x8 modular matrix switcher, it's more than just a device. It's an advanced solution for high-tech video and audio distribution, designed to cater to the needs of professional environments. This innovative switcher chassis comes with two input slots and two output slots, each capable of supporting up to four device connections.

This high-performance switcher offers 4K UHD resolution via HDMI & HDBaseT, ensuring crystal clear visuals. It supports a wide range of connections including VGA, SDI, DVI, HDMI, HDBaseT, and Fiber optic, making it a versatile choice for various AV setups. With a high-bandwidth capacity of up to 10.2 Gbps, it ensures seamless and uninterrupted transmission of data.

The HDMMX88A-4K is not just about performance, it's also about convenience. It features a customizable 8x8 modular switch, cross-point ultra-switching, and advanced HDCP & EDID management. The hot swappable design allows for easy replacement of components without shutting down the system. The front panel is equipped with clear illuminated buttons and an LCD for switching and status updates.

Control is at your fingertips with options to manage the device via IR, Ethernet, and RS-232. It also comes with 10 global presets for efficient configuration of video and audio distribution. The front panel security lock and 2U rack-mountable aluminum enclosure ensure the device is secure and fits perfectly into your professional setup.

The optional modular input and output cards offer a variety of connections including HDMI, DVI, VGA, HDBaseT, Fiber Optic, and analog video with digital scaling. The system supports stereo audio embedding on the HDMI input cards and de-embedding on the HDMI or HDBaseT output cards.

The KanexPro HDMMX88A-4K is ideal for various commercial applications such as control centers, smart lecture halls, medical and government facilities, and residential environments where 4K UHD signal distribution and audio is critical. Please note that cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches may affect distances and picture quality.

KanexPro Matrix Switcher Features

  • Advanced 8x8 modular matrix switcher with 4K UHD resolution via HDMI & HDBaseT
  • Supports a wide range of connections including VGA, SDI, DVI, HDMI, HDBaseT, and Fiber optic
  • High-bandwidth capacity of up to 10.2 Gbps for seamless data transmission
  • Features customizable cross-point ultra-switching and advanced HDCP & EDID management
  • Control options via IR, Ethernet, and RS-232 with 10 global presets for efficient configuration
  • Ideal for commercial applications such as control centers, smart lecture halls, and medical facilities

Key Features

  • Seamlessly switch between eight HDMI sources with this 4K UHD matrix switcher.
  • Enjoy wide compatibility with various devices using this versatile video switcher.
  • This reliable connection ensures stable and high-quality video signal distribution.
  • Control your video sources via IR, RS-232, or TCP/IP for easy setup and operation.
  • The modular design allows for customized input/output configurations as needed.
  • Perfect for professional A/V setups, offering low latency and high resolution output.

What's in the box:

  • KanexPro 4K UHD 8x8 Modular Matrix Switcher
  • IR Remote
  • RS232 Cable
  • Power Cable
  • 4x Modular Metal Blank
  • 4x Rubber Feet
  • Installation Guide
  • KanexPro 3 Year Parts and Labor Warranty
