KanexPro SW-HDSC42D4K 4K Seamless Presentation Matrix Featuring Premium Extender and Receiver
SKU: KPHDSC42D4K MFR: SW-HDSC42D4K
Earn VIP Reward PointsKey Features
- Seamless 4K matrix switching with this KanexPro KVM, perfect for dynamic presentations.
- Extend HDMI signals up to 131 feet with this 4K extender, maintaining pristine image quality.
- Experience superior audio with balanced inputs/outputs on this pro-grade presentation matrix.
- Control your devices remotely with RS232 and IR, enhancing your KVM switch setup's flexibility.
- USB-C input supports modern devices, integrating seamlessly with this advanced KVM solution.
- Enjoy reliable performance with HDCP 2.2 compliance for protected 4K content on all displays.
Ships from Manufacturer?
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$399.99
3 Year
$599.99
4 Year
$699.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About KanexPro SW-HDSC42D4K

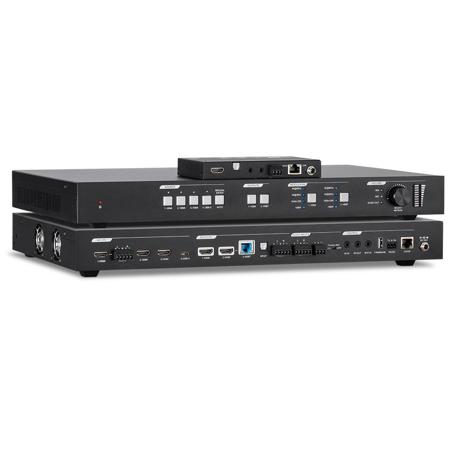

The KanexPro SW-HDSC42D4K is a Four input and Two output multi-format seamless presentation matrix switcher with extender receiver. The matrix switcher is designed to be the central component of an AV system. It is ideal for applications where multiple signals with different resolutions must be optimized for displays. It is also suitable for presentation spaces where two displays are needed.
The matrix switcher simplifies meeting room and presentation space system integration by providing three HDMI inputs, one USB-C input, one HDMI output and one Extender output with one HDMI loop output. It also provides one external audio input to be embedded in the first HDMI input. Additionally, it has one MIX audio input and one MIC audio input for global audio.
The matrix switcher provides true 4K scaling up to 4K at 60Hz at 4:4:4. Both inputs and outputs are capable of providing 4K at 60Hz at 4:4:4 signals. The Extender output provides an innovative solution allowing transmission of HDMI 2.0 signals over a CATx cable while ensuring original image quality. It is designed for use with the Extender Receiver. The USB-C input is ideal for AV interfacing with newer MacBook's, Chromebooks and Windows PCs, as well as smart phones and tablets. The matrix switcher supports auto switching on HDMI. It also allows users to control system functionality via Web GUI, RS232, IR and CEC.
Control using IR, RS-232 or web based GUI
This 4K scaler can be controlled by any 3rd party control system, just download the RS-232 drivers to program. IR input and output control can be transmitted bi-directionally between the switcher and compatible Receiver. Front panel buttons, IR Remote, RS232 or GUI all are inclusive with a microphone input that supports phantom power and a balanced stereo audio output for audio support.
Applications
Ideal for classrooms, conference rooms, huddle rooms and other collaborative spaces where digital and analog sources need to be scaled, switched and extended over CATx in a fast and reliable manner.
KanexPro SW-HDSC42D4K Features
- Auto switch & scale 2-inputs to two 4K displays
- HDMI and USB-C video inputs can be embedded with external audio
- Output resolutions selectable to: 1280x720 (default), 1920x1080, 1024x768, 3840x2160 at 30Hz & 3840x2160 at 60Hz
- Supports video resolution down-scaling and up-scaling, 1080P, 1920x1200P, 4K at 30Hz, 4K at 60Hz can be selected for HDMI and Extender outputs
- Supports ARC
- Features a mirrored HDMI loopout for the Extender output
- Extender Input resolutions: 1080p (70m), 4Kx2K (40m)
- Extender Output resolutions: 1080p (100m), 4Kx2K (70m)
- Compliant with HDMI 2.0 & HDCP 2.2
- Built in 40W amplifier for speaker systems
- Built-in volume control
- Support Line level or Mic audio inputs
- MIC port supports balance/unbalance signal & suppresses the external noise effectively
- Front Panel Buttons, IR, RS-232 and Ethernet for control
- Bi-directional IR & RS232 pass-through
- Built-in easy to use Web Interface for control and switching
- Powerful OSD function
- IR remote control inclusive
- 1U (19") rack mountable enclosure
- Built-in USB port for firmware update
- Backed by KanexPro 3 -Year Parts & Labor Warranty
