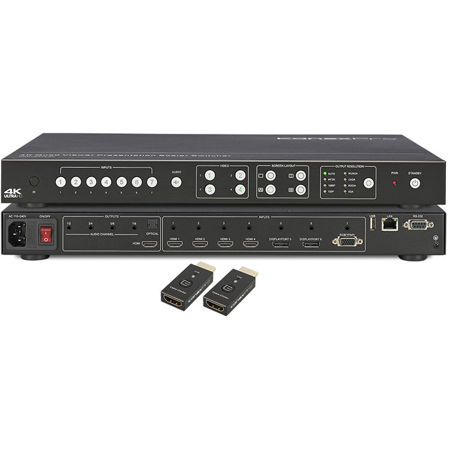

KanexPro 4K Video Tiler & Scaler Switcher with HDMI & Click-to-Show Me Controller

Just imagine the possibilities with the KanexPro HD-VTSC72-4K, an advanced 7-input, 1-output HDMI presentation scaler-switcher. This sophisticated device is designed to upscale HDMI, DisplayPort, and VGA devices such as laptops, Blu-ray players, and desktops to a true 4K at 30Hz resolution. It creates a Quad Window experience, transforming any collaboration space into a high-tech hub.

This high-quality switcher includes 4 HDMI, 2 DisplayPort, and 1 VGA input with HDMI output. It's compliant with the latest HDCP specifications, ensuring compatibility with a wide range of devices. The Quad-Viewer can be controlled via RS-232 and TCP/IP, offering flexibility in operation.

The professional-grade 4K Multiviewer Switcher comes with an integrated switching feature and an elite 4K scaling engine to support up-scaling & down-scaling. It includes two 4K-HDCLICKERS for a "Click-to-Show me your content" experience, allowing you to easily share your work on the big screen.

The innovative switcher supports Quad-View Windowing from 4 inputs and multiple HDMI output resolutions: 4Kx2K@30Hz &1080p/60Hz. It also incorporates DP 1.2a resolutions up to 3840x2160@60Hz and supports MHL inputs via HDMI. The auto-scaling feature auto-detects EDID from the display to scale optimized resolution, ensuring the best possible viewing experience.

The KanexPro HD-VTSC72-4K also provides breakaway audio switching, audio embedding & de-embedding, and supports auto-selection of active HDMI audio or external stereo audio. It offers unbalanced 7.1 analog audio or optical digital audio output for superior sound quality.

Control is at your fingertips with options via front panel buttons, IR, RS232 & LAN (Web). The switcher easily integrates with any Video conferencing systems such as Polycom, Cisco, and Avaya, and with table or wall cable connection boxes in conference applications. It comes in a 1U rack-mountable enclosure with mounting hardware included.

The KanexPro HD-VTSC72-4K Presentation System is designed for future-ready classrooms, 4K themed conference rooms, control rooms, huddle rooms, and other collaborative spaces. It allows participants to connect their own BYOD devices to a Quad-View environment using the Click-to-Show me cable controllers, making it an essential tool for modern, collaborative workspaces.
