Klipsch KDA-1000 4 In x 4 Out 1000W DSP Amplifier

For outdoor systems requiring more output, the Klipsch KDA-1000 DSP Amplifier powers larger arrangements to deliver incredible performance from a 1000W, single - rack unit solution - all completely customizable through the web - based DSP menu.

70V / 100V / Low Impedance Compatibility
From small residential systems to massive commercial installs, the Klipsch KDA-1000 is designed for maximum install flexibility - offering low impedance and 70V/100V compatibility for distributed line applications. These impedance settings are fully independent from channel to channel - so an installer can run one channel low impedance with another channel 70V/100V for full customization and optimization of their system.

Flexible I/O

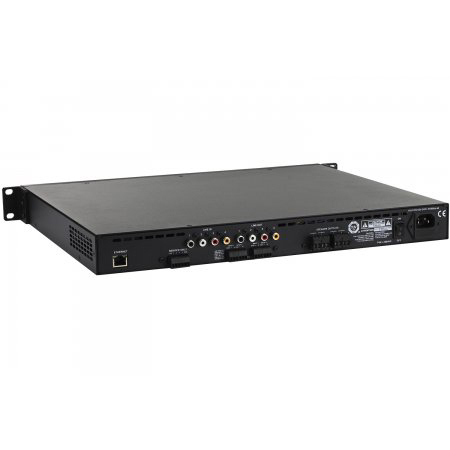

The KDA-1000 boasts fully matrixed 4x4 I/O with fully balanced Phoenix connector inputs and Phoenix speaker outputs capable of connecting up to 12 gauge wire. For non - balanced connections, RCA inputs and outputs (throughs) are also built - in, making the KDA-500 one of the most flexible power solutions on the market today.

State - Of - The - Art DSP Control And Set - Up
The myriad of I/O, impedance, and acoustic settings are fully matrixed and customizable through the web - based DSP menu - simply plug in a laptop computer to the RJ-45 port on the back panel of the amplifier, enter the assigned IP address into your favorite web browser to pull up the easy - to - use, streamlined menu page. In addition to password protected channel assignments, gain settings, EQ, and limiting, the DSP provides presets for almost every Klipsch speaker on the market - optimizing acoustic performance and power handling for these products with a single click. Accessing the DSP wirelessly with a tablet, smartphone, or computer is also quick and easy when the KDA amplifier is plugged into the networks wireless router.
