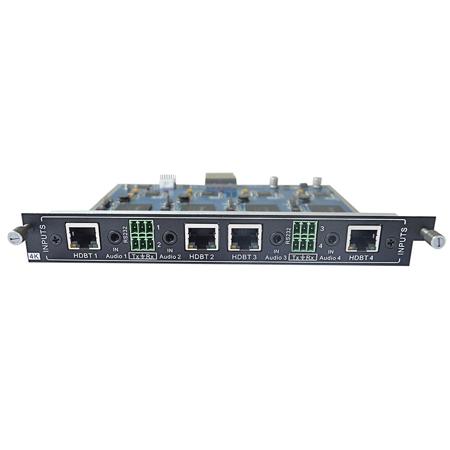

KanexPro 4-Input HDBaseT Card with 4K Support for Modular Matrix Switchers

SKU: KPMODINCAT6 MFR: MOD-IN-CAT6-4K
Earn VIP Reward Points

Key Features

  • Seamless integration: This 4-Input HDBaseT card enhances your modular matrix switchers.
  • Experience superior 4K video switching with this card, ensuring crystal-clear visuals.
  • Enjoy reliable performance with HDBaseT technology, extending signals up to 230 feet.
  • Simplify setup using shielded RJ45 ports, perfect for pro A/V installations.
  • Ensure compatibility with PCM, Dolby, & DTS-HD audio for immersive sound experiences.
  • Control cascading via selectable RS232 port ID, offering advanced management options.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KanexPro HDBaseT Card Specifications

  • Compatibility

    HDMMX88-4K, HDMMX1616-4K, HDMMX3232-4K, HDMMX6464-4K Matrix Switchers
    HDBASE70POET HDBaseT Transmitter (A/V and Control)

  • HDBaseT Port

    4x 8P8C port (Shielded RJ45)

  • Audio In

    4x 3.5mm TRS

  • RS232

    4x 3 pole Phoenix Connectors

  • Control

    RS232 pass though
    RS232 port ID selectable for cascading

  • Maximum Video Compatibility

    At 70m: Aluminum chassis
    At 40m: Standard Rack size, provide removable ears for mounting under table, or on wall

  • Video Compliance

    HDMI and HDCP

  • Embedded Audio

    Up to PCM 8 channel, Dolby Digital TrueHD and DTS-HD Master Audio

  • IR Carrier Frequency Range

    33-55kHz at 5V

  • RS232 Baud Rate

    Up to 115200 baud

  • Maximum Distance

    230' / 70.10m

  • Cable Requirements

    Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern

  • Bandwidth

    10.2Gbps

  • Gain

    0dB-10dB at 100MHz

  • Resolution Range

    800x600 - 1920x1200, 4Kx2K

  • Signal to Noise Ratio (SNR)

    >70dB at 100MHz over 100m

  • Return Loss

    <-30dB at 5kHz

  • Total Harmonic Distortion (THD)

    <0.005% at 1kHz

  • Min-Max Signal Level

    <0.3V - 1.45Vp-p

  • Differential Phase Error

    +/-10 deg. at 135MHz over 100m

  • Construction

    Thumbscrew card with keyed black metal plate

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    20% to 90%, Non-condensing

  • UPC Code

    814556015193

About KanexPro HDBaseT Card

It's time to elevate your audio and video experience with the advanced KanexPro MOD-IN-CAT6-4K, a sophisticated 4-Input HDBaseT Card with 4K Support for Modular Matrix Switchers. This high-tech card is designed to flawlessly integrate with HDMMX Modular Matrix Switchers, offering a seamless connection from remote sources up to 230 feet (70m) away using standard Cat 5e/6 cable with a TIA-568B.

This innovative card is not just about distance; it's also about quality. It supports a range of resolutions, including 4KX2K, 1920x1200, 1080p, and 3D, ensuring your visuals are always crisp and clear. With a high bandwidth of up to 10.2Gbps, this state-of-the-art card ensures smooth and uninterrupted data flow.

The KanexPro MOD-IN-CAT6-4K is equipped with built-in audio embedding and EDID management, enhancing your audio-visual experience. It supports DVI/HDMI signals, making it a versatile addition to your professional setup. The bi-directional RS-232 control allows for easy interfacing with source equipment when used with the HDBASE70POET transmitters.

This 4-Input HDBaseT card is HDCP 1.4 compliant and adheres to HDBaseT Specifications, HDMI, and HDCP compliance, ensuring it meets the highest industry standards. Whether you're extending long HDMI runs over cost-effective CAT5e/6 cable or remotely controlling source and destination devices, the KanexPro MOD-IN-CAT6-4K is the ideal solution for all your professional audio and video applications.

KanexPro HDBaseT Card Features

  • 4K-compliant HDBaseT card for superior video quality in professional setups
  • Extend signal reach up to 230 feet over CAT6 for flexible installation options
  • Supports diverse resolutions including 4KX2K, 1080p, and 3D for high-definition displays
  • High bandwidth capacity of 10.2Gbps for smooth audio/video transmission
  • Built-in audio embedding and EDID management for enhanced AV control
  • Compatible with DVI/HDMI signals and HDCP 1.4 for broad device connectivity

Key Features

  • Seamless integration: This 4-Input HDBaseT card enhances your modular matrix switchers.
  • Experience superior 4K video switching with this card, ensuring crystal-clear visuals.
  • Enjoy reliable performance with HDBaseT technology, extending signals up to 230 feet.
  • Simplify setup using shielded RJ45 ports, perfect for pro A/V installations.
  • Ensure compatibility with PCM, Dolby, & DTS-HD audio for immersive sound experiences.
  • Control cascading via selectable RS232 port ID, offering advanced management options.

What's in the box:

  • KanexPro 4-Input HDBaseT Card
  • KanexPro 3 Year Parts and Labor Warranty
