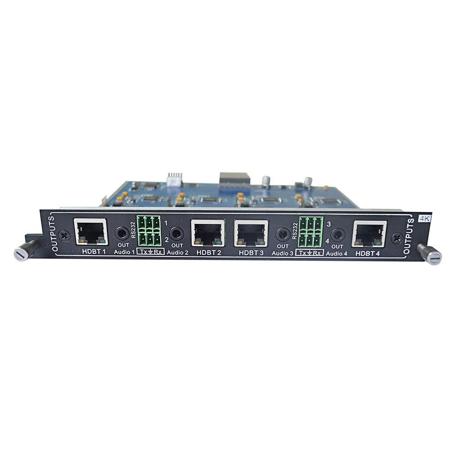

KanexPro 4-Output HDBaseT Card for Modular Matrix with 4K Support

SKU: KPOUTCAT64K MFR: MOD-OUT-CAT6-4K
Earn VIP Reward Points

Key Features

  • Extend your 4K video switching with this 4-output HDBaseT card for modular matrix systems.
  • Enjoy reliable connections up to 230 ft. using shielded Cat5e/6 cable with this video switcher.
  • This video component supports up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio.
  • Ensure wide compatibility with HDMI and HDCP video compliance for seamless integration.
  • Easily control devices via RS232 & IR pass-through, making this video switcher simple to use.
  • Experience low latency and high resolution with a bandwidth of 10.2Gbps for clear video.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KanexPro HDBaseT Card Specifications

  • HDBaseT Port

    Four 8P8C port (Shielded RJ45)

  • Audio Output Ports

    Four 3.5mm TRS

  • Output Resolutions

    4K at 30Hz, 24Hz, 1920x1080 at 60, 1920x1200

  • RS232

    Four 3 pole Phoenix Connectors

  • Control

    RS232 & IR Full function pass though; RS232 port ID selectable for cascading

  • Maximum Video Compatibility

    Aluminum chassis at 70m / 229.66'
    Standard Rack size, provide removable ears for mounting under table, or on wall at 40m / 131.23'

  • Video Compliance

    HDMI and HDCP

  • Embedded Audio

    Up to PCM 8 channel, Dolby Digital TrueHD and DTS-HD Master Audio

  • IR Carrier Frequency Range

    33-55kHz at 5 volts

  • RS232 Baud Rate

    Up to 115200 baud

  • Maximum Distance

    230' / 70.10m

  • Cable Requirements

    Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern

  • Bandwidth

    10.2Gbps

  • Gain

    0 dB - 10 dB at 100 MHz

  • Resolution Range

    800x600 - 1920x1200, 4Kx2K

  • Signal to Noise Ratio

    > 70 dB at 100 MHz over 100 m

  • Return Loss

    <-30 dB at 5 KHz

  • Total Harmonic Distortion

    < 0.005% at 1 KHz

  • Min-Max Signal Level

    < 0.3 V - 1.45 Vp-p

  • Differential Phase Error

    +/-10 deg. at 135 MHz over 100 m

  • Construction

    Plug-in card with keyed black metal plate

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    20% to 90%, Non-condensing

  • Matrix Switcher Compatibility

    HDMMX88-4K, HDMMX1616-4K, HDMMX3232-4K, HDMMX6464-4K

  • HDBaseT Transmitter Compatibility

    HDBASE7OPOER (A/V and Control)

  • UPC Code

    814556015186

About KanexPro HDBaseT Card

Let the KanexPro MOD-OUT-CAT6-4K, a 4-output HDBaseT card for MMX modular matrix switchers, revolutionize your audio-visual experience. This 4K compliant card is expertly designed to seamlessly integrate with HDMMX Modular matrix switchers, enhancing your system's performance by extending each output to up to 230 feet (70m) to remote displays.

Experience ultra-high-definition 4K UHD resolutions, bringing your visuals to life with unparalleled clarity. This high-bandwidth card supports a range of resolutions including 4KX2K, 1080p, and 1920x1200@60Hz, ensuring compatibility with a variety of display formats.

The KanexPro MOD-OUT-CAT6-4K is equipped with the latest EDID and HDCP compliance, guaranteeing secure, high-quality transmission of video content. It also features a built-in audio de-embedder, providing superior audio quality to match your high-definition visuals.

This 4-output HDBaseT card is designed with bi-directional RS232 connections for each output, enabling control signals at the equipment rack to manage displays when used with the HDBASE70POER Receiver. This feature allows for efficient, remote control of source and destination devices, making it an ideal solution for extending long HDMI runs over cost-effective CAT5e/6 cable.

Supporting both DVI and HDMI signals, the KanexPro MOD-OUT-CAT6-4K is a versatile addition to your audio-visual setup. Its high bandwidth of up to 10.2 Gbps ensures smooth, uninterrupted transmission of data, enhancing your viewing and listening experience.

In compliance with HDBaseT Specifications, HDMI, and HDCP, this 4-output card can be used with the HDBASE70POER Receiver Extender, offering a comprehensive solution for your audio-visual needs. Trust in the KanexPro MOD-OUT-CAT6-4K to deliver superior performance, high-definition resolutions, and efficient control of your audio-visual equipment.

KanexPro HDBaseT Card Features

  • 4K compliant, 4-output HDBaseT card for MMX modular matrix switchers
  • High-bandwidth card supporting 4KX2K, 1080p, and 1920x1200@60Hz resolutions
  • Extends output up to 230 feet (70m) to remote displays over single CAT6 Shielded Twisted Pair
  • Features bi-directional RS232 control for efficient equipment management
  • Built-in EDID management and HDCP compliance for secure, high-quality video transmission
  • Compatible with both DVI and HDMI signals, and can be used with HDBASE70POER Receiver Extender

Key Features

  • Extend your 4K video switching with this 4-output HDBaseT card for modular matrix systems.
  • Enjoy reliable connections up to 230 ft. using shielded Cat5e/6 cable with this video switcher.
  • This video component supports up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio.
  • Ensure wide compatibility with HDMI and HDCP video compliance for seamless integration.
  • Easily control devices via RS232 & IR pass-through, making this video switcher simple to use.
  • Experience low latency and high resolution with a bandwidth of 10.2Gbps for clear video.

What's in the box:

  • KanexPro 4-Output HDBaseT Card for Modular Matrix with 4K Support
  • KanexPro 3 Year Parts & Labor Warranty
