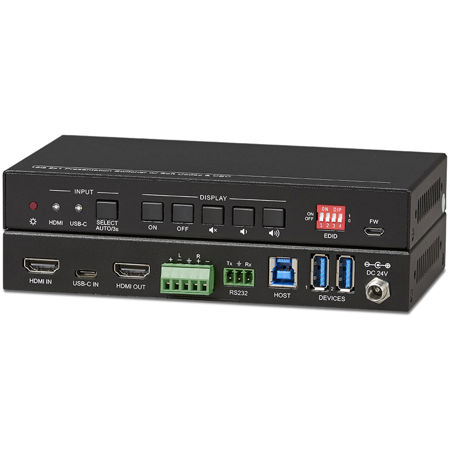

KanexPro SW-2X14KUSBC 2x1 USB-C & HDMI Auto Switcher with Video Conferencing Support

SKU: KPSW2X4KUSBC MFR: SW-2X14KUSBC
Earn VIP Reward Points

Key Features

  • Seamlessly switch between USB-C & HDMI sources with this 4K video switcher for crisp visuals.
  • Enhance video conferences with reliable, low latency switching and crystal-clear audio output.
  • Enjoy wide compatibility; this HDMI switcher supports up to 4K@60Hz for stunning resolution.
  • Easy setup gets you started quickly; perfect for home theaters or professional presentations.
  • This 2x1 video switcher offers great value, combining performance and simple operation.
  • Ensure a reliable connection for all your devices with this dependable video distribution component.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KanexPro SW-2X14KUSBC Specifications

Video
  • Video Input

    (1) HDMI, (1) USB-C

  • Video Input Connector

    (1) Type-A female HDMI, (1) Type-C USB

  • HDMI Input Resolution

    Up to 4Kx2K at 60Hz 4:4:4 8bit

  • USB-C Input Resolution

    Up to 4Kx2K at 30Hz 4:4:4

  • Video Output

    (1) HDMI

  • Video Output Connector

    (1) Type-A female HDMI

  • HDMI Output Resolution

    Up to 4Kx2K at 60Hz 4:4:4 8bit

  • HDMI Version

    2

  • HDCP Version

    2.2

  • USB Version

    3

  • HDR 10

    Supported

  • CEC

    Supported

  • HPD

    Supported

  • Audio Output

    (1) AUDIO OUT (Stereo balanced L/R)

  • Audio Output Connector

    (1) 5-pin terminal block

  • HDMI Audio Format

    LPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus,
    DTS: XTM and DTS-HD Master Audio pass-through

  • Stereo balanced L/R audio Format

    PCM

  • Max Output Level

    2.0Vrms +/-0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal

  • THD+N

    < 0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)

  • SNR

    > 80dB, 20Hz-20KHz bandwidth

  • Crosstalk Isolation

    > 70dB, 10KHz sine at 0dBFS level (or max level before clipping)

  • L-R Level Deviation

    < 0.3dB, 1KHz sine at 0dBFS level (or max level before

  • Frequency Response Deviation

    < +/-0.5dB 20Hz-20KHz

  • Output Load Capability

    1 KOhms and higher (supports 10x paralleled 10 KOhms loads)

  • Stereo Channel Separation

    > 70dB at 1KHz

Control Part

Jump to...
  • Control

    (1) EDID, (1) FW, (1) RS232, (1) HOST, (2) DEVICE

  • Control Connector

    (1) 4-pin DIP switch, (1) Micro-USB, (1) 3-pin terminal block,
    (1) Type-B USB 3.0, (2) Type-A USB 3.0

General

Jump to...
  • HDMI 2.0 Cable Length

    4K at 60Hz 4:4:4 = 5m, 4K at 60Hz 4:2:0 = 10m, 1080P = 15m

  • Bandwidth

    18Gbps

  • Operation Temperature

    -10 to 55 deg. C (14 to 131 deg. F)

  • Storage Temperature

    -25 to 70 deg. C (-13 to 158 deg. F)

  • Relative Humidity

    10% ~ 90%

  • External Power Supply

    Input: AC 100-240V, 50/60Hz, Output: 24V DC 2.71A

  • Power Consumption

    60W (Max)

  • Dimensions (WxHxD)

    6.6 x 0.96 x 3.74" (16.76 x 2.44 x 9.50cm)

  • Weight

    0.54 lbs (0.24kg)

  • UPC Code

    813982021969

About KanexPro SW-2X14KUSBC

The KanexPro SW-2X14KUSBC switcher addresses the ever increasing need to connect USB-C based laptops, tablets and other devices in conference rooms and small huddle rooms. The SW-2X14KUSBC is intelligently designed to auto-switch between two devices. It supports video resolution up to 4K at 60Hz 4:4:4 8-bit, 2K at 60.

USB-C Charging for MacBook's, Tablets and Laptops
The 2x1 switcher allows USB-C charging on the input port up to 60 Watts for MacBook Pro, iPad or slimport based laptops while you collaborate in huddle rooms.

Audio and USB 3.0 for SOFTCODEC & Peripheral Sharing
The switcher supports stereo and multichannel audio on the HDMI inputs. In addition to the audio embedded in the HDMI output stream, the audio is simultaneously de-embedded to a balanced analog audio output. It also supports device extension by providing one type-B USB 3.0 port for host connection to a PC and two type-A USB ports for HID devices such as camera, microphone, keyboard for instant conferencing.

Auto-Switching Enabled
The switcher features multiple methods of control. When in the AUTO mode, the switcher will automatically switch to the first detected source device. When the active source is removed, the switcher will switch to the lowest numbered input. The switcher can be manually controlled by the front panel buttons and RS232 command. CEC allows the display device can be controlled by the front panel buttons and RS232 CEC.

Applications
The low-profile design with auto-switching capability enable discreet placement in lecterns, beneath tables in smaller conference rooms, huddle rooms and smart classrooms and is perfect for on-the-spot conferencing using Skype, Lync, Zoom and much more apps.

KanexPro SW-2X14KUSBC Features

  • A true 4K/60, 2x1 auto-switcher with HDMI 2.0 and USB-C inputs
  • Intelligent Automatic switching
  • Provides charging on USB-C port up to 60W perfect for MacBook & iPad
  • Controllable via front panel buttons & RS232C
  • Built-in EDID management
  • 4Kx2K at 60Hz 4:4:4, HDR 10, Dolby Vision & HDCP 2.2
  • Provides USB data (USB 3.0/2.0) and 4K video transmission on USB-C port
  • Balanced analog audio for audio de-embedding
  • Peripheral units (e.g. microphone and camera) can be connected by type-A USB (USB 3.0/2.0) ports and automatically switched along with HDMI and USB-C input as USB DEVICES for corresponding HOST
  • Smart EDID management capable for various applications and customized setting
  • Control via front panel buttons
  • Handles CEC & RS- 232 commands for display control such as, (ON, OFF, MUTE, VOL+, VOL -)
  • Low profile, perfect for lecterns, small to medium sized huddle rooms
  • International, locking power supply
  • Backed by KanexPro 3 year parts and labor warranty

Key Features

  • Seamlessly switch between USB-C & HDMI sources with this 4K video switcher for crisp visuals.
  • Enhance video conferences with reliable, low latency switching and crystal-clear audio output.
  • Enjoy wide compatibility; this HDMI switcher supports up to 4K@60Hz for stunning resolution.
  • Easy setup gets you started quickly; perfect for home theaters or professional presentations.
  • This 2x1 video switcher offers great value, combining performance and simple operation.
  • Ensure a reliable connection for all your devices with this dependable video distribution component.

What's in the box:

  • KanexPro SW-2X14KUSBC 2x1 USB-C & HDMI Auto Switcher with Video Conferencing Support
  • 2x Mounting Ears with 4 Screws
  • 4x Plastic Cushions
  • 5-Pin Terminal Block
  • RS232 Cable (3-Pin Terminal Block to DB9)
  • Power Adapter/Cord (24V DC/2.71A)
  • User Manual
  • KanexPro 3 Year Parts & Labor Warranty
