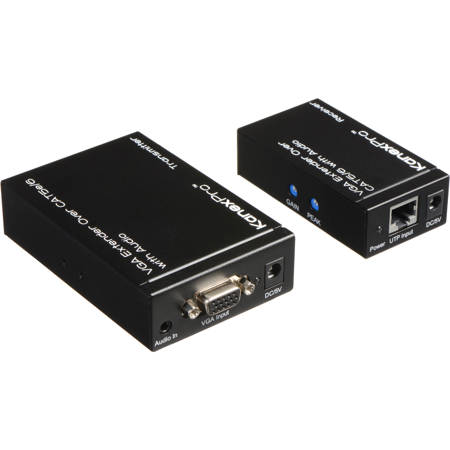

KanexPro VGA 1x1 Extender over CAT5e/6 with Audio Up to 1000' / 304.80m
See all KanexPro items

KanexPro VGA 1x1 Extender over CAT5e/6 with Audio Up to 1000' / 304.80m

SKU: KPVGAEXTX1
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-05-23T12:05:52

Rated 5 out of 5

VGA Transfer from event to remote

266 ft of cat 5 from one gym to another.

Russell C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

KanexPro Extender Specifications

  • Transmitter: Input

    1x VGA/1x 3.5mm Stereo

  • Transmitter: Output

    1x Cat 5e/6/1x VGA Output (Local)/3.5mm Stereo

  • Receiver: Input

    1x Cat 5e/6

  • Receiver: Output

    1x VGA/1x 3.5mm Stereo

  • Vertical Frequency Range

    60/75/85Hz

  • Resolutions (PC)

    VGA-WUXGA (1920x1200 at 60Hz)

  • Power Supply

    5V DC at 2A, 5W

  • Operating Temperature

    0 to 70 deg. C / 32 to 158 deg. F

  • Operating Humidity

    10% to 85 % RH (no condensation)

  • Storage Temperature

    -10 to 80 deg. C / 14 to 176 deg. F

  • Storage Humidity

    5% to 90 % RH (no condensation)

  • Regulatory Approvals

    Converter/Power Supply: FCC, CE, UL

  • Dimensions

    VGA Extender: 4 x 2.6 x 1" / 101.60 x 66.04 x 25.40mm
    Receiver: 3.25 x 1.4 x 0.8" / 82.55 x 35.56 x 20.32mm

  • Weight

    VGA Extender: 0.47lbs / 0.21kg
    Receiver: 0.25lbs / 0.11kg

  • UPC Code

    814556013465

About KanexPro Extender

FEATURED REVIEWS

VGA Transfer from event to remote

By Russell C.

266 ft of cat 5 from one gym to another.

The KanexPro VGA extender over a single CAT5e/6 cable is designed for routing high-resolution VGA signals and stereo audio over remote distances up to 1,000ft. (300m). Each receiver set features a separate gain and peaking rotary switch used in adjusting brightness and skew over long distances. The 15-pin HD connectors are convenient and cost-effective for all input/ output connections supporting full bandwidth compatible from VGA to WUXGA graphics card resolutions and HDTV's to projectors. In addition, each output performs a separate buffering to maintain signal integrity and reject noise interference.

KanexPro Extender Features

  • Extend high-resolution VGA signal with audio over a single Cat5E/6 cable up to 1,000 feet (300m)
  • Adjust GAIN and PEAK levels to adapt for variable lengths of UTP cable on the receiver
  • Supports maximum resolutions up to WUXGA (1920x1200 at 60Hz)
  • Stereo Audio Input through 3.5mm jack
  • CAT5e/6 Output via RJ-45 Jack
  • Transmitter includes Local VGA Monitor Output w/ 3.5mm jack
  • EDID Compliant
  • Rack or under-desk mountable
  • 5VDC external power supply included

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • KanexPro VGA UTP Extender Transmitter
  • VGA UTP Extender Receiver
  • 2x 5V DC Power Supply
  • Mounting Kit
  • KanexPro 1 Year Parts & Labor Warranty
