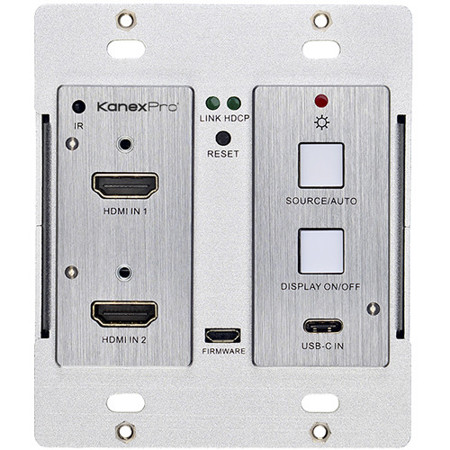

KanexPro WP-2X1HDUSBC Double Gang 4K HDMI 2.0 & USB-C Wall Plate Switcher Over HDBaseT with IR & PoH

A versatile and high-quality solution for your audio-visual needs, the KanexPro WP-2X1HDUSBC is a US Decora style double-gang, 3x1 Wall Plate Transmitter and Switcher. Expertly designed to seamlessly switch between two HDMI 2.0 inputs and one USB-C input, this device is perfect for transmitting to a remote display or projector. With a range of up to 131ft (40m) at 4K/60 and 230ft (70m) at 1080p/60 video and audio, it ensures high-quality transmission over a single Cat5e/6/7 cable.

The outputs are conveniently provided via an HDBaseT port, supporting the full 18 Gbps bandwidth. This reliable wall plate switcher guarantees true 4K video resolutions up to 4/60Hz, and is HDCP 2.2 compliant. It extends 4K up to 40m, delivering a color sampling rate of 4:4:4 for superior image quality.

The user-friendly design includes an "Auto/Source" button on the front panel for easy control. A simple 3-second hold activates the auto-switching mode, which auto-detects HDMI or USB-C inputs when connected. The device also supports CEC, enabling you to turn the display on/off directly from the front panel for the far-end display device.

The switcher can be programmed by IR learning or RS232 command, ensuring compatibility with various display devices. The 12V-24V PoH feature allows the switcher to be powered from a compatible HDBaseT receiver, regulating the power needed without the need for an additional power supply.

Ideal for courtrooms, classrooms, conference rooms, or showrooms, the KanexPro WP-2X1HDUSBC is perfect for extending audio-visual devices from remotely located HDMI/ USB-C source devices. The dual-gang HDMI wall plate can be used anywhere to enhance signal integrity over CAT5e/6 cabling, complete with a powerful ON/OFF display feature. This durable and efficient device is a must-have for any modern audio-visual setup.
