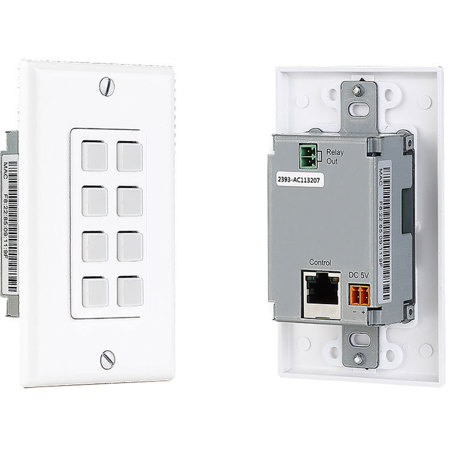

KanexPro Single Gang 8-Button IP-Based Control Keypad with PoE

SKU: KPWPIPKPAD8 MFR: WP-IPKEYPAD8
Earn VIP Reward Points

Key Features

  • Control your smart home with our 8-button IP keypad, offering seamless integration & control.
  • Simplify AV control using this single-gang keypad, perfect for classrooms & conference rooms.
  • Enjoy reliable power over ethernet (PoE) ensuring consistent performance for your keypad system.
  • Customize your experience using button sticker sheets; easily label your frequently used functions.
  • The durable design includes robust ESD protection, ensuring long-lasting & safe keypad operation.
  • Mount flush to any standard wall for a clean install; this keypad enhances any modern space.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$40.99

2 Year

$69.99

3 Year

$109.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

KanexPro IP-Based Control Keypad Specifications

  • Input Ports

    8x Buttons, 1x IP Control (RJ45)

  • Output Port

    1x Relay (2-pin Terminal Block)

  • Power Supply

    5V/2.6A DC (US/EU standards, CE/FCC/UL certified)

  • ESD Protection

    Human Body Model: +/-12kV (Air Discharge)
    +/-8kV (Contact Discharge)

  • Chassis Material

    Plastic, Metal

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    20 - 90% RH (Non-condensing)

  • Power Consumption

    3.3W

  • Dimensions (WxHxD)

    Case Only: 69.9 x 114.3 x 35.5mm (2.75 x 4.50 x 1.40")
    69.9 x 114.3 x 38mm (2.75 x 4.50 x 1.50")

  • Weight

    150g (5.29 oz)

  • UPC Code

    813982021525

About KanexPro IP-Based Control Keypad

Experience the convenience and versatility of the KanexPro WP-IPKEYPAD8, a programmable eight-button, IP-based control keypad. This single gang control keypad is designed to seamlessly integrate with your audio-visual system, offering control over a wide range of devices including DVD players, projectors, and relay-based screens.

Engineered for efficiency, this keypad operates over TCP/IP, enabling it to send commands to any Ethernet or relay trigger controlled device in your AV system. It boasts up to 16 physical macro buttons and an additional 16 software-based macro buttons, providing comprehensive control over your audio and video applications.

The KanexPro WP-IPKEYPAD8 is equipped with vibrant, dimmable LED buttons, offering optimal visibility in all environments. This keypad is powered over Ethernet (PoE), drawing power through the LAN connection when connected to a PoE-enabled network router or switch. A separate power supply is also included for instances where PoE may not be available.

One of the standout features of this control keypad is its integrated clock and calendar-based scheduling system. This allows you to program and recall up to 32 distinct macros, enabling you to control devices within your installation at specific times or on a recurring schedule.

Ideal for smart home control systems, classrooms, conference rooms, or showrooms, the KanexPro WP-IPKEYPAD8 simplifies the control of audio-visual devices with just a click of a button. Please note that an active Internet connection from a switch or router is required for control of Ethernet devices. Additionally, a PoE supporting network switch or hub, or access to a local power outlet, is needed to power the keypad.

KanexPro IP-Based Control Keypad Features

  • US single gang wall plate design with adjustable LED brightness
  • Eight customizable backlit buttons
  • Up to 128 total commands can be stored and used across all macros in the system (up to 16 per macro)
  • Supports relay triggers to control compatible devices
  • Supports time and date macro scheduling (single and recurring)
  • Supports 48 hours of backup power for the internal clock and schedule function to protect against blackouts and temporary power loss
  • Supports customizable daylight savings time settings for scheduling
  • Can be controlled via Keypad, Telnet & WebGUI control
  • PoE -powered over Ethernet or DC power supply
  • TCP/IP Ethernet control for simple set up and programming
  • Built-in WEB GUI provides fast and simple set-up
  • Mini USB port - behind decorator-style wall plate for easy configuration access
  • Sticker labels for buttons included for controller customization
  • Macro capability - Any button can be configured to execute multiple actions through Web based GUI. For instance, the touch of a single button could trigger commands to turn on the display, select the display's input, and trigger a relay
  • Toggle capability - provides additional flexibility by allowing two different sets of commands to be executed with alternating presses of a button
  • Activity LED's to indicate various controller states

Key Features

  • Control your smart home with our 8-button IP keypad, offering seamless integration & control.
  • Simplify AV control using this single-gang keypad, perfect for classrooms & conference rooms.
  • Enjoy reliable power over ethernet (PoE) ensuring consistent performance for your keypad system.
  • Customize your experience using button sticker sheets; easily label your frequently used functions.
  • The durable design includes robust ESD protection, ensuring long-lasting & safe keypad operation.
  • Mount flush to any standard wall for a clean install; this keypad enhances any modern space.

What's in the box:

  • KanexPro Single Gang 8-Button IP-Based Control Keypad with PoE
  • USB Type A to USB Mini-B OTG Connector
  • Terminal Block Connector
  • 2x Button Sticker Sheets
  • 5V/2.6A DC Power Adaptor
  • Operation Manual
  • KanexPro 3 Year Limited Warranty
