Kramer Electronics BC-3X2T7S 328' 14 Conductor Presentation/VGA Bulk Cable, 26AWG

SKU: KR3X2T7S100M MFR: 99-0327100
Earn VIP Reward Points

Key Features

  • Experience superior connectivity with this 328ft Presentation VGA Cable for crystal-clear displays.
  • Ensure optimal signal transfer with our high-quality 14 Conductor VGA Cable, built for durability.
  • This Kramer Electronics VGA Cable supports resolutions up to 180MHz, perfect for sharp visuals.
  • Enjoy reliable connections in presentations using our shielded VGA cable to minimize interference.
  • Customize your setup with this flexible VGA bulk cable, ideal for various audio-visual applications.
  • Built to last, this VGA cable features a robust PVC jacket, ensuring long-term performance and value.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics BC-3X2T7S Specifications

Coax
  • Conductor

    26AWG 7/34 tinned copper

  • Dielectric

    Foam polyethylene with red, green, blue color coding

  • Shield

    (A) 90% spiral 38AWG tinned copper
    (B) Aluminum Mylar foil 25% overlap rate

  • Inner Jacket

    PVC

  • Jacket Color

    Black

Shielded Pair

Jump to...
  • Conductors

    26AWG 7/34 tinned copper

  • Jacket

    HD-polyethylene

  • Shield

    (A) 85% spiral 36AWG tinned copper
    (B) Aluminum Mylar foil 25% overlap rate

  • Diameter

    0.88mm (0.03")

  • Jacket Colors

    White, white/black, red, red/black

Single Strand

Jump to...
  • Conductors

    26AWG 7/34 tinned copper

  • Diameter

    0.88mm (0.03")

  • Jacket

    HD polyethylene

  • Jacket Colors

    Red, orange, brown, yellow, black, red/black

Electrical

Jump to...
  • Impedance

    75 Ohms

  • DC Resistance

    148 Ohms/km (45 Ohms/1000')

  • Capacitance

    57pF/m (17.3pF/ft)

  • Temperature

    -20 to 75 deg. C (-4 to 167 deg. F)

  • Attenuation (dB/30m (100ft))

    -0.5dB at 1MHz
    -1.3dB at 5MHz
    -1.9dB at 10MHz
    -4.0dB at 50MHz
    -5.7dB at 100MHz
    -8.0dB at 180MHz
    -14.0dB at 400MHz

General

Jump to...
  • Outer Jacket

    PVC

  • Outer Jacket Color

    Dark gray with white lettering

  • Regulatory

    UL: CL2
    CSA: C(UL) FT4
    RoHS: In compliance with European directive 2002/95/IEC

  • Dimensions (Dia.)

    Center Conductor: 0.48mm (0.02")
    Dielectric: 1.95mm (0.08")
    Individual Coax: 2.6mm (0.10")
    Outer Diameter: 10mm (0.39")

  • UPC Code

    7291063045395

About Kramer Electronics BC-3X2T7S

Just when you thought your presentation or video application needs couldn't be met, Kramer's BC-3X2T7S 328' 14 Conductor Presentation/VGA Bulk Cable steps in. This high-resolution, multi-conductor cable is a durable and reliable solution for transmitting high-quality video and audio signals.

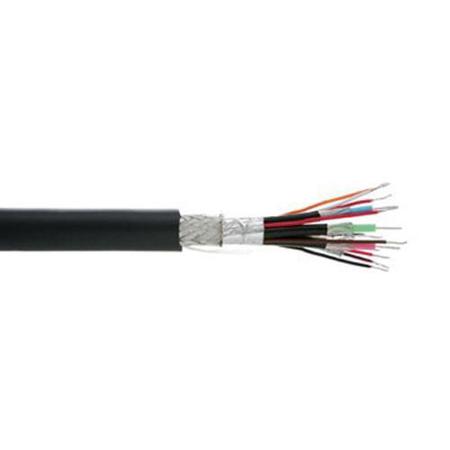

Constructed with 3 mini coaxes, 2 shielded pairs, and 7 single strands, this 26AWG cable is the most popular choice for creating 15-pin HD (VGA/UXGA) cables. Each coax features a 26AWG center conductor and a dual shield design, comprising of a copper braid and aluminum Mylar foil. This design ensures the highest level of signal integrity and reduces the risk of signal degradation over longer distances.

The BC-3X2T7S is not just robust but also flexible, thanks to its rugged jacket with an internal rip cord. This feature makes it easy to install and adapt to various presentation environments. The cable also comes with sequential markings every meter, aiding in accurate measurements and installations.

The coax dielectrics are color-coded in red, green, and blue, simplifying the identification process during setup. This high-quality VGA bulk cable supports higher resolutions and longer distances than its 28AWG counterparts, making it a versatile choice for a wide range of applications.

Whether you're connecting to computers, laptops, or other presentation equipment, the BC-3X2T7S 328' 14 Conductor Presentation/VGA Bulk Cable is the high-quality, durable, and versatile solution you've been searching for.

Kramer Electronics BC-3X2T7S Features

  • High-resolution, multi-conductor VGA bulk cable for top-quality video and audio transmission
  • Durable construction with 3 mini coaxes, 2 shielded pairs, and 7 single strands for long-lasting use
  • Dual shield design featuring copper braid and aluminum Mylar foil for optimal signal integrity
  • Flexible and rugged jacket with internal rip cord for easy installation and adaptability
  • Sequential markings every meter for accurate measurements and installations
  • Supports higher resolutions and longer distances than 28AWG cables for versatile application use

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior connectivity with this 328ft Presentation VGA Cable for crystal-clear displays.
  • Ensure optimal signal transfer with our high-quality 14 Conductor VGA Cable, built for durability.
  • This Kramer Electronics VGA Cable supports resolutions up to 180MHz, perfect for sharp visuals.
  • Enjoy reliable connections in presentations using our shielded VGA cable to minimize interference.
  • Customize your setup with this flexible VGA bulk cable, ideal for various audio-visual applications.
  • Built to last, this VGA cable features a robust PVC jacket, ensuring long-term performance and value.

What's in the box:

  • Kramer Electronics BC-3X2T7S 328' 14 Conductor Presentation/VGA Bulk Cable
  • Kramer Electronics 1 Year Limited Warranty
