Kramer Electronics 673R/T 3G Over Fiber Rceivr/Trnsmitr
See all Kramer Electronics items

Kramer Electronics 673R/T 4-Channel 3G HD-SDI Over Fiber Optic Receiver and Transmitter, 3200ft Range

SKU: KR673RT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics 673R/T Specifications

  • Inputs

    SDI serial video, 75Ohms on BNC connectors

  • Outputs

    1 optical connector

  • Bandwidth

    Up to 3Gbps for each SDI input

  • Range

    1000m (>3200 feet) for 3G HD-SDI

  • Indicators

    VIDEO, SOURCE, FIBER and ON LEDs

  • Power Source

    5V DC, 780mA

  • Dimensions (W x D x H )

    12cm x 7.95cm x 2.76cm (4.7" x 3.1" x 1.08")

  • Weight

    0.3kg (0.67lbs) approx. each

  • UPC Code

    7291063029883

About Kramer Electronics 673R/T

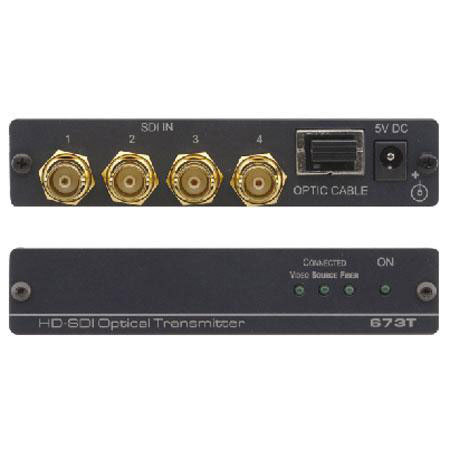

The 673T and 673R are a high-performance fiber optic transmitter and receiver for signals up to 3G HD-SDI and Dual-Link HD-SDI signals. The 673T converts up to four channels of SDI signals on BNC connectors to an optical signal that is transmitted over a single fiber optic cable. The 673R converts the optical signal back to SDI signals.

Kramer Electronics 673R/T Features

  • Max. Data Rate - Up to 3Gbps for each SDI input
  • SDI Inputs/Outputs - 4 channels on BNC connectors
  • HDTV Compatible
  • System Range - 1000m (more than 3200ft)
  • Cable - A single multi-mode OM3 fiber optic cable with SC connectors
  • Multi-Standard Operation - SDI, HD-SDI, 3G HD-SDI and dual link HD-SDI
  • Reclocking and Equalization per Channel
  • Fiber Optic, Source & Input Indication LEDs
  • Compact DigiTOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter
