Kramer Electronics VP-16x18AK 16x18 Computer Graphics Video and Balanced/Unbalanced Stereo Audio Matrix Switcher

SKU: KR6X18AK110V MFR: VP-16X18AK/110V
Earn VIP Reward Points

Key Features

  • Easily manage your professional display systems with this 16x18 video matrix switcher.
  • Enjoy reliable connection for multimedia presentations using balanced stereo audio.
  • This video switcher supports UXGA on 15-pin HD connectors for high resolution output.
  • Take control of audio with volume, bass, and treble adjustments on this switcher.
  • Achieve wide compatibility; this video matrix supports both local and CAT 5 outputs.
  • This affordable price video switcher ensures low latency for seamless transitions.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics VP-16x18AK Specifications

  • Applications

    Professional display systems requiring a true 16x18 computer graphics and audio matrix operation
    Multimedia and presentation source and acceptor selection

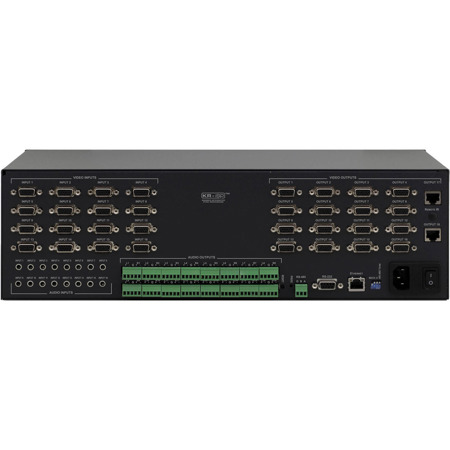

  • Inputs

    16x UXGA on 15-pin HD connectors
    16 unbalanced stereo audio on 3.5mm mini jacks

  • Outputs

    16x UXGA on 15-pin HD connectors
    16x Balanced stereo audio on 5-pin terminal block connectors
    2 TP on RJ-45 connectors

  • Maximum Output Level

    Video: 1.6Vpp
    Audio: 9.6Vpp diff (12.8dBu)

  • Bandwidth

    Video: 420MHz (-3dB)
    Audio: 20kHz (-3dB)

  • Diff. Gain

    0.1% maximum

  • Diff. Phase

    0.05 deg. maximum

  • K-Factor

    Local output: 0.1%

  • S/N Ratio

    Video: 62dB to 5MHz
    Audio: 83dB

  • Crosstalk (All Hostile)

    Video: -35dB at 100MHz
    Audio: -68dB at 1kHz

  • Controls

    Volume: -105 to +30dB
    Bass: -15 to 15dB
    Treble: -20 to +20db

  • Coupling

    Video: Local output: DC
    CAT 5 output: AC
    Audio: Local output: input=AC, output=DC
    CAT 5 output: input=AC, output=AC

  • Audio THD + Noise

    Local output: 0.031% at 1kHz

  • Audio 2nd Harmonic

    Local output: 0.003% at 1kHz

  • Power Consumption

    100-240V AC, 44VA

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Dimensions (WxDxH)

    21.85 x 13.46 x 7.87" (55.50 x 34.19 x 19.99cm)

  • Weight

    12.2 lbs (5.53kg)

  • UPC Code

    7291063050894

About Kramer Electronics VP-16x18AK

Make your audio-visual experience seamless with the VP-16x18AK 16x18 Computer Graphics Video and Balanced/Unbalanced Stereo Audio Matrix Switcher. This high-performance matrix switcher is designed to handle computer graphics video up to UXGA resolution, ensuring crystal-clear visuals for your presentations, video conferences, or multimedia projects.

In addition to its video capabilities, the VP-16x18AK also excels in audio management. It can handle both balanced and unbalanced stereo audio signals, providing you with the flexibility to connect a wide range of audio devices.

The standout feature of this matrix switcher is its ability to simultaneously switch any input to any or all of the 16 computer graphics and two twisted pair outputs. This means you can route multiple video and audio sources to different outputs at the same time, offering unparalleled control over your audio-visual setup.

Whether you're a professional in the broadcasting industry or a tech enthusiast looking to enhance your home theater system, the VP-16x18AK 16x18 Computer Graphics Video and Balanced/Unbalanced Stereo Audio Matrix Switcher is a versatile and reliable solution for managing your audio-visual signals.

Kramer Electronics VP-16x18AK Features

  • High Bandwidth: 420MHz (-3dB)
  • HDTV Compatible
  • Kr-isp Advanced Sync Processing: Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr-isp advanced sync processing can be enabled or disabled
  • Multiple Memory Locations: Stores 12 multiple switches as presets to be recalled and executed when needed
  • Automatic Input Detection: An input lights green when a live connection is detected
  • Delayed Switching Mode: Glitch-free switching of non-genlocked sources by setting the transition time of a switch from 0 to 3.5 seconds
  • Audio Breakaway Switching
  • Audio-Follows-Video: Automatically switches the stereo audio signal with the video signal when switching the active input to the output
  • Audio Level Gain Controls: For unbalanced stereo inputs
  • Convenient Take Button: Executes multiple switches all at once
  • Front Panel Control Lockout
  • EDID Pass-through: Pass-through algorithm ensures Plug and Play operation
  • Flexible Control Options: Front panel buttons, IR remote with transmitter or optional remote extension cable, RS-232 & RS-485, Ethernet with Web browser
  • Standard 19" Rack Mount Size: 5U. Rack "ears" included

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Easily manage your professional display systems with this 16x18 video matrix switcher.
  • Enjoy reliable connection for multimedia presentations using balanced stereo audio.
  • This video switcher supports UXGA on 15-pin HD connectors for high resolution output.
  • Take control of audio with volume, bass, and treble adjustments on this switcher.
  • Achieve wide compatibility; this video matrix supports both local and CAT 5 outputs.
  • This affordable price video switcher ensures low latency for seamless transitions.

What's in the box:

  • Kramer Electronics VP-16x18AK 16x18 Computer Graphics Video and Balanced/Unbalanced Stereo Audio Matrix Switcher
  • Power Cord
  • Rack Ears
  • RC-IR3 Remote Control
  • User Manual
  • Kramer Electronics 7 Year Limited Warranty
