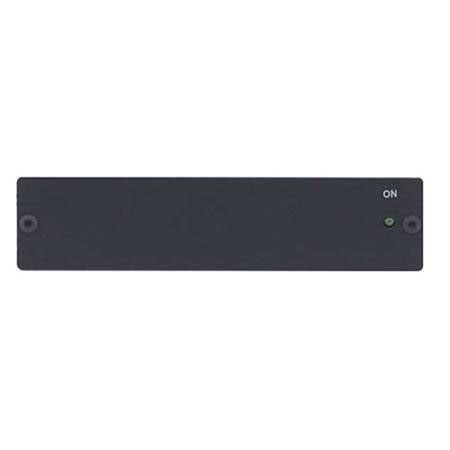

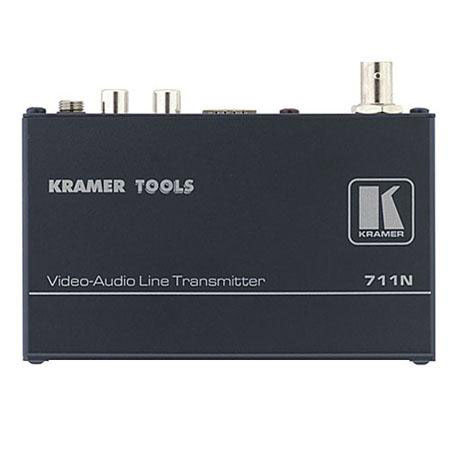

Kramer Electronics 711N Composite Video and Stereo Audio Over Twisted Pair Transmitter

SKU: KR711N MFR: 711N
$196.00
$245.00
Save: $49 (20%)
Earn VIP Reward Points

Key Features

  • Extend composite video and stereo audio signals using twisted pair cable.
  • Achieve high-quality video transmission with a wide 85MHz video bandwidth.
  • Enjoy clear audio with minimal noise, thanks to a 77dB audio S/N ratio.
  • Minimize signal loss with low differential gain and phase specifications.
  • Easily integrate this compact transmitter into existing AV setups.
  • Ensure stable video signal over long distances with twisted pair technology.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$17.99

3 Year

$27.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?DARIN W : Need

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics 711N Specifications

  • Input

    1 composite video 1Vpp/75Ohms, on a BNC connector; 1 stereo unbalanced audio 4dBu/50kOhms, on two RCA connectors

  • Output

    1 RJ-45 CAT 5 shielded connector (LINE OUT)

  • Video Max. Signal Level

    2.8Vpp

  • Audio Max. Signal Level

    7.6Vpp

  • Video Bandwidth (-3dB)

    85MHz

  • Audio Bandwidth (-3dB)

    > 100kHz

  • Diff. Gain

    0.04%

  • Diff. Phase

    0.25Deg

  • K-Factor

    0.1%

  • Video S/N Ratio

    75dB

  • Audio S/N Ratio

    77dB

  • Audio Crosstalk (All Hostile)

    -53dB @ 5MHz, video into audio

  • Video Coupling

    DC

  • Audio Coupling

    Input: AC; line output: DC

  • Audio THD + Noise

    0.026%, 1kHz

  • Audio 2nd Harmonic

    0.001% @ 1kHz

  • Power Source

    12V DC 50mA, when 712N (receiver) is fed by an independent 12V supply; 135mA when feeding 712N

  • Dimensions (W x D x H)

    12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08")

  • Weight

    0.3kg (0.67lbs) approx. (each)

About Kramer Electronics 711N

The 711N Composite Video & Stereo Audio over Twisted Pair (Transmitter) from Comprehensive/Kramer is the transmitter unit of a paired kit that is designed for sending composite video and unbalanced stereo audio signals over twisted-pair cable. The unit accepts a composite video and stereo audio signal, then converts it to a twisted-pair signal and outputs it to the receiver. This solution is well suited for use in educational institutions, broadcast studios and medical facilities, among many other potential uses.

Other features include a looping input, selectable input signal termination, level (gain) & EQ (peaking) controls and bandwidth of 85MHz. It offers a general working range of up to 1200', although greater distances may be achieved dependent up on signal resolution and cable type. This device is designed to work with unshielded twisted-pair cable such as CAT5.

This product features Kramer's Power Connect technology, meaning that only one device in the system needs to be connected to an electrical source to power all system units (all units in the system must feature Power Connect technology to use this feature). This unit belongs to the Kramer TOOLS family of products and (3) units can be mounted side by side in 1U of a standard equipment rack by using the separately available RK-3T rack kit.

Kramer Electronics 711N Features

  • Composite Video & Stereo Audio over Twisted-Pair Cable: This unit is part of a paired system designed to transport a composite video and unbalanced stereo audio signal over twisted-pair cable
  • Bandwidth: The solution supports data throughput of up to 85MHz
  • Range: The kit offers a range of up to 1200'
  • Power: This unit can be powered with the included power supply or via another unit in a larger system that features Power Connect technology and is connected to a power source
  • Standalone or Rackmount: Use this unit as a standalone solution or place it in your rack by using a separately available rack kit

Warranty Information

This product has a limited warranty of 84 months.

Product Documents

User Manual

Key Features

  • Extend composite video and stereo audio signals using twisted pair cable.
  • Achieve high-quality video transmission with a wide 85MHz video bandwidth.
  • Enjoy clear audio with minimal noise, thanks to a 77dB audio S/N ratio.
  • Minimize signal loss with low differential gain and phase specifications.
  • Easily integrate this compact transmitter into existing AV setups.
  • Ensure stable video signal over long distances with twisted pair technology.

What's in the box:

  • Kramer Electronics 711N Composite Video and Stereo Audio Over Twisted Pair Transmitter
  • Power Supply
  • Mounting Bracket
  • Kramer Electronics 7 Year Limited Warranty
