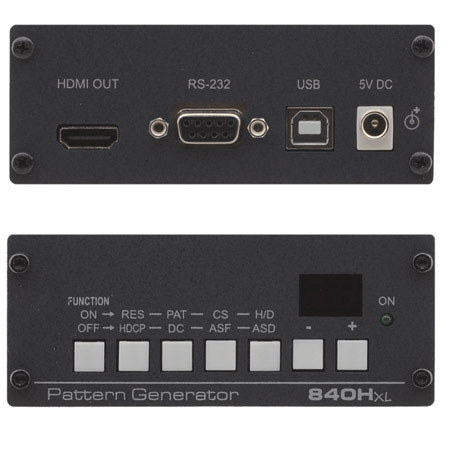

Kramer Electronics Kramer 840HXL HDMI Video Test Pattern Generator, 32 Patterns
See all Kramer Electronics items

Kramer Electronics 840HXL HDMI Video Test Pattern Generator, 32 Patterns

SKU: KR840HXL
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics 840HXL Specifications

  • Outputs

    1 HDMI connector.

  • Output Resolutions 1

    VGA 640 x 480 at 60Hz, 720 x 480 at 60Hz, SVGA 800 x 600 at 60Hz, XGA 1024 x 768 at 60Hz, 1280 x 720 at 60Hz, 1360 x 768 at 60Hz, 1440 x 900 at 60Hz, SXGA+ 1400 x 1050 at 60Hz, SXGA 1280 x 1024 at 60Hz, WSXGA+ 1680 x 1050 at 60Hz, SXGA 1280 x 1024 at 75Hz, HD 1080 1920 x 1080 at 60Hz, WUXGA 1920 x 1200 at 60Hz, UXGA 1600 x 1200 at 60Hz, 720 x 480i at 60Hz, HD 1080 1920 x 1080i at 60Hz

  • Output Resolutions 2

    720 x 480 at 120Hz, 720 x 480 at 240Hz, 720 x 576 at 50Hz, 720 x 576 at 100Hz, 720 x 576 at 200Hz, 1440 x 576 at 50Hz, 1440 x 576i at 50Hz, 1280 x 720 at 50Hz, 1280 x 720 at 60Hz, 1280 x 720 at 100Hz, 1280 x 720 at 120Hz, 1440 x 288 at 50Hz, 1440 x 480 at 60Hz, 2880 x 240 at 60Hz, 2880 x 288 at 50Hz, 2880 x 480 at 60Hz, 2880 x 480i at 60Hz,

  • Output Resolutions 3

    2880 x 576 at 50Hz, 2880 x 576i at 50Hz, 1920 x 1080 at 25Hz, 1920 x 1080 at 30Hz, 1920 x 1080 at 50Hz, 1920 x 1080i at 50Hz, 1920 x 1080 at 60Hz, 1920 x 1080i at 60Hz, 1920 x 1080i at 100Hz, 1920 x 1080i at 120Hz, 2K 2048 x 1080 at 50Hz, 2K 2048 x 1080 at 60Hz

  • Control

    Five dual-function and two single function front panel buttons, remote control via USB or RS-232 on a 9-pin D-sub connector.

  • Power Consumption

    5V DC, 460mA.

  • Operating Temperature

    0deg. to +40deg.C (32deg. to 104deg.F).

  • Storage Temperature

    -40deg. to +70deg.C (-40deg. to 158deg.F).

  • Humidity

    10% to 90%, RHL non-condensing.

  • Dimensions (W x D x H)

    10.7 x 10.0 x 4.4cm (4.2" x 3.9" x 1.7")

  • Weight

    0.4kg (0.88lbs) approx.

About Kramer Electronics 840HXL

The Kramer Electronics 840HXL is a high performance HDMI video test pattern generator. It generates 32 preset patterns at 16 popular computer, HD and seven user-defined resolutions. It includes several unique patterns that incorporate motion.

Kramer Electronics 840HXL Features

  • Patterns - 32
  • Output Resolutions - All common PC and HDTV resolutions
  • Color Space - RGB, YUV 444, YUV 442 & auto
  • Embedded Audio - 6 sample rates & 3 bit depths
  • HDTV Compatible
  • Controls - HDCP On/Off, Embedded Audio On/Off
  • Indicators - 2-digit display, power LED
  • Control - USB and RS-232 ports for connecting to a controlling PC (PC control software included)
  • Compact MultiTOOLS - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 universal rack adapter

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Patterns - 32
  • Color Space - RGB, YUV 444, YUV 442 & auto
  • Embedded Audio - 6 sample rates & 3 bit depths
  • HDTV Compatible
  • Controls - HDCP On/Off, Embedded Audio On/Off
  • Indicators - 2-digit display, power LED

What's in the box:

  • Kramer Electronics 840HXL HDMI Video Test Pattern Generator
  • Power Supply
  • Kramer Electronics 7 Years Limited Warranty
