Kramer Electronics 850 DisplayPort Video Test Pattern Generator, 32 Patterns
See all Kramer Electronics items

Kramer Electronics 850 DisplayPort Video Test Pattern Generator, 32 Patterns

SKU: KR850

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics 850 DisplayPort Video Test Pattern Generator, 32 Patterns Specifications

  • Outputs

    1 DisplayPort connector

  • Control

    5 dual-function and 2 single-function front panel buttons, remote control via USB on a USB connector and RS-232 on a 9-pin D-sub connector

  • Power Source

    5V DC, 670mA

  • Operating Temperature

    0deg. to +40deg.C (32deg. to 104deg.F)

  • Storage Temperature

    -40deg. to +70deg.C (-40deg. to 158deg.F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Dimensions (W x D x H)

    10.7 x 10.0 x 4.4cm (4.2 x 3.9 x 1.7")

  • Weight

    0.4kg (0.88lbs) approx.

About Kramer Electronics 850 DisplayPort Video Test Pattern Generator, 32 Patterns

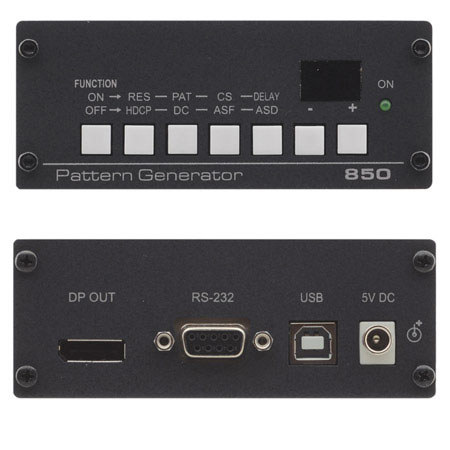

The Kramer Electronics 850 is a high performance DisplayPort video test pattern generator. It can generate 32 preset patterns at 16 popular, predefined computer and HD video resolutions and seven user-defined resolutions, including several unique patterns incorporating motion.

Kramer Electronics 850 DisplayPort Video Test Pattern Generator, 32 Patterns Features

  • Patterns - 32
  • Output Resolutions - All common PC and HDTV resolutions
  • Control - USB and RS-232 ports for connecting to a controlling PC
  • Indicators - 2-digit display, power LED
  • Compact MultiTOOLS - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 universal rack adapter

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Patterns - 32
  • Indicators - 2-digit display, power LED

What's in the box:

  • Kramer Electronics DisplayPort Video Test Pattern Generator
  • Power Supply
  • Kramer Electronics 7 Years Limited Warranty
