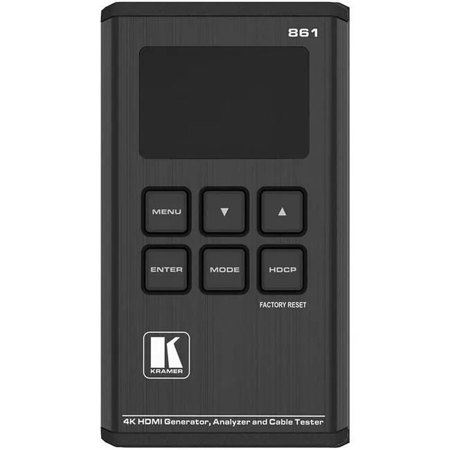

Kramer Electronics 861 18G 4K HDR Pocket Signal Generator/Analyzer/Cable Tester
See all Kramer Electronics items

Kramer Electronics 861 18G 4K HDR Pocket Signal Generator/Analyzer and Cable Tester

SKU: KR861HXL
Be the first to review this item

This item is no longer available.

Recommended Alternatives

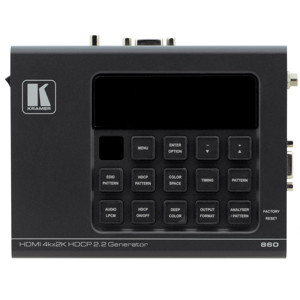

Kramer Electronics Generator/Analyzer: Picture 1 regular
Kramer Electronics 860 18G 4K HDR Signal Generator & Analyzer
$2,355.00$1,884.00
Kramer Electronics : Picture 1 regular
Kramer Electronics 861 18G 4K HDR Pocket Signal Generator/Analyzer/Cable Tester
$828.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution support of the 861 18G 4K HDR Pocket Signal Generator, Analyzer, and Cable Tester?

This device supports up to 4K at 60Hz (4:4:4) resolution within your HDMI 2.0/HDCP 2.2 ecosystem.

What are the testing options provided by this device?

The 861 18G 4K HDR Pocket Signal Generator, Analyzer, and Cable Tester offers 23 built-in resolutions, 11 test patterns, and over a dozen types of AV analysis functions.

Does the device support audio testing?

Yes, it can generate up to 8 channels of LPCM audio test tones with a wide range of frequencies and audio levels.

Is the 861 18G 4K HDR Pocket Signal Generator, Analyzer, and Cable Tester portable?

Yes, this device is portable and comes with a high-quality belt pouch for easy transportation.

What kind of battery does the device use?

The device is powered by a Li-Ion battery that operates for over 5 hours before needing to be recharged.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics 861 18G 4K HDR Pocket Signal Generator/Analyzer/Cable Tester Specifications

  • Inputs

    1 HDMI: On a female HDMI connector

  • Outputs

    1 HDMI: On a female HDMI connector

  • Ports

    1 USB: On a female Micro-B connector

  • Video

    Max Data Rate: 18Gbps (6Gbps per graphic channel)
    Max Resolution: 4K UHD at 60Hz (4:4:4, 8-bit)
    Supported Output Resolutions: 480p at 59Hz, 576p at 50, 720p at 25/30/50/60, 1080i at 50/60, 1080p at 24/25/30/50/60, 4K(3840x2160p) at 24/25/30/50/60, 4K(4096x2160p) at 24/25/30/50/60
    Standards Compliance: HDMI 2.0 and HDCP 1.4, 2.2

  • Audio (embedded) Output Support

    LPCM 2.0, 5.1 and 7.1

  • Power

    Source: 5V, 2.1A USB Power
    Consumption: 4.7W

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Humidity

    20% to 90%, RH non-condensing

  • Safety

    CE, FCC

  • Environmental

    RoHs, WEEE

  • ESD Protection

    Human body model - +/-12kV (Air Discharge), +/-8kV (Contact Discharge)

  • Enclosure Type

    Metal

  • Cooling

    Convection Ventilation

  • Dimensions (WxDxH)

    8.00 x 14.00 x 2.70cm (3.15 x 5.51 x 1.06")

  • Weight

    0.3kg (0.66 lbs) (Approx.)

About Kramer Electronics 861 18G 4K HDR Pocket Signal Generator/Analyzer/Cable Tester

861 HDMI 18G (6G per graphic channel) 4K HDR Pocket Signal Generator, Analyzer and Cable Tester is an advanced and handy tool for generating, testing and verifying the signal path within your (up to) 4K at 60Hz (4:4:4) HDMI 2.0/HDCP 2.2 ecosystem. With 23 built-in resolutions, 11 test patterns and over a dozen types of AV analysis functions, this unit provides an enormous range of testing options. HDMI data packet, EDID and HDCP analysis are supported along with EDID upload and emulation.

Additionally, the Status and Control Data Channel (SCDC) can be monitored, enabling HDMI 18G signal detection and analysis. Up to 8 channels of LPCM audio test tones can be generated with a wide range of frequencies and audio levels. 861 is portable and durable, it includes a high-quality belt pouch and runs on a Li-Ion battery that operates for over 5 hours before needing to be recharged.

Kramer Electronics 861 18G 4K HDR Pocket Signal Generator/Analyzer/Cable Tester Features

  • Max. Resolution 4K at 60Hz (4:4:4)
  • Standards Compliance - HDR10, HDMI 2.0, DVI 1.0 and HDCP 1.4/2.2
  • Data Path Analysis - Source and sink up to 18G HDMI signals (6G per graphic channel)
  • HDMI Data Packet Analysis
  • HDCP v1.4 and v2.2 Analysis & Control
  • EDID Data Analysis & Emulation - Including SCDC
  • HDR Bypass & Analysis Support
  • HDMI Timing Generation - Up to 4096x2160 at 60Hz (4:4:4), 8-bit
  • Supported Output Resolutions - 480p, 576p, 720p at 25/30/50/60, 1080i at 50/60, 1080p at 24/25/30/50/60, 4K(3840x2160p) at 24/25/30/50/60, 4K(4096x2160p) at 24/25/30/50/60
  • LPCM Sinewave Audio Generation - Up to 8 channels
  • Cable Tester Suitable for 4K HDMI cables. Includes tests for 5V, CEC and hotplug detection support
  • OLED Display - With rapid updates of current status information
  • Detailed OSD - For settings and informational displays
  • USB Firmware Update
  • Portable and Durable
  • Includes a >=5 Hour (typical) Operating Life Li-Ion Battery
  • Power Saving Features

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Kramer Electronics 861 18G 4K HDR Pocket Signal Generator/Analyzer and Cable Tester
  • Micro-B USB Cable
  • C-HM/HM/PICO/BK-3 Cable
  • Lithium-Ion 3.6V/3200maH Rechargeable Battery
  • Belt Pouch
  • Kramer Electronics 7 Year Limited Warranty
