Kramer Electronics Kramer 907xl Stereo Audio Power Amplifier/Mixer
See all Kramer Electronics items

Kramer Electronics 907xl Stereo Audio Power Amplifier/Mixer, 40W Per Channel, Input Volume Controls & Mute,

SKU: KR907XL

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics 907XL Specifications

  • Inputs

    1 balanced stereo audio on a terminal block connector, 1 unbalanced stereo audio on RCA connectors

  • Output

    Speaker output on a terminal block connector

  • Output Power

    40W per channel into 8 Ohms

  • Output Music Power

    150W per channel into 8 Ohms

  • Input Sensitivity

    1.2Vrms

  • Amplifier Type

    Class D

  • Voltage Gain

    36dB (x10)

  • Bandwidth (-3dB)

    25kHz

  • S/N Ratio

    66dB

  • Coupling

    Inputs: AC, Outputs: DC

  • Audio THD + Noise

    1.2%

  • Audio 2nd Harmonic

    1%

  • Power Consumption

    24V DC, 2.2A

  • Controls

    2 gain DIP-switches, mute button, 2 input level knobs, 1 volume knob

  • Operating Temperature

    0deg. to +40deg.C (32deg. to 104deg.F)

  • Storage Temperature

    -40deg. to +70deg.C (-40deg. to 158deg.F).

  • Humidity

    10% to 90%, RHL non-condensing

  • Dimensions

    10.7 x 10.4 x 4.0 cm / 4.21 x 4.09 x 1.57"

  • Weight

    0.32 kg / 0.70 lbs

About Kramer Electronics 907XL

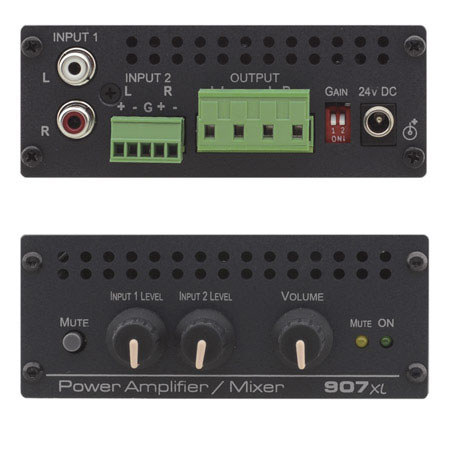

The Kramer Electronics 907xl is a high-performance power amplifier for line-level stereo audio signals. It accepts a balanced stereo audio signal on a terminal block connector and an unbalanced stereo signal on RCA connectors. It delivers 40 watts per channel into an 8 Ohms load.

Kramer Electronics 907XL Features

  • High Efficiency - Class D operation
  • Controls - 1 volume control knob for each input & mute button
  • Gain Control DIP-Switches
  • Mute and On Indicator LEDs
  • Compact MultiTools - Up to 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 universal rack adapter

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High Efficiency - Class D operation
  • Gain Control DIP-Switches
  • Mute and On Indicator LEDs

What's in the box:

  • Kramer Electronics 907xl Stereo Audio Power Amplifier/Mixer
  • Power Supply
  • Kramer Electronics 7 Years Limited Warranty
