Kramer Electronics 1000' 2-Conductor Twisted-Pair Speaker Bulk Cable, 14AWG Specifications

  • Conductors

    2

  • AWG

    14

  • Stranding

    19 x 27

  • Conductor Material

    Bare copper

  • Insulation

    Polypropylene

  • Insulation Wall Thickness

    0.011" (0.03cm)

  • Outer Shield Material

    Unshielded

  • Outer Jacket Material

    Polyvinyl chloride (PVC)

  • Outer Jacket Wall Thickness

    0.017" (0.04cm)

  • Outer Jacket Ripcord

    Yes

  • Nom Inductance

    0.15 MuH/ft

  • Nom Capacitance Conductor to Conductor

    22.000 pF/ft

  • Nom Conductor DC Resistance

    2.53 Ohms / 1000' at 20 deg. C

  • Max Operating Voltage (UL)

    300 V RMS

  • Max Recommended Current

    8 A per conductor at 25 deg. C ambient

  • Overall Nominal Diameter

    0.23" (0.58cm)

  • Overall Cabling Lay Length & Direction

    4.0" lay length, 3 twists/ft

  • Operating Temperature Range

    -4 to 167 deg. F (-20 to 75 deg. C)

  • UL Temperature Rating

    167 deg. F (75 deg. C)

  • Max Recommended Pulling Tension

    95 lbs (43.09kg)

  • Min Bend Radius / Minor Axis

    2.25" (5.72cm)

  • Cable Length

    1000' (304.80m)

  • Weight

    37 lbs (16.78kg)

  • UPC Code

    7291063072186

About Kramer Electronics 1000' 2-Conductor Twisted-Pair Speaker Bulk Cable, 14AWG

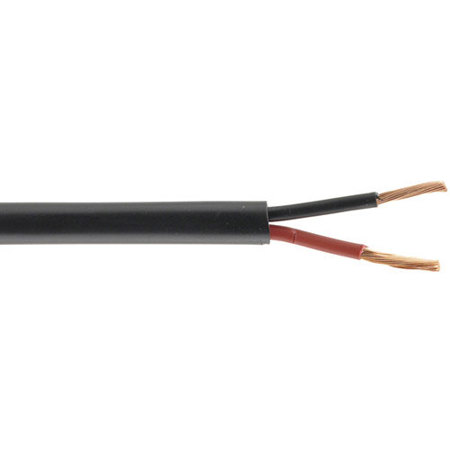

Kramer's BC-2S14 is a high-quality 14AWG twisted pair cable designed for connecting speakers and amplifiers in security, commercial or residential AV systems.

Quality Construction
Rugged and flexible jacket.

High Performance
Use anywhere an unshielded stranded 14AWG pair is suitable.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Kramer Electronics 1000' 2-Conductor Twisted-Pair Speaker Bulk Cable
  • Kramer Electronics 7 Year Limited Warranty
