20% Off

Kramer Electronics 984' 5-Conductor Mini Coax High-Resolution Bulk Cable, 28AWG

SKU: KRBC5X300M MFR: 99-0500300
Earn VIP Reward Points

Key Features

  • Experience superior signal quality with this high-resolution mini coax cable.
  • This 984' 5-Conductor cable supports various video and data transmission needs.
  • Ensure reliable connections for your audio visual setup with our coax cables.
  • Enjoy long-lasting performance thanks to the durable shielding of this cable.
  • Perfect for professional installations, this cable offers excellent conductivity.
  • Built to last, this Kramer Electronics cable offers optimal signal transfer.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics 984' 5-Conductor Mini Coax High-Resolution Bulk Cable, 28AWG Specifications

Conductors

Conductors

Jump to...
  • Size

    5x 28AWG

  • Material

    Tinned copper

  • Diameter

    0.37mm (0.01")

Insulation

Jump to...
  • Material

    FOAM-PE

  • Diameter

    1.6+/-0.09

  • Thickness

    0.64mm

  • Color Code

    Yellow, Blue, Green, Red and Black

Screening

Jump to...
  • Type

    Braid

  • Material

    Tinned copper

  • Coverage

    0.9

Inner - Jacket

Jump to...
  • Material

    PVC

  • Diameter

    2.75mm (0.11")

  • Color Code

    Yellow, Blue, Green, Red, Black

Overall Screening

Jump to...
  • Material

    Tissue paper

  • Overlap

    0.25

  • Material

    PVC

  • Diameter

    9.2mm (0.36") +/-0.25mm

  • Thickness

    0.76mm

  • Color

    Dark gray

Electrical

Jump to...
  • Voltage Rating

    30V

  • Temperature Rating

    80 deg. C (176 deg. F)

  • Insulation Resistance

    DC-500V 100M Ohms/km min. at 20 deg. C

  • Conductor Resistance

    28AWG - 237 Ohms/km max. at 20 deg. C

  • Impedance

    75 Ohms +/-5 Ohms

  • Velocity of Propagation (NVP)

    0.78

  • Capacitance (each coax cable)

    56pF/M at 1KHz

Attenuation

Jump to...
  • Attenuation (DB/100')

    0.6dB at 1MHz
    1.2dB at 3.6MHz
    1.4dB at 5MHz
    1.7dB at 7MHz
    2dB at 9MHz
    2.1dB at 10MHz
    3.8dB at 30.0MHz
    5.1dB at 50.0MHz
    7.6dB at 100MHz

Standards Compliance

Jump to...
  • UL

    CL2

  • CSA

    FT4

  • RoHS

    2011/65/EU

General

Jump to...
  • Cable Length

    984' (299.93m)

  • UPC Code

    7291063045555

About Kramer Electronics 984' 5-Conductor Mini Coax High-Resolution Bulk Cable, 28AWG

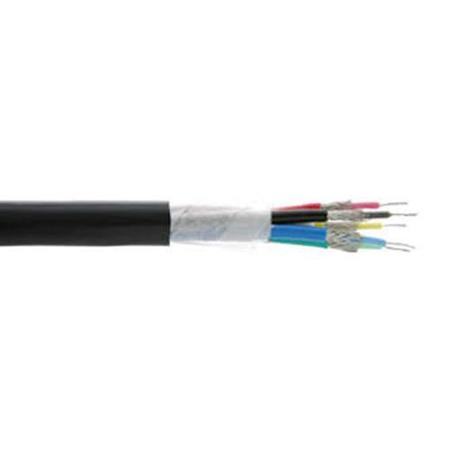

From professional audio-visual setups to residential entertainment systems, Kramer's BC-5X stands as a superior choice for transmitting high-resolution RGBHV signals. This 984-foot 5-Conductor Mini Coax High-Resolution Bulk Cable, with its 28AWG center conductor, ensures seamless data transmission with minimal signal loss.

Constructed with precision, each mini-coaxial cable within the bundle boasts a robust copper braid shield. This feature not only enhances signal integrity but also provides an additional layer of protection against external interference. The 75 Ohms impedance further optimizes the signal quality, making this cable ideal for high-resolution applications.

To facilitate easy identification during installation or troubleshooting, each coax jacket is color-coded. The vibrant hues of red, green, blue, yellow, and black distinguish each cable, simplifying your setup process.

The BC-5X cable is not just about performance; it's also designed for durability and ease of use. Its rugged yet flexible jacket can withstand the rigors of regular use, while the internal rip cord allows for easy stripping when necessary. Additionally, sequential markings every meter aid in accurate measurements and cuts, reducing waste and ensuring efficient use of the cable length.

Finally, the BC-5X showcases universal compatibility. It works seamlessly with Kramer's compression connectors and is also compatible with typical crimp systems, offering flexibility and convenience in various AV system configurations.

In summary, the Kramer BC-5X 5-Conductor Mini Coax High-Resolution Bulk Cable is an exceptional choice for those seeking reliable, high-quality signal transmission in any AV environment.

Kramer Electronics 984' 5-Conductor Mini Coax High-Resolution Bulk Cable, 28AWG Features

  • High-resolution 5-Conductor Mini Coax Bulk Cable, optimal for RGBHV signal transmission
  • Durable construction with 28AWG center conductor and robust copper braid shield
  • Color-coded coax jackets in red, green, blue, yellow, and black for easy identification
  • Rugged yet flexible jacket with internal rip cord for easy stripping
  • Sequential meter markings for accurate measurements and efficient cable usage
  • Universally compatible with Kramer's compression connectors and typical crimp systems

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Experience superior signal quality with this high-resolution mini coax cable.
  • This 984' 5-Conductor cable supports various video and data transmission needs.
  • Ensure reliable connections for your audio visual setup with our coax cables.
  • Enjoy long-lasting performance thanks to the durable shielding of this cable.
  • Perfect for professional installations, this cable offers excellent conductivity.
  • Built to last, this Kramer Electronics cable offers optimal signal transfer.

What's in the box:

  • Kramer Electronics 984' 5-Conductor Mini Coax High-Resolution Bulk Cable
  • Kramer Electronics 7 Year Limited Warranty
