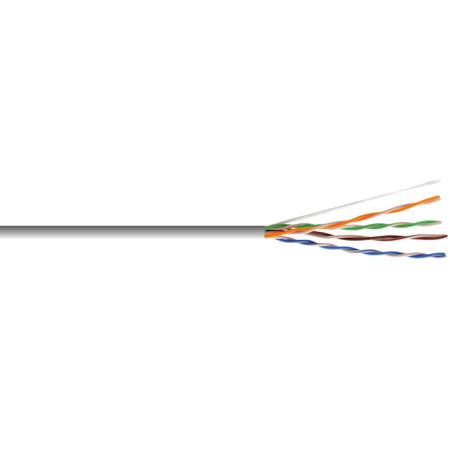

Kramer Electronics BCLS-11 Cat 5e U/UTP 24AWG 350MHz Low-Smoke/Zero-Halogen Bulk Cable, 1000', Gray

SKU: KRBCLS11GY3 MFR: 99-45100305
$190.40
$238.00
Save: $47.6 (20%)
Earn VIP Reward Points

Key Features

  • Ensure reliable network connections with this 1000ft Cat5e Ethernet cable.
  • Experience superior data transmission with our 350MHz network cable.
  • This low-smoke, zero-halogen (LSZH) Ethernet cable enhances safety.
  • Perfect for creating custom-length Ethernet patch cables for your home.
  • Our durable Cat5e cable supports Gigabit Ethernet for fast data transfer.
  • Use this high-quality Kramer Ethernet cable for professional installations.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$34.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics BCLS-11 Specifications

General

General

Jump to...
  • Color

    Gray

  • Length

    1000' (305m)

Construction

Jump to...
  • Conductor

    4 pairs of 24AWG solid bare copper

  • Insulation

    Polyolefin (PO), blue & white/blue stripe, orange & white/orange stripe, green & white/green stripe, brown & white/brown stripe

  • Twist

    Conductors: left hand
    assembly: left hand

  • Rip Cord

    Polyester multi-yarn

  • Jacket

    Low smoke zero halogen (LSZH), gray (Pantone 427C)

Diameters

Jump to...
  • Jacket

    Diameter: 4.9 +/-0.2mm, thickness: 0.50 +/-0.05mm

  • Conductors

    0.034" (0.87mm) +/- 0.001" (0.02mm)

Electrical

Jump to...
  • Temperature & Voltage Rating

    60 Degree C @300V

  • Spark Test

    2.5kV DC

  • AC Leakage Current

    <=10mA (1.5kV AC) through overall jacket

  • Coupling Attenuation

    <=55dB @30MHz, <=55dB @100MHz

  • Coupling Attenuation

    <=55dB @30MHz, <=55dB @100MHz

  • Conductor DC Resistance

    <=9.38Ohm /100m

  • Resistance Unbalance

    <=5%

  • Dielectric Strength

    1.5kV AC for 2sec

  • Insulation Resistance

    >=5000MOhm /m

  • Mutual Capacitance

    <=5.6nF /100m

  • Capacitance Unbalance

    <=330pF /100m pair-to-ground

  • Characteristic Impedance

    100 +/-15Ohm @1-100MHz

Usage & Environmental

Jump to...
  • Cable Cold Bend

    -20 Degree C for 4hr

  • Insulation Tensile Strength

    2400 PSI min. (1.69kg/sq. m)

  • NVP

    71%

  • Temperature Range

    Storage & shipping: -4 Degree to 140 Degree F (- 20 Degree C to 60 Degree C)
    Installation: 32 Degree to 140 Degree F (- 0 Degree C to 60 Degree C)
    Operation: -4 Degree to 140 Degree F (- 20 Degree C to 60 Degree C)

  • Minimum Bending Radius

    >=4 times of overall diameter

  • Maximum Pulling Tension

    <=110N

Regulatory Performance

Jump to...
  • ANSI/TIA-568-C.2 (2009)

    Balanced Twisted-Pair Telecommunications Cabling and Components Standards

  • ISO/IEC 11801 (Edition 2.2)

    Information technology - Generic cabling for customer premises

  • IEC 61156-5 (Edition 2.0)

    Multicore and symmetrical pair/quad cables for digital communications - Part 5: Symmetrical pair/quad cables with transmission characteristics up to 1000 MHz - Horizontal floor wiring - Sectional specification

  • EN 50288-3-1 2013

    Multi-element metallic cables used in analogue and digital communication and control sectional specification for unscreened cables characterized up to 100 MHz. horizontal and building backbone cables

Regulatory Safety

Jump to...
  • EN 50173-1 2011

    Information technology - Generic cabling systems - Part 1: General requirements

  • IEC 60332-1-2

    Tests on electric and optical fiber cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame

  • IEC 61034-1 / 61034-2

    Measurement of smoke density of cables burning under defined conditions

  • IEC 60754-2

    Test on gases evolved during combustion of materials from cables

  • UPC Code

    7291063073343

About Kramer Electronics BCLS-11

Where high-performance and reliability are paramount, the Kramer BCLS-11 Cat 5e U/UTP 24AWG 350MHz Low-Smoke/Zero-Halogen Bulk Cable stands out as a superior choice. This durable, high-quality cable is specifically designed for advanced IT, LAN, and Ethernet installations, ensuring seamless connectivity for your networking needs.

Constructed with four pairs of 24AWG solid bare copper conductors, this cable is encased in a Low-Smoke/Zero-Halogen (LSZH) jacket, enhancing its safety profile. An internal rip cord and sequential markings every meter further enhance its user-friendly design, making installation and measurement a breeze.

Packaged in a Reelex II carton, this 1000ft (305 meters) gray bulk cable is easy to pull out, ensuring a hassle-free setup. It's not just about convenience, though. The BCLS-11 exceeds CAT 5E specifications, providing additional performance and bandwidth beyond the basic standard. This makes it an affordable yet high-quality solution for structured cabling for horizontal and building backbone cable applications.

Whether you're setting up IEEE 802.3u 100BASE-T and legacy speeds, CDDI/ATM/Token Ring, or IEEE 802.3af (PoE) / IEEE 802.3at (PoE+), the Kramer BCLS-11 Cat 5e U/UTP 24AWG 350MHz Low-Smoke/Zero-Halogen Bulk Cable is a reliable and flexible choice. Trust in the reputation of Kramer Electronics, a brand known for its commitment to professional audio and video equipment, to deliver a product that meets your networking needs.

Kramer Electronics BCLS-11 Features

  • High-Performance Transmission
  • High-Quality Safety Properties
  • Sweep Frequency up to 350 MHz
  • Length - Available in Reelex II Cartons of 305m (1000')
  • 24AWG solid bare copper
  • LSZH
  • With rip cord

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Ensure reliable network connections with this 1000ft Cat5e Ethernet cable.
  • Experience superior data transmission with our 350MHz network cable.
  • This low-smoke, zero-halogen (LSZH) Ethernet cable enhances safety.
  • Perfect for creating custom-length Ethernet patch cables for your home.
  • Our durable Cat5e cable supports Gigabit Ethernet for fast data transfer.
  • Use this high-quality Kramer Ethernet cable for professional installations.

What's in the box:

  • BCLS-11 Cat 5e U/UTP 24AWG 350MHz Low-Smoke/Zero-Halogen Bulk Cable (1000'/Gray)
  • Kramer Electronics 7 Year Limited Warranty
