Kramer Electronics BCLS-23 1640' Cat 6 F/UTP Low-Smoke/Zero-Halogen Bulk Cable with Metal-Foil Screen, 23 AWG, Green

SKU: KRBCLS23GR5 MFR: 99-46300500
Earn VIP Reward Points

Key Features

  • Ensure reliable network connections with this 1640' Cat6 Ethernet cable.
  • Experience fast data transfer with this shielded Cat6 cable, ideal for high-speed networks.
  • Built to last: Durable Ethernet cable with LSZH jacket for safe, long-term use.
  • This green Cat6 cable is perfect for custom installations, offering flexibility and performance.
  • Minimize interference: F/UTP design reduces crosstalk for a cleaner network signal.
  • Enjoy peace of mind with our 7-year warranty on this high-quality Kramer Ethernet cable.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics BCLS-23 Specifications

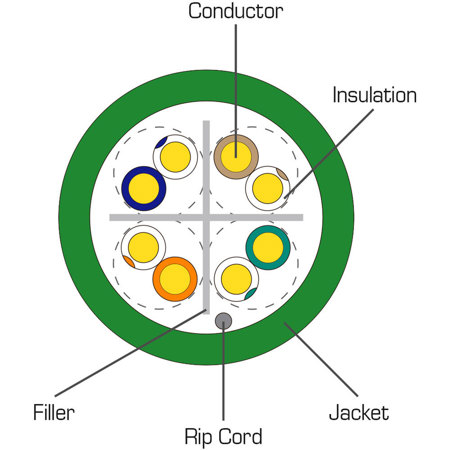

Construction

Construction

Jump to...
  • Conductor

    4 pairs of 23AWG solid bare copper

  • Insulation

    Polyolefin (PO)
    Blue & white/blue stripe, orange & white/orange stripe, green & white/green stripe, brown & white/brown stripe

  • Twist

    Left-hand

  • Assembly

    Left hand direction

  • Rip Shield

    Mylar tape

  • Drain Wire

    24AWG solid tinned copper

  • Shield

    Al Mylar tape, 100% coverage and mylar side facing out

  • Jacket

    Low smoke zero halogen (LSZH), green (Pantone 7732C)

  • Filler

    Polyolefin (PO)

Diameter

Jump to...
  • Jacket Diameter

    7.2 +/-0.2mm

  • Jacket thickness

    0.45 +/-0.05mm

  • Insulation

    Blue & white/blue stripe: 1.08 +/- 0.02mm
    Orange & white/orange stripe: 1.05 +/- 0.02mm
    Green & white/green stripe: 1.08 +/- 0.02mm
    Brown & white/brown stripe: 1.05 +/- 0.02mm

Electrical

Jump to...
  • Temperature & Voltage Rating

    60 deg. C at 300V

  • Spark Test

    2.5kV DC

  • AC Leakage Current

    <=10mA (1.5kV AC) through overall jacket

  • Conductor DC Resistance

    <=9.38 Ohms /100m

  • Resistance Unbalance

    <=5%

  • Dielectric Strength

    1.5kV AC for 2sec

  • Insulation Resistance

    >=5000M Ohms /m

  • Mutual Capacitance

    <=5.6nF /100m

  • Capacitance Unbalance

    <=330pF /100m pair-to-ground

  • Characteristic Impedance

    100+/-15 Ohms at 1 to 100MHz

  • Coupling Attenuation

    <=55dB at 30MHz, <=47dB at 250MHz

Usage and Environmental

Jump to...
  • Cable Cold Bend

    -20 deg. C for 4hr

  • Insulation Tensile Strength

    2400 PSI min. (1.69kg/m2)

  • NVP

    0.69

  • Temperature Range

    Storage: -20 to 60 deg. C (-4 to 140 deg. F)
    Installation: 0 to 60 deg. C (32 to 140 deg. F)
    Operation: -20 to 60 deg. C (-4 to 140 deg. F)

  • Minimum Bending Radius

    =4 times of overall diameter

  • Maximum Pulling Tension

    <=110N

Regulatory Performance

Jump to...
  • ANSI/TIA-568-C.2 (2009)

    Balanced Twisted-Pair Telecommunications Cabling and Components Standards

  • ISO/IEC 11801 (Edition 2.2)

    Information technology - Generic cabling for customer premises

  • IEC 61156-5 (Edition 2.0)

    Multicore and symmetrical pair/quad cables for digital communications - Part 5: Symmetrical pair/quad cables with transmission characteristics up to 1000 MHz - Horizontal floor wiring - Sectional specification

  • EN 50288-6-1

    2013: Multi-element metallic cables used in analogue and digital communication and control - Part 6-1: Sectional specification for unscreened cables characterized up to 250MHz - Horizontal and building backbone cables

  • EN 50173-12011

    Information technology. Generic cabling systems. General requirements

Regulatory Safety

Jump to...
  • IEC 60332-1-2

    Tests on electric and optical fiber cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1kW pre-mixed flame

  • IEC 61034-1 / 61034-2

    Measurement of smoke density of cables burning under defined conditions

  • IEC 60754-2

    Test on gases evolved during combustion of materials from cables

General

Jump to...
  • Cable Length

    500m (1640.40')

  • UPC Code

    7291063073367

About Kramer Electronics BCLS-23

Experience superior connectivity with the BCLS-23 1640' Cat 6 F/UTP Low-Smoke/Zero-Halogen Bulk Cable, a high-performance solution from Kramer Electronics, a leader in the field of advanced networking technology. This durable and reliable cable is specifically designed for robust IT, LAN, and Ethernet installations, ensuring high-quality transmission and optimal network performance.

Constructed with 23AWG solid bare copper conductors, this cable features a cross filler and an overall metal foil screen with a drain wire, offering enhanced signal integrity and reduced electromagnetic interference. Encased in a Low-Smoke/Zero-Halogen (LSZH) jacket, the cable is safer to use and install, minimizing the emission of harmful smoke and halogens, making it an environmentally friendly choice for your networking needs.

The BCLS-23 cable exceeds CAT 6 specifications, providing additional performance and bandwidth beyond the basic standard. With a sweep frequency of up to 400MHz, this cable is capable of supporting a variety of applications, including structured cabling for horizontal and building backbone cable, IEEE 802.3ab 1000BASE-T, 1000BASE-TX, and legacy speeds, as well as CDDI/ATM/Token Ring, and IEEE 802.3af (PoE) / IEEE 802.3at (PoE+).

Packaged on a fumigated plywood reel, this green-colored cable comes with sequential markings every meter for easy measurement and installation. With a generous length of 1640 feet (500m), the BCLS-23 Cat 6 F/UTP cable offers flexibility and affordability without compromising on quality or safety. Trust in the power of Kramer Electronics for your networking solutions.

Kramer Electronics BCLS-23 Features

  • High-performance Cat 6 F/UTP Low-Smoke/Zero-Halogen Bulk Cable for superior connectivity
  • Constructed with 23AWG solid bare copper conductors for enhanced signal integrity
  • Features a cross filler and an overall metal foil screen for reduced electromagnetic interference
  • Encased in a Low-Smoke/Zero-Halogen (LSZH) jacket for safe and eco-friendly usage
  • Exceeds CAT 6 specifications, offering additional performance and bandwidth
  • Suitable for a variety of applications including structured cabling, IT, LAN, and Ethernet installations

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Ensure reliable network connections with this 1640' Cat6 Ethernet cable.
  • Experience fast data transfer with this shielded Cat6 cable, ideal for high-speed networks.
  • Built to last: Durable Ethernet cable with LSZH jacket for safe, long-term use.
  • This green Cat6 cable is perfect for custom installations, offering flexibility and performance.
  • Minimize interference: F/UTP design reduces crosstalk for a cleaner network signal.
  • Enjoy peace of mind with our 7-year warranty on this high-quality Kramer Ethernet cable.

What's in the box:

  • Kramer Electronics BCLS-23 1640' Cat 6 F/UTP Low-Smoke/Zero-Halogen Bulk Cable
  • Kramer Electronics 7 Year Limited Warranty
