Kramer Electronics BCLS-33 1640' Cat 6A F/UTP Bulk Cable, Orange
Kramer Electronics BCLS-33: Picture 1 thumbnail
Kramer Electronics BCLS-33: Picture 2 thumbnail
See all Kramer Electronics items
20% Off

Kramer Electronics BCLS-33 1640' Cat 6A F/UTP Low-Smoke/Zero-Halogen Bulk Cable with Metal-Foil Screen, 23 AWG, Orange

SKU: KRBCLS33OR5 MFR: 99-46310500
Be the first to review this itemAsk a Question
$785.60
$982.00
Save: $196.4 (20%)
OR
$131/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Get superior performance with this 1640' Cat6A Ethernet cable, perfect for high-speed data transfer.
  • This durable Kramer Ethernet cable ensures reliable connectivity for all your networking needs at home.
  • Built with low-smoke, zero-halogen (LSZH) material, this Cat6A cable enhances safety in any environment.
  • Enjoy a clean, interference-free signal with the metal-foil screen of this high-quality Kramer cable.
  • This orange Cat6A Ethernet cable supports bandwidth-intensive applications, ensuring optimal performance.
  • With a 7-year warranty, this Kramer cable provides long-lasting reliability and peace of mind for users.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Kramer Electronics BCLS-33 Specifications

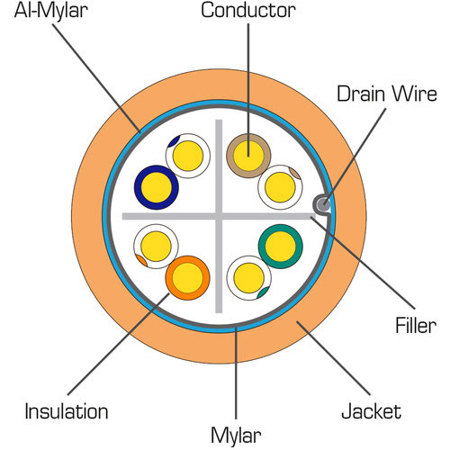

Construction

Construction

Jump to...

  • Conductor

    4 pairs of 23AWG solid bare copper

  • Insulation

    Polyolefin (PO)
    Blue & white/blue stripe, orange & white/orange stripe, green & white/green stripe, brown & white/brown stripe

  • Twist

    Left-hand

  • Assembly

    Left hand direction

  • Rip Shield

    Mylar tape

  • Drain Wire

    24AWG solid tinned copper

  • Shield

    Al Mylar tape, 100% coverage and mylar side facing out

  • Jacket

    Low smoke zero halogen (LSZH), orange (Pantone 1485C)

Filler

Jump to...

  • Filler

    Polyolefin (PO)

Diameter

Jump to...

  • Jacket Diameter

    7.6 +/-0.2mm

  • Jacket Thickness

    0.55 +/-0.05mm

  • Insulation

    Blue & white/blue stripe: 1.15 +/- 0.02mm
    Orange & white/orange stripe: 1.11 +/- 0.02mm
    Green & white/green stripe: 1.15 +/- 0.02mm
    Brown & white/brown stripe: 1.11 +/- 0.02mm

Electrical

Jump to...

  • Temperature & Voltage Rating

    60 deg. C at 300V

  • Spark Test

    2.5kV DC

  • AC Leakage Current

    <=10mA (1.5kV AC) through overall jacket

  • Conductor DC Resistance

    <=9.38 Ohms /100m

  • Resistance Unbalance

    <=5%

  • Dielectric Strength

    1.5kV AC for 2sec

  • Insulation Resistance

    >=5000MOhms /m

  • Mutual Capacitance

    <=5.6nF /100m

  • Capacitance Unbalance

    <=330pF /100m pair-to-ground

  • Characteristic Impedance

    100+/-15 Ohms At 1 to 100MHz

  • Coupling Attenuation

    <=55dB at 30MHz, <=41dB at 500MHz

Usage and Environmental

Jump to...

  • Cable Cold Bend

    -20 deg. C for 4hr

  • Insulation Tensile Strength

    2400 PSI min. (1.69kg/m.sq)

  • NVP

    0.67

  • Temperature Range

    Storage: -20 to 60 deg. C (-4 to 140 deg. F)
    Installation: 0 to 60 deg. C (32 to 140 deg. F)
    Operation: -20 to 60 deg. C (-4 to 140 deg. F)

  • Minimum Bending Radius

    >=4 times of overall diameter

  • Maximum Pulling Tension

    <=110N

Regulatory Performance

Jump to...

  • ANSI/TIA-568-C.2 (2009)

    Balanced Twisted-Pair Telecommunications Cabling and Components Standards

  • ISO/IEC 11801 (Edition 2.2)

    Information technology - Generic cabling for customer premises

  • IEC 61156-5 (Edition 2.0)

    Multicore and symmetrical pair/quad cables for digital communications - Part 5: Symmetrical pair/quad cables with transmission characteristics up to 1000 MHz - Horizontal floor wiring - Sectional specification

  • EN 50288-6-1

    2013: Multi-element metallic cables used in analogue and digital communication and control - Part 6-1: Sectional specification for unscreened cables characterized up to 250MHz - Horizontal and building backbone cables

  • EN 50173-12011

    Information technology. Generic cabling systems. General requirements

Regulatory Safety

Jump to...

  • IEC 60332-1-2

    Tests on electric and optical fiber cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1kW pre-mixed flame

  • IEC 61034-1 / 61034-2

    Measurement of smoke density of cables burning under defined conditions

  • IEC 60754-2

    Test on gases evolved during combustion of materials from cables

General

Jump to...

  • Cable Length

    500m (1640.40')

Other

Jump to...

  • UPC Code

    7291063073381

About Kramer Electronics BCLS-33

Kramer's BCLS-33 is a high-performance CAT 6A F/UTP cable designed for IT, LAN and Ethernet installations. It is constructed with 23AWG solid bare copper conductors with a cross filler and overall metal foil screen with a drain wire. It is enclosed in an LSZH jacket with sequential markings every meter and packed on a fumigated plywood reel. BCLS-33 cable exceeds CAT 6A specifications to provide additional performance and bandwidth beyond the basic standard.

• CAT 6A F/UTP
• 23AWG solid bare copper
• LSZH
• Cross filler
• Overall metal foil screen with drain wire
• High-Performance Transmission
• High-Quality Safety Properties
• Sweep Frequency up to 650MHz

Applications
• Structure cabling for horizontal and building backbone cable
• IT, LAN and Ethernet installations
• Ideal for 10GbE and legacy speeds applications
• IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)

Warranty Information

This product has a limited warranty of 84 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Get superior performance with this 1640' Cat6A Ethernet cable, perfect for high-speed data transfer.
  • This durable Kramer Ethernet cable ensures reliable connectivity for all your networking needs at home.
  • Built with low-smoke, zero-halogen (LSZH) material, this Cat6A cable enhances safety in any environment.
  • Enjoy a clean, interference-free signal with the metal-foil screen of this high-quality Kramer cable.
  • This orange Cat6A Ethernet cable supports bandwidth-intensive applications, ensuring optimal performance.
  • With a 7-year warranty, this Kramer cable provides long-lasting reliability and peace of mind for users.

What's in the box:

  • Kramer Electronics BCLS-33 1640' Cat 6A F/UTP Low-Smoke/Zero-Halogen Bulk Cable
  • Kramer Electronics 7 Year Limited Warranty
