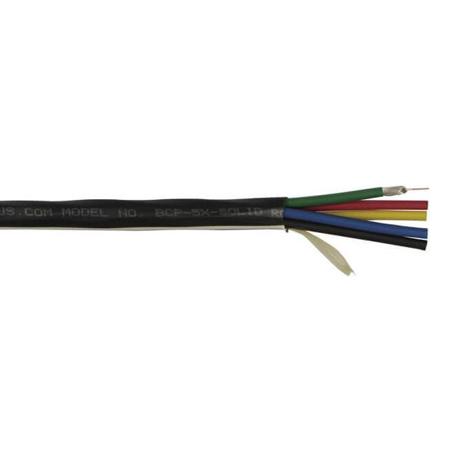

Kramer Electronics 500' Plenum Rated Bulk 5 Mini Coax High-Resolution Solid Core Cable, 25AWG

SKU: KRBCP5XSO500 MFR: BCP-5X-SOLID-500
Earn VIP Reward Points

Key Features

  • Ensure optimal signal quality with this 500' high-resolution coaxial cable.
  • Experience reliable data transmission using our durable, plenum-rated coax cable.
  • This 25AWG solid core cable is perfect for professional video applications.
  • Minimize signal loss with superior shielding in this Kramer Electronics coax cable.
  • Enjoy versatile connectivity with this 5-mini coax cable for various devices.
  • Get peace of mind with a 75 Ohms impedance cable, ensuring stable performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics 500' Plenum Bulk 5 Mini Coax High-Resolution Solid Core Cable Specifications

Construction

Construction

Jump to...
  • Coax Center Conductor

    25AWG solid bare copper

  • Dielectric

    Foamed FEP

  • Shield

    38AWG tinned copper 90% spiral
    Aluminum Mylar foil 25% overlap rate

  • Coax Jacket Colors

    Red, green, blue, yellow, black

  • Outer Jacket

    XPbP lead-free plenum PVC

  • Outer Jacket Color

    Black with white stripe extruded into jacket opposite side from the print legend

Diameters

Jump to...
  • Center Conductor

    0.457mm (0.018")

  • Dielectric

    1.88mm (0.074")

  • Individual Coax Outer Jacket

    2.7mm (0.106") nominal

  • Outside Diameter

    8mm (0.315") nominal

Electrical

Jump to...
  • Impedance

    75 Ohms nominal

  • DC Resistance

    105 Ohms/km (32 Ohms/1000ft) at 20 deg. C

  • Capacitance

    16pF/ft nominal

  • Time Delay

    1.2ns/ft nominal

  • Attenuation (dB/100ft)

    -5.1dB at 100MHz, - 7.1dB at 200MHz, - 10.5dB at 400MHz, - 17.9dB at 1000MHz

Regulatory

Jump to...
  • UL

    CMP per Article 800 NEC
    CL2P per Article 725 NEC

  • RoHS

    2011/65/EU

General

Jump to...
  • Cable Length

    500' (152.40m)

  • UPC Code

    7291063047320

About Kramer Electronics 500' Plenum Bulk 5 Mini Coax High-Resolution Solid Core Cable

Kramer's BCP-5X-SOLID is a plenum rated high resolution 5-coax cable typically used for routing RGBHV signals in professional AV systems. It is optimized for use with a new generation of one piece compression connectors. It offers the best possible precision and ease of use in the field when working with BNCs and RCAs. In addition, the solid center conductor is ideal for connecting directly to equipment with terminal blocks.

Plenum Rated
The low smoke and fire resistant properties of plenum rated cable allow it to reside in air return spaces of ceilings, floors and walls, often saving the cost of installing conduit.

Quality Construction
Each mini coax is a precision system consisting of a solid 25AWG center conductor and foamed FEP dielectric surrounded by aluminum Mylar foil and tinned copper spiral shields. A white stripe in the jacket makes it easy to distinguish from its stranded counterpart.

Numerous Applications
The most common application is routing RGBHV signals in pro AV systems but BCP-5X-SOLID also offers excellent performance with any combination of component or composite video, and/or unbalanced audio.

New Generation One-Piece Connectors
For quickest assembly use Kramer linear compression and stripper coax tools.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure optimal signal quality with this 500' high-resolution coaxial cable.
  • Experience reliable data transmission using our durable, plenum-rated coax cable.
  • This 25AWG solid core cable is perfect for professional video applications.
  • Minimize signal loss with superior shielding in this Kramer Electronics coax cable.
  • Enjoy versatile connectivity with this 5-mini coax cable for various devices.
  • Get peace of mind with a 75 Ohms impedance cable, ensuring stable performance.

What's in the box:

  • Kramer Electronics 500' Plenum Rated Bulk 5 Mini Coax High-Resolution Solid Core Cable
  • Kramer Electronics 1 Year Limited Warranty
