Kramer Electronics 1000' Plenum Rated Cat 6 F/UTP Cable for DGKat, HDBaseT and LAN Systems

SKU: KRBCPHD61000 MFR: BCP-HDKAT6-1000
Earn VIP Reward Points

Key Features

  • Ensure reliable connectivity with this 1000ft Cat6 Ethernet cable for your network.
  • Experience high-speed data transfers using our plenum-rated Cat6 cable, perfect for HDBaseT.
  • Our durable Cat6 F/UTP cable is designed for long-lasting performance in demanding environments.
  • Enjoy optimal signal quality with this shielded Ethernet cable, minimizing interference for clear data.
  • This Kramer Cat6 cable supports DGKat, HDBaseT & LAN systems, delivering versatile connectivity.
  • Get peace of mind with our 1-year warranty on this high-performance Cat6 Ethernet cable.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics 1000' Plenum Cat 6 F/UTP Cable for DGKat/HDBaseT/LAN Systems Specifications

Conductors

Conductors

Jump to...
  • Construction

    4x2x23AWG

  • Material

    Annealed copper

  • Outer Diameter

    0.57+/- 0.01mm

Insulation

Jump to...
  • Material

    FEP

  • Outer Diameter

    1.08 +/- 0.08mm

  • Color Code

    Per TIA/EIA 568-B:Blue/Blue-White, Brown/Brown-White, Orange/Orange-White, Green/Green-White

  • Total Spiral

    Mylar tape coverage: = % 115

Drain Wire

Jump to...
  • Material

    Tinned copper

  • Outer Diameter

    0.4 +/- 0.01 mm

Screening

Jump to...
  • Material

    Alu/PET(FR)

  • Coverage

    >= % 115

  • Material

    CMP-PVC

  • Thickness

    >=0.45mm

  • Diameter

    6.6 +/- 0.2mm

Electrical

Jump to...
  • Impedance

    1-100MHz / 100 +/- 15 Ohms

  • Propagation Velocity

    0.7

  • Mutual Pair Capacitance:

    <=42 pF/m

  • Capacitance Unbalanced (Pair to Ground)

    <=1500 pF/km

  • Max. Conductor DC Resistance

    < 79.8 Ohms/km

  • Resistance Unbalance (Within Pairs)

    <1.5%

  • Dielectric Strength

    2.5 kV DC (2s)

  • Insulation Resistance

    >5000 MOhms/km

  • Voltage Rating

    30V

Environment Conditions

Jump to...
  • Storage / Transport / Installation

    0-50 deg. C

  • Operation

    -20 to 60 deg. C (-4 to 140 deg. F)

Mechanical

Jump to...
  • Maximum Pulling Tension

    100 N

  • Bending Radius (During Installation)

    60mm (2.36")

  • Bending Radius (Installed)

    50mm (1.97")

Standards Compliance

Jump to...
  • Standards Compliance

    ISO/IEC 11801:2011, EC 61156-5:2009, UL 444, EN 50173, EN 50288, EIA/TIA 568-C2:2009, Fire Performance: UL-CMP (E308599)

General

Jump to...
  • Cable Length

    1000' (304.80m)

  • UPC Code

    7291063087999

About Kramer Electronics 1000' Plenum Cat 6 F/UTP Cable for DGKat/HDBaseT/LAN Systems

BCP-HDKat6 is a high-performance unified CAT6 Plenum rated cable that handles all Pro AV and IT signals over four overall screened twisted pairs This F/UTP CAT6 cable uses HDBaseT and Kramer's DGKat technology to pass video signals of up to 4K at 60 (4:4:4) resolution. BCP-HDKat6 is also ideal for LAN applications.

High-Performance Cable
Uses HDBaseT and Kramer's DGKat technology to pass video signals of up to 4K@60 (4:4:4) resolution with optimal signal performance.

Quality Construction

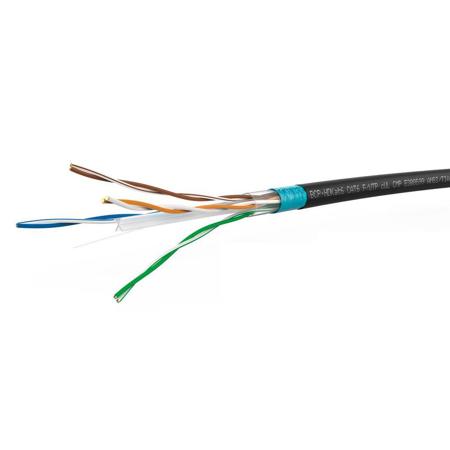

4 twisted pairs (F/UTP) of 23AWG solid copper conductors are cabled together, shielded and encased in a CMP-Plenum outer jacket.

Optimized for Kramer Hardware

Use with any of Kramer's wide range of twisted pair digital transmitter-receiver sets.

RJ-45 connector

BCP-HDKAT cable requires a special RJ-45 connector. Use the recommended Kramer HDKat connector.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable connectivity with this 1000ft Cat6 Ethernet cable for your network.
  • Experience high-speed data transfers using our plenum-rated Cat6 cable, perfect for HDBaseT.
  • Our durable Cat6 F/UTP cable is designed for long-lasting performance in demanding environments.
  • Enjoy optimal signal quality with this shielded Ethernet cable, minimizing interference for clear data.
  • This Kramer Cat6 cable supports DGKat, HDBaseT & LAN systems, delivering versatile connectivity.
  • Get peace of mind with our 1-year warranty on this high-performance Cat6 Ethernet cable.

What's in the box:

  • Kramer Electronics 1000' Plenum Rated Cat 6 F/UTP Cable
  • Kramer Electronics 1 Year Limited Warranty
