Kramer Electronics 500' Plenum Rated Cat 6 F/UTP Cable for DGKat, HDBaseT and LAN Systems

SKU: KRBCPHDK6500 MFR: BCP-HDKAT6-500
Earn VIP Reward Points

Key Features

  • Ensure reliable connectivity with this 500' Cat6 Ethernet cable, perfect for HDBaseT systems.
  • Experience superior performance with our plenum-rated Cat6 cable, ideal for demanding LAN setups.
  • Built for durability, this Kramer Ethernet cable features robust shielding against interference.
  • Enjoy seamless compatibility; our Cat6 cable supports a wide range of network devices and applications.
  • Get peace of mind with our Ethernet cable's warranty, ensuring long-lasting and dependable use.
  • This high-quality Cat6 cable offers exceptional value, combining performance and affordability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics 500' Plenum Cat 6 F/UTP Cable for DGKat/HDBaseT/LAN Systems Specifications

Conductors

Conductors

Jump to...
  • Construction

    4x2x23AWG

  • Material

    Annealed copper

  • Outer Diameter

    0.57+/- 0.01mm

Insulation

Jump to...
  • Material

    FEP

  • Outer Diameter

    1.08 +/- 0.08mm

  • Color Code

    Per TIA/EIA 568-B:Blue/Blue-White, Brown/Brown-White, Orange/Orange-White, Green/Green-White

  • Total Spiral

    Mylar tape coverage: = % 115

Drain Wire

Jump to...
  • Material

    Tinned copper

  • Outer Diameter

    0.4 +/- 0.01 mm

Screening

Jump to...
  • Material

    Alu/PET(FR)

  • Coverage

    >= % 115

  • Material

    CMP-PVC

  • Thickness

    >=0.45mm

  • Diameter

    6.6 +/- 0.2mm

Electrical

Jump to...
  • Impedance

    1-100MHz / 100 +/- 15 Ohms

  • Propagation Velocity

    0.7

  • Mutual Pair Capacitance:

    <=42 pF/m

  • Capacitance Unbalanced (Pair to Ground)

    <=1500 pF/km

  • Max. Conductor DC Resistance

    < 79.8 Ohms/km

  • Resistance Unbalance (Within Pairs)

    <1.5%

  • Dielectric Strength

    2.5 kV DC (2s)

  • Insulation Resistance

    >5000 MOhms/km

  • Voltage Rating

    30V

Environment Conditions

Jump to...
  • Storage / Transport / Installation

    0-50 deg. C

  • Operation

    -20 to 60 deg. C (-4 to 140 deg. F)

Mechanical

Jump to...
  • Maximum Pulling Tension

    100 N

  • Bending Radius (During Installation)

    60mm (2.36")

  • Bending Radius (Installed)

    50mm (1.97")

Standards Compliance

Jump to...
  • Standards Compliance

    ISO/IEC 11801:2011, EC 61156-5:2009, UL 444, EN 50173, EN 50288, EIA/TIA 568-C2:2009, Fire Performance: UL-CMP (E308599)

General

Jump to...
  • Cable Length

    500' (152.40m)

  • UPC Code

    7291063087982

About Kramer Electronics 500' Plenum Cat 6 F/UTP Cable for DGKat/HDBaseT/LAN Systems

Bring your Pro AV and IT systems to life with the 500' Plenum Rated Cat 6 F/UTP Cable for DGKat, HDBaseT, and LAN Systems. This high-performance, unified CAT6 cable is designed to handle a wide range of signals, making it a versatile choice for both professional audiovisual and information technology applications.

Engineered with Kramer's DGKat technology and HDBaseT compatibility, this F/UTP CAT6 cable is capable of transmitting video signals up to a 4K at 60 (4:4:4) resolution. This ensures optimal signal performance, delivering clear, high-definition visuals for your viewing pleasure.

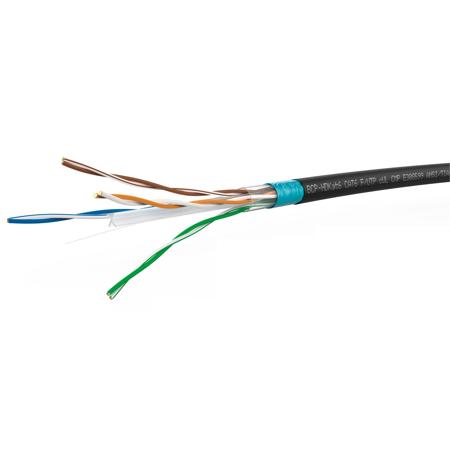

Constructed with quality in mind, this cable features four twisted pairs (F/UTP) of 23AWG solid copper conductors. These are carefully cabled together, shielded, and encased in a CMP-Plenum outer jacket for maximum durability and signal integrity.

Designed to work seamlessly with Kramer Hardware, this cable is optimized for use with any of Kramer's wide range of twisted pair digital transmitter-receiver sets. Please note that the BCP-HDKAT cable requires a special RJ-45 connector, and we recommend using the Kramer HDKat connector for the best results.

In summary, the 500' Plenum Rated Cat 6 F/UTP Cable for DGKat, HDBaseT, and LAN Systems is a high-quality, high-performance solution for all your Pro AV and IT needs.

Kramer Electronics 500' Plenum Cat 6 F/UTP Cable for DGKat/HDBaseT/LAN Systems Features

  • High-performance, 500' Plenum Rated Cat 6 F/UTP Cable for professional audiovisual and IT applications
  • Features Kramer's DGKat technology and HDBaseT compatibility for video signal transmission up to 4K at 60 (4:4:4) resolution
  • Constructed with four twisted pairs (F/UTP) of 23AWG solid copper conductors, shielded and encased in a durable CMP-Plenum outer jacket
  • Optimized for seamless integration with Kramer's range of twisted pair digital transmitter-receiver sets
  • Requires a special RJ-45 connector, recommended for use with the Kramer HDKat connector for optimal performance
  • Versatile solution for DGKat, HDBaseT, and LAN Systems, ensuring high-quality signal performance

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure reliable connectivity with this 500' Cat6 Ethernet cable, perfect for HDBaseT systems.
  • Experience superior performance with our plenum-rated Cat6 cable, ideal for demanding LAN setups.
  • Built for durability, this Kramer Ethernet cable features robust shielding against interference.
  • Enjoy seamless compatibility; our Cat6 cable supports a wide range of network devices and applications.
  • Get peace of mind with our Ethernet cable's warranty, ensuring long-lasting and dependable use.
  • This high-quality Cat6 cable offers exceptional value, combining performance and affordability.

What's in the box:

  • Kramer Electronics 500' Plenum Rated Cat 6 F/UTP Cable
  • Kramer Electronics 1 Year Limited Warranty
