Red - pin 2
Green - pin 3
Black - pin 5

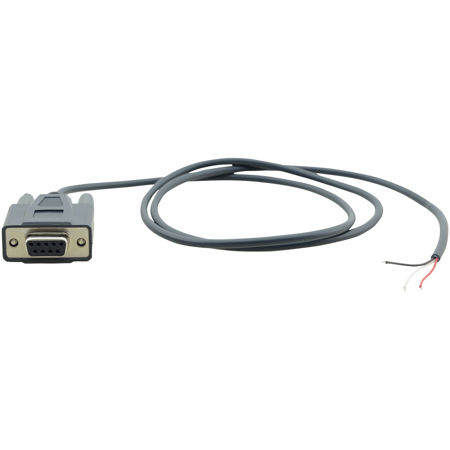

RS-232, D9 (Female) to Bare End
Tinned Copper
24AWG
25' (7.62m)
Kramer's C-D9F/OPEN control cables are for RS-232 applications to control devices within a professional AV system. Many Kramer products are RS-232 controllable and equipped with terminal block connector. This RS-232 cable helps to connect them safely to transmit the RS-232 serial commands to a touch-screen system, PC or other serial controller equipped with D9 connector.
Pinout - Wired pin to pin on pins 2, 3 & 5
Molded Strain Relief
Stripped & Tinned Wires - At open end
RoHS Compliant
Quality Construction
Constructed using three 24AWG isolated conductors, terminated with a molded female 9-pin D-sub connector, nickel plated on one side and open end, non-terminated, on the second side.
