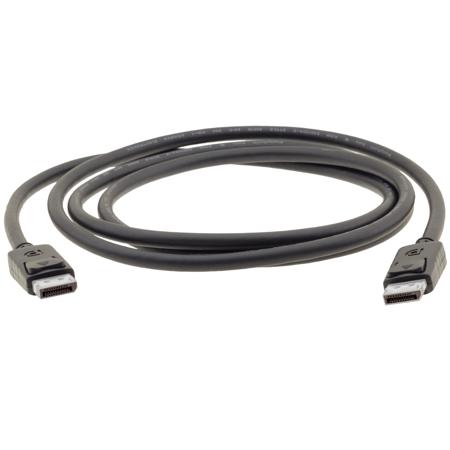

Kramer Electronics C-DP 4K DisplayPort (M) to DisplayPort (M) Cable with Latches, 25'

SKU: KRCDP25 MFR: 97-0617025
$51.20
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this 25ft DisplayPort cable, supporting up to 4K@60Hz.
  • Enjoy a secure connection; latches prevent accidental disconnections, enhancing durability.
  • This DisplayPort cable ensures compatibility with all VESA resolutions, perfect for presentations.
  • Triple shielding eliminates RF and EM interference, providing a clean audio-visual experience.
  • Ideal for high-resolution gaming or professional video editing with a max data rate of 21.6Gbps.
  • Gold-plated connectors resist corrosion, ensuring a reliable, long-lasting DisplayPort connection.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kramer Electronics C-DP Specifications

General

General

Jump to...
  • Connector 1

    1x DisplayPort Male

  • Connector 2

    1x DisplayPort Male

  • Cable Length

    25' (7.60m)

  • Resolutions

    Supports all VESA resolutions up to 4K@60Hz (4:4:4)

  • Max. Data Rate

    21.6Gbps (5.4 Gbps per lane)

Physical

Jump to...
  • Male DisplayPort Connectors

    Gold plated pins-15u, Nickel Plated Shell

Screening

Jump to...
  • Type

    Triple Shielding (eliminates RF and EM interference)

Conductors

Jump to...
  • Gauge

    26AWG

  • Material

    PVC

  • Diameter

    8.2 +/- 0.19mm

  • Average Thickness

    0.57mm

  • Color

    Black

Electrical

Jump to...
  • Voltage Rating

    30V

  • Temperature Rating

    80 Degree C

  • Dielectric Strength

    AC - 750V/1sec Min

  • Insulation Resistance

    FOAM-SKIN-PE,PE:DC-500V 100 MOhm/km Min. at 20 Degree C

  • Conductor Resistance

    148Ohm/Km Max. at 20 Degree C

  • Differential Impedance

    100 +/-5Ohm

  • Pair Skew

    Intra: 50ps/2m
    Inter: 4ns/2m

Standards Compliance

Jump to...
  • Rating

    VW-1

  • RoHS

    2011/65/EU

  • UPC Code

    7291063086763

About Kramer Electronics C-DP

Be prepared for an immersive, high-definition experience with the C-DP 4K DisplayPort (M) to DisplayPort (M) Cable with Latches. This premium quality cable is designed to transmit video signals up to a stunning 4K@60Hz (4:4:4) resolution, adhering to the DisplayPort 1.2 standard. With the ability to support an HBR2 (High Bit Rate 2) bandwidth of up to 21.6 Gbps, this cable ensures smooth, uninterrupted streaming of your favorite content. The C-DP 4K DisplayPort Cable is triple shielded, offering superior noise immunity for a clear, crisp viewing experience. Whether you're a professional videographer or a home theater enthusiast, this 25-foot cable with latches is an essential addition to your audio-visual setup.

Kramer Electronics C-DP Features

  • High-Performance Professional Cable - supports resolutions up to 4K@60Hz (4:4:4) and an HBR2 (High Bit Rate 2) bandwidth of up to 21.6 Gbps
  • Content Protection Support - DPCP (DisplayPort Content Protection) and HDCP 2.2
  • Daisy Chain Multiple Monitors - With MST (Multi-Stream) support
  • Secure Connections - Includes molded DisplayPort connectors with latches
  • Quality Construction - Triple shielded for superior noise immunity
  • Backward Compatibility - Compatible with DisplayPort 1.1
  • Varied Selection of Lengths - Available in versions of 0.9 to 15.0m (3 to 50')

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Experience superior sound quality with this 25ft DisplayPort cable, supporting up to 4K@60Hz.
  • Enjoy a secure connection; latches prevent accidental disconnections, enhancing durability.
  • This DisplayPort cable ensures compatibility with all VESA resolutions, perfect for presentations.
  • Triple shielding eliminates RF and EM interference, providing a clean audio-visual experience.
  • Ideal for high-resolution gaming or professional video editing with a max data rate of 21.6Gbps.
  • Gold-plated connectors resist corrosion, ensuring a reliable, long-lasting DisplayPort connection.

What's in the box:

  • C-DP 4K DisplayPort (M) to DisplayPort (M) Cable with Latches (25')
  • Kramer Electronics 7 Year Limited Warranty
