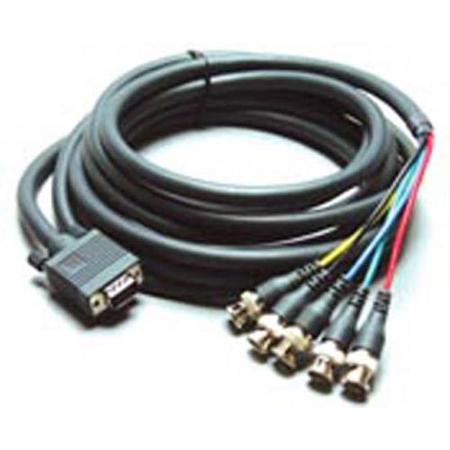

Kramer Electronics C-GF/5BM Molded 15-Pin HD (F) to 5 BNC (M) Breakout Cable, 1'
See all Kramer Electronics items
20% Off

Kramer Electronics C-GF/5BM Molded 15-Pin HD (F) to 5 BNC (M) Breakout Cable, 1'

SKU: KRCGF5BM1 MFR: C-GF/5BM-1
Be the first to review this itemAsk a Question
$20.00
$25.00
Save: $5 (20%)
Earn VIP Reward Points

Key Features

  • Ensure optimal video signal transfer with this high-quality Kramer breakout cable.
  • Connect VGA to component video effortlessly using this 1-foot display adapter cable.
  • Experience reliable connectivity with our molded 15-Pin HD to 5 BNC adapter cable.
  • Enjoy superior picture clarity with impedance-matched 75Ohm VGA component adapter.
  • Perfect for professional AV setups, this display adapter supports up to 1GHz bandwidth.
  • Durable PVC jacket ensures long-lasting performance for your video display connections.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kramer Electronics C-GF/5BM Specifications

  • Connector 1

    1x Molded 15-pin HD (F)

  • Connector 2

    1x 5 BNC (M)

  • Cable Length

    1' (0.30m)

  • Attenuation (db/100')

    -0.6 dB @ 1MHz
    -1.4 dB @ 5 MHz
    -2.1 dB @ 10 MHz
    -4.7 dB @ 50MHz
    -6.8 dB @ 100MHz
    -9.2 dB @ 180MHz
    -14.2 dB @ 400MHz
    -20.1 dB @ 750MHz
    -23.8 dB @ 1000MHz

  • Coax Center Conductor

    28 AWG 7/36 tinned copper

  • Dielectric

    Foam polyethylene: 0.063" (1.6mm)

  • Coax Jacket Colors

    Red, green, blue, yellow, black

  • Outer Jacket

    PVC

  • Outer Jacket Color

    Dark Gray w/white lettering

  • Center Conductor

    0.015" (0.38mm)

  • Individual Coax

    0.108" (2.75mm)

  • Outside Diameter

    0.362" (9.2mm)

  • Impedance

    75Ohm

  • DC Resistance

    72.2Ohm per 1000ft, 237Ohm per km

  • Capacitance

    18.3pF per foot, 60pF per meter

  • Velocity of Propagation

    0.78

  • Temperature

    68 Degree to 167 Degree F (- 20 Degree to 75 Degree C)

  • UL

    CL2

  • CSA

    C(UL) CL2

  • UPC Code

    7291063034986

About Kramer Electronics C-GF/5BM

Take your video graphics setup to the next level with Kramer's C-GF/5BM Graphics Video Breakout Cable. This high-quality, durable cable is expertly constructed with five mini coax cables, ensuring optimal signal transmission for your computer graphic video signals.

One end of the cable features a molded 15-pin HD (M or F) connector, while the other end boasts five BNC (M or F) connectors. This design allows for seamless conversion between the two most prevalent cabling formats in the industry, the 15-pin HD and 5 BNC.

Whether you're a professional videographer or an enthusiastic hobbyist, this breakout cable is an essential tool for routing your computer graphic video signals with precision and clarity. Experience the difference in quality with Kramer's C-GF/5BM Graphics Video Breakout Cable.

Kramer Electronics C-GF/5BM Features

  • Quality Construction: Constructed using Kramer BC-5X high resolution mini coax cable, terminated with molded 15-pin HD connector on one end and 75Ohm BNC connectors on the other
  • Easy Installation: Models 6ft or longer have an 18in (460mm) long spread at the 5 BNC end to fit large routers/switchers such as the Sierra Pro 32 series
  • Varied Selection of Lengths: 0.2 to 30.5m (0.5 to 100')

Warranty Information

This product has a limited warranty of 84 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure optimal video signal transfer with this high-quality Kramer breakout cable.
  • Connect VGA to component video effortlessly using this 1-foot display adapter cable.
  • Experience reliable connectivity with our molded 15-Pin HD to 5 BNC adapter cable.
  • Enjoy superior picture clarity with impedance-matched 75Ohm VGA component adapter.
  • Perfect for professional AV setups, this display adapter supports up to 1GHz bandwidth.
  • Durable PVC jacket ensures long-lasting performance for your video display connections.

What's in the box:

  • Molded 15-Pin HD (F) to 5 BNC (M) Breakout Cable (1')
  • Kramer Electronics 7 Year Limited Warranty
