1x Molded 15-pin HD (F)
1x 5 BNC (M)
3' (0.90m)
-0.6 dB @ 1MHz
-1.4 dB @ 5 MHz
-2.1 dB @ 10 MHz
-4.7 dB @ 50MHz
-6.8 dB @ 100MHz
-9.2 dB @ 180MHz
-14.2 dB @ 400MHz
-20.1 dB @ 750MHz
-23.8 dB @ 1000MHz
28 AWG 7/36 tinned copper
Foam polyethylene: 0.063" (1.6mm)
Red, green, blue, yellow, black
PVC
Dark Gray w/white lettering
0.015" (0.38mm)
0.108" (2.75mm)
0.362" (9.2mm)
75Ohm
72.2Ohm per 1000ft, 237Ohm per km
18.3pF per foot, 60pF per meter
0.78
68 Degree to 167 Degree F (- 20 Degree to 75 Degree C)
CL2
C(UL) CL2
7291063034993

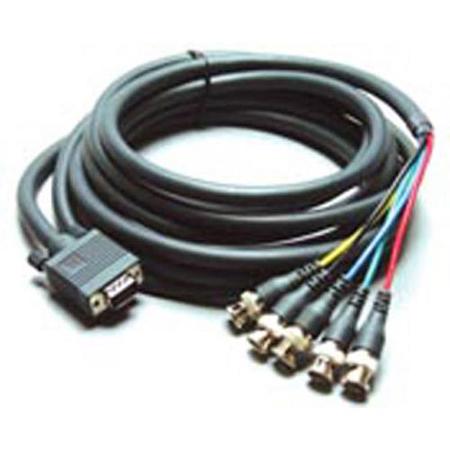

Kramer's C-GF/5BM graphics video breakout cable is constructed of 5 mini coax cables with a molded 15-pin HD (M or F) on one end and 5 BNC (M or F) on the other. It converts between the two most common cabling formats used for routing computer graphic video signals, 15-pin HD, and 5 BNC.
