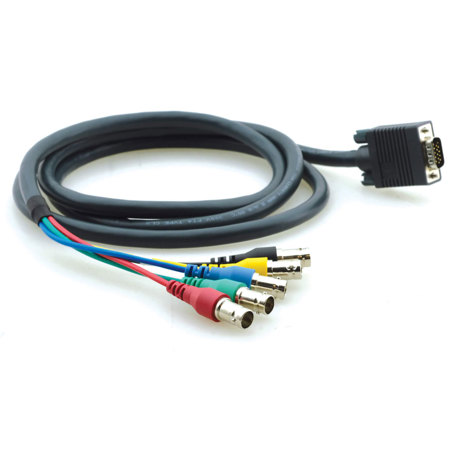

Kramer Electronics C-GM/5BF Molded 15-Pin HD VGA (M) to 5 BNC (F) Cable, 1'
See all Kramer Electronics items
20% Off

Kramer Electronics C-GM/5BF Molded 15-Pin HD VGA (M) to 5 BNC (F) Breakout Cable, 1'

SKU: KRCGM5BF1 MFR: C-GM/5BF-1
Be the first to review this itemAsk a Question
$17.60
$22.00
Save: $4.4 (20%)
Earn VIP Reward Points

Key Features

  • Ensure optimal signal transfer with this 1-foot VGA to BNC breakout cable.
  • Experience superior video connectivity using this high-quality Kramer display adapter.
  • This durable VGA cable supports clear, crisp video for professional presentations.
  • Enjoy reliable performance with our 75Ohm impedance VGA adapter cable.
  • Easily connect your VGA source to BNC displays with this convenient adapter.
  • Achieve excellent audio-visual clarity using this premium Kramer VGA cable.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kramer Electronics C-GM/5BF Specifications

  • Attenuation (DB/100')

    -0.6 dB @ 1MHz
    -1.4 dB @ 5 MHz
    -2.1 dB @ 10 MHz
    -4.7 dB @ 50MHz
    -6.8 dB @ 100MHz
    -9.2 dB @ 180MHz
    -14.2 dB @ 400MHz
    -20.1 dB @ 750MHz
    -23.8 dB @ 1000MHz

  • Coax Center Conductor

    28 AWG 7/36 tinned copper

  • Dielectric

    Foam polyethylene
    0.063" (1.6mm)

  • Shield

    90% braid 38 AWG tinned copper

  • Coax Jacket Colors

    Red, green, blue, yellow, black

  • Outer Jacket

    PVC

  • Outer Jacket Color

    Dark Gray with white lettering

  • Center Conductor

    0.015" (0.38mm)

  • Individual Coax

    0.108" (2.75mm)

  • Outside Diameter

    0.362" (9.2mm)

  • Impedance

    75Ohm

  • DC Resistance

    72.2Ohm per 1000', 237Ohm per km

  • Capacitance

    18.3pF per foot, 60pF per meter

  • Velocity of Propagation

    78%

  • Temperature

    68 Degree to 167 Degree fahrenheit, - 20 Degree to 75 Degree celsius

  • Ul

    CL2

  • CSA

    C(UL) CL2

  • Cable Length

    1' (0.30m)

  • UPC Code

    7291063035945

About Kramer Electronics C-GM/5BF

Kramer's C-GM/5BF is constructed of 5 mini coax cables with a molded 15-pin HD (M or F) on one end and 5 BNC (M or F) on the other. It converts between the two most common cabling formats used for routing computer graphic video signals, 15-pin HD, and 5 BNC.

Kramer Electronics C-GM/5BF Features

  • Quality Construction: Constructed using Kramer BC-5X high resolution mini coax cable, terminated with molded 15-pin HD connector on one end and 75Ohm BNC connectors on the other
  • Easy Installation: Models 6' or longer have an 18" (460mm) long spread at the 5 BNC end to fit large routers/switchers such as the Sierra Pro 32 series
  • Varied Selection of Lengths: 0.5 to 100 (0.2 to 30.5m)

Warranty Information

This product has a limited warranty of 84 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure optimal signal transfer with this 1-foot VGA to BNC breakout cable.
  • Experience superior video connectivity using this high-quality Kramer display adapter.
  • This durable VGA cable supports clear, crisp video for professional presentations.
  • Enjoy reliable performance with our 75Ohm impedance VGA adapter cable.
  • Easily connect your VGA source to BNC displays with this convenient adapter.
  • Achieve excellent audio-visual clarity using this premium Kramer VGA cable.

What's in the box:

  • C-GM/5BF Molded 15-Pin HD VGA (M) to 5 BNC (F) Breakout Cable (1')
  • Kramer Electronics 7 Year Limited Warranty
