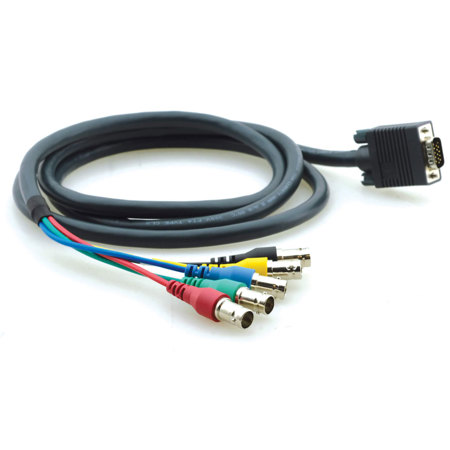

Kramer Electronics C-GM/5BF Molded 15-Pin HD VGA (M) to 5 BNC (F) Breakout Cable, 3'

SKU: KRCGM5BF3 MFR: C-GM/5BF-3
$22.40
$28.00
Save: $5.6 (20%)
Earn VIP Reward Points

Key Features

  • Ensure optimal video connectivity with this 3ft VGA to 5 BNC breakout cable.
  • Experience superior signal transfer with our high-quality display adapter cable.
  • This Kramer Electronics cable supports crystal-clear video for presentations.
  • Enjoy durable and reliable connections with this robust VGA breakout cable.
  • Easily connect your VGA source to BNC displays using this handy adapter.
  • Achieve professional-grade video quality with this impedance-matched cable.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.99

2 Year

$4.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics C-GM/5BF Specifications

  • Attenuation (DB/100')

    -0.6 dB @ 1MHz
    -1.4 dB @ 5 MHz
    -2.1 dB @ 10 MHz
    -4.7 dB @ 50MHz
    -6.8 dB @ 100MHz
    -9.2 dB @ 180MHz
    -14.2 dB @ 400MHz
    -20.1 dB @ 750MHz
    -23.8 dB @ 1000MHz

  • Coax Center Conductor

    28 AWG 7/36 tinned copper

  • Dielectric

    Foam polyethylene
    0.063" (1.6mm)

  • Shield

    90% braid 38 AWG tinned copper

  • Coax Jacket Colors

    Red, green, blue, yellow, black

  • Outer Jacket

    PVC

  • Outer Jacket Color

    Dark Gray with white lettering

  • Center Conductor

    0.015" (0.38mm)

  • Individual Coax

    0.108" (2.75mm)

  • Outside Diameter

    0.362" (9.2mm)

  • Impedance

    75Ohm

  • DC Resistance

    72.2Ohm per 1000', 237Ohm per km

  • Capacitance

    18.3pF per foot, 60pF per meter

  • Velocity of Propagation

    78%

  • Temperature

    68 Degree to 167 Degree fahrenheit, - 20 Degree to 75 Degree celsius

  • Ul

    CL2

  • CSA

    C(UL) CL2

  • Cable Length

    3' (0.9m)

  • UPC Code

    7291063035952

About Kramer Electronics C-GM/5BF

Are you looking for a reliable solution to connect your computer graphics video signals to your equipment with precision and quality The Kramer C-GM/5BF Molded 15-Pin HD VGA (M) to 5 BNC (F) Breakout Cable is your answer. This 3-foot cable is expertly designed to facilitate the conversion between the two most prevalent cabling formats in the video industry: the 15-pin HD VGA and the 5 BNC.

Constructed from five individual mini coaxial cables, the C-GM/5BF ensures high-quality signal transmission with minimal interference, making it ideal for professional video applications. The molded 15-pin HD VGA male connector on one end provides a secure and stable connection to your computer or video source, while the five BNC female connectors on the other end offer versatility for connecting to a range of devices such as monitors, projectors, and broadcast equipment.

The robust design of the C-GM/5BF features high-density shielding and superior molding, which not only prolongs the life of the cable but also preserves the integrity of the signal. Whether you're setting up a video editing suite, configuring a multi-display environment, or simply ensuring your presentations are delivered with the highest quality, this breakout cable is engineered to deliver clear, uninterrupted signals every time.

Upgrade your video connections with the Kramer C-GM/5BF Molded 15-Pin HD VGA (M) to 5 BNC (F) Breakout Cable, a professional-grade solution that offers both reliability and performance for your video signal needs.

Kramer Electronics C-GM/5BF Features

  • Quality Construction: Constructed using Kramer BC-5X high resolution mini coax cable, terminated with molded 15-pin HD connector on one end and 75Ohm BNC connectors on the other
  • Easy Installation: Models 6' or longer have an 18" (460mm) long spread at the 5 BNC end to fit large routers/switchers such as the Sierra Pro 32 series
  • Varied Selection of Lengths: 0.5 to 100 (0.2 to 30.5m)

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Ensure optimal video connectivity with this 3ft VGA to 5 BNC breakout cable.
  • Experience superior signal transfer with our high-quality display adapter cable.
  • This Kramer Electronics cable supports crystal-clear video for presentations.
  • Enjoy durable and reliable connections with this robust VGA breakout cable.
  • Easily connect your VGA source to BNC displays using this handy adapter.
  • Achieve professional-grade video quality with this impedance-matched cable.

What's in the box:

  • C-GM/5BF Molded 15-Pin HD VGA (M) to 5 BNC (F) Breakout Cable (3')
  • Kramer Electronics 7 Year Limited Warranty
