Kramer Electronics C-GM/5BM Molded 15-Pin HD VGA (M) to 5 BNC (M) Cable, 10'
See all Kramer Electronics items
20% Off

Kramer Electronics C-GM/5BM Molded 15-Pin HD VGA (M) to 5 BNC (M) Breakout Cable, 10'

SKU: KRCGM5BM10 MFR: C-GM/5BM-10
Be the first to review this itemAsk a Question
$20.80
$26.00
Save: $5.2 (20%)
Earn VIP Reward Points

Key Features

  • Experience superior video with this 10' Kramer VGA to BNC breakout cable.
  • Enjoy optimal signal transfer with our high-quality display adapter cable.
  • This VGA cable ensures sharp, clear images for professional presentations.
  • Connect your VGA source to BNC displays easily with this reliable cable.
  • Achieve pristine video quality with 75Ohm impedance VGA to component cable.
  • Rely on this durable Kramer cable for long-lasting, high-performance connectivity.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$2.99
2-Year Adorama Protect$4.99
3-Year Adorama Protect$8.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics C-GM/5BM Specifications

  • Attenuation (DB/100')

    -0.6 dB @ 1MHz
    -1.4 dB @ 5 MHz
    -2.1 dB @ 10 MHz
    -4.7 dB @ 50MHz
    -6.8 dB @ 100MHz
    -9.2 dB @ 180MHz
    -14.2 dB @ 400MHz
    -20.1 dB @ 750MHz
    -23.8 dB @ 1000MHz

  • Coax Center Conductor

    28 AWG 7/36 tinned copper

  • Dielectric

    Foam polyethylene
    0.063" (1.6mm)

  • Shield

    90% braid 38 AWG tinned copper

  • Coax Jacket Colors

    Red, green, blue, yellow, black

  • Outer Jacket

    PVC

  • Outer Jacket Color

    Dark Gray w/white lettering

  • Center Conductor

    0.015" (0.38mm)

  • Individual Coax

    0.108" (2.75mm)

  • Outside Diameter

    0.362" (9.2mm)

  • Impedance

    75Ohm

  • DC Resistance

    72.2Ohm per 1000', 237Ohm per km

  • Capacitance

    18.3pF per foot, 60pF per meter

  • Velocity of Propagation

    78%

  • Temperature

    68 Degree to 167 Degree F (- 20 Degree to 75 Degree C)

  • Ul

    CL2

  • CSA

    C(UL) CL2

  • Cable Length

    10' (3m)

  • UPC Code

    7291063036034

About Kramer Electronics C-GM/5BM

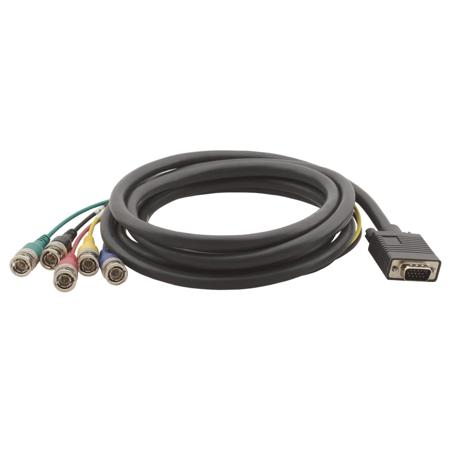

Kramer's C-GM/5BM is constructed of 5 mini coax cables with a molded 15-pin HD (M or F) on one end and 5 BNC (M or F) on the other. It converts between the two most common cabling formats used for routing computer graphic video signals, 15-pin HD, and 5 BNC.

Kramer Electronics C-GM/5BM Features

  • Quality Construction: Constructed using Kramer BC-5X high resolution mini coax cable, terminated with molded 15-pin HD connector on one end and 75Ohm BNC connectors on the other
  • Easy Installation: Models 6ft or longer have an 18in (460mm) long spread at the 5 BNC end to fit large routers/switchers such as the Sierra Pro 32 series
  • Varied Selection of Lengths: 1 to 100' (0.3 to 30.5m)

Warranty Information

This product has a limited warranty of 84 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior video with this 10' Kramer VGA to BNC breakout cable.
  • Enjoy optimal signal transfer with our high-quality display adapter cable.
  • This VGA cable ensures sharp, clear images for professional presentations.
  • Connect your VGA source to BNC displays easily with this reliable cable.
  • Achieve pristine video quality with 75Ohm impedance VGA to component cable.
  • Rely on this durable Kramer cable for long-lasting, high-performance connectivity.

What's in the box:

  • C-GM/5BM Molded 15-Pin HD VGA (M) to 5 BNC (M) Breakout Cable (10')
  • Kramer Electronics 7 Year Limited Warranty
