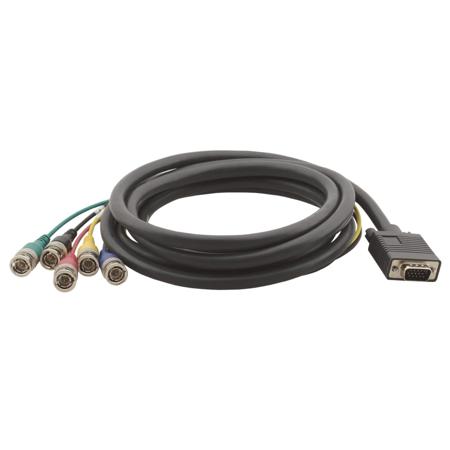

Kramer Electronics C-GM/5BM Molded 15-Pin HD VGA (M) to 5 BNC (M) Breakout Cable, 3'

SKU: KRCGM5BM3 MFR: C-GM/5BM-3
$20.00
$25.00
Save: $5 (20%)
Earn VIP Reward Points

Key Features

  • Experience superior video with this 3ft VGA to BNC breakout cable.
  • Enjoy optimal signal transfer with our 75Ohm impedance display adapter.
  • This premium Kramer cable supports resolutions up to 1000MHz bandwidth.
  • Easily connect VGA sources to BNC displays using this reliable adapter.
  • Achieve crystal-clear images with this low-loss, shielded display cable.
  • Perfect for professional AV setups, ensuring top-notch video quality.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kramer Electronics C-GM/5BM Specifications

  • Attenuation (DB/100')

    -0.6 dB @ 1MHz
    -1.4 dB @ 5 MHz
    -2.1 dB @ 10 MHz
    -4.7 dB @ 50MHz
    -6.8 dB @ 100MHz
    -9.2 dB @ 180MHz
    -14.2 dB @ 400MHz
    -20.1 dB @ 750MHz
    -23.8 dB @ 1000MHz

  • Coax Center Conductor

    28 AWG 7/36 tinned copper

  • Dielectric

    Foam polyethylene
    0.063" (1.6mm)

  • Shield

    90% braid 38 AWG tinned copper

  • Coax Jacket Colors

    Red, green, blue, yellow, black

  • Outer Jacket

    PVC

  • Outer Jacket Color

    Dark Gray w/white lettering

  • Center Conductor

    0.015" (0.38mm)

  • Individual Coax

    0.108" (2.75mm)

  • Outside Diameter

    0.362" (9.2mm)

  • Impedance

    75Ohm

  • DC Resistance

    72.2Ohm per 1000', 237Ohm per km

  • Capacitance

    18.3pF per foot, 60pF per meter

  • Velocity of Propagation

    78%

  • Temperature

    68 Degree to 167 Degree F (- 20 Degree to 75 Degree C)

  • Ul

    CL2

  • CSA

    C(UL) CL2

  • Cable Length

    3' (0.9m)

  • UPC Code

    7291063036010

About Kramer Electronics C-GM/5BM

Be at the forefront of technology with the Kramer's C-GM/5BM Molded 15-Pin HD VGA (M) to 5 BNC (M) Breakout Cable. This versatile and high-quality cable is designed to seamlessly convert VGA signals to component video signals, making it an essential tool for connecting your computer or other VGA output devices to TVs or displays with only component video input.

Constructed with five mini coax cables, this durable and reliable cable features a molded 15-pin HD (M or F) on one end and 5 BNC (M or F) on the other. This design ensures a high-quality signal, making it suitable for use in professional settings where signal integrity is paramount.

The C-GM/5BM cable is not just functional but also flexible, making it easy to install and use in various setups. It bridges the gap between the two most common cabling formats used for routing computer graphic video signals, the 15-pin HD, and 5 BNC.

Experience the Kramer Electronics difference with this reliable, high-quality VGA to BNC breakout cable. It's more than just a cable; it's a solution for your audio and video needs.

Kramer Electronics C-GM/5BM Features

  • Quality Construction: Constructed using Kramer BC-5X high resolution mini coax cable, terminated with molded 15-pin HD connector on one end and 75Ohm BNC connectors on the other
  • Easy Installation: Models 6ft or longer have an 18in (460mm) long spread at the 5 BNC end to fit large routers/switchers such as the Sierra Pro 32 series
  • Varied Selection of Lengths: 1 to 100' (0.3 to 30.5m)

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Experience superior video with this 3ft VGA to BNC breakout cable.
  • Enjoy optimal signal transfer with our 75Ohm impedance display adapter.
  • This premium Kramer cable supports resolutions up to 1000MHz bandwidth.
  • Easily connect VGA sources to BNC displays using this reliable adapter.
  • Achieve crystal-clear images with this low-loss, shielded display cable.
  • Perfect for professional AV setups, ensuring top-notch video quality.

What's in the box:

  • C-GM/5BM Molded 15-Pin HD VGA (M) to 5 BNC (M) Breakout Cable (3')
  • Kramer Electronics 7 Year Limited Warranty
