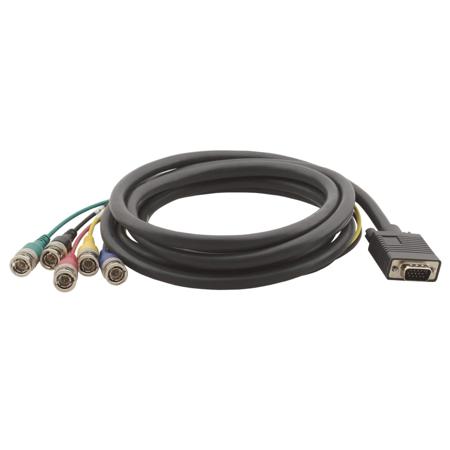

Kramer Electronics C-GM/5BM Molded 15-Pin HD VGA (M) to 5 BNC (M) Breakout Cable, 6'

SKU: KRCGM5BM6 MFR: C-GM/5BM-6
$17.60
$22.00
Save: $4.4 (20%)
Earn VIP Reward Points

Key Features

  • Achieve optimal video quality with this 6' VGA to BNC breakout cable.
  • Enjoy reliable connectivity with our molded 15-pin HD VGA to 5 BNC cable.
  • Use this display adapter cable for clear, crisp video signal transfers.
  • Experience superior signal integrity with impedance at 75Ohm for video.
  • This Kramer cable ensures compatibility with a variety of display setups.
  • Get peace of mind with a 7-year warranty on this Kramer VGA breakout cable.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.99

2 Year

$4.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics C-GM/5BM Specifications

  • Attenuation (DB/100')

    -0.6 dB @ 1MHz
    -1.4 dB @ 5 MHz
    -2.1 dB @ 10 MHz
    -4.7 dB @ 50MHz
    -6.8 dB @ 100MHz
    -9.2 dB @ 180MHz
    -14.2 dB @ 400MHz
    -20.1 dB @ 750MHz
    -23.8 dB @ 1000MHz

  • Coax Center Conductor

    28 AWG 7/36 tinned copper

  • Dielectric

    Foam polyethylene
    0.063" (1.6mm)

  • Shield

    90% braid 38 AWG tinned copper

  • Coax Jacket Colors

    Red, green, blue, yellow, black

  • Outer Jacket

    PVC

  • Outer Jacket Color

    Dark Gray w/white lettering

  • Center Conductor

    0.015" (0.38mm)

  • Individual Coax

    0.108" (2.75mm)

  • Outside Diameter

    0.362" (9.2mm)

  • Impedance

    75Ohm

  • DC Resistance

    72.2Ohm per 1000', 237Ohm per km

  • Capacitance

    18.3pF per foot, 60pF per meter

  • Velocity of Propagation

    78%

  • Temperature

    68 Degree to 167 Degree F (- 20 Degree to 75 Degree C)

  • Ul

    CL2

  • CSA

    C(UL) CL2

  • Cable Length

    6' (1.8m)

  • UPC Code

    7291063036027

About Kramer Electronics C-GM/5BM

Let the Kramer C-GM/5BM Molded 15-Pin HD VGA (M) to 5 BNC (M) Breakout Cable, measuring 6 feet in length, be your solution for seamless video signal conversion. This high-quality cable is expertly constructed with five mini coaxial cables, ensuring robust and reliable data transmission.

One end of the cable features a molded 15-pin HD VGA male connector, designed for compatibility with a wide range of video devices. The other end is equipped with five BNC male connectors, a common format for professional video and audio applications.

This versatile cable is ideal for routing computer graphic video signals, bridging the gap between the two most prevalent cabling formats, 15-pin HD VGA, and 5 BNC. Whether you're setting up a home theater system, professional video editing suite, or a high-end gaming rig, the Kramer C-GM/5BM cable provides the connectivity and performance you need.

Experience the difference in quality and reliability with the Kramer C-GM/5BM Molded 15-Pin HD VGA (M) to 5 BNC (M) Breakout Cable. It's more than just a cable; it's a key component in your video signal chain.

Kramer Electronics C-GM/5BM Features

  • Quality Construction: Constructed using Kramer BC-5X high resolution mini coax cable, terminated with molded 15-pin HD connector on one end and 75Ohm BNC connectors on the other
  • Easy Installation: Models 6ft or longer have an 18in (460mm) long spread at the 5 BNC end to fit large routers/switchers such as the Sierra Pro 32 series
  • Varied Selection of Lengths: 1 to 100' (0.3 to 30.5m)

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Achieve optimal video quality with this 6' VGA to BNC breakout cable.
  • Enjoy reliable connectivity with our molded 15-pin HD VGA to 5 BNC cable.
  • Use this display adapter cable for clear, crisp video signal transfers.
  • Experience superior signal integrity with impedance at 75Ohm for video.
  • This Kramer cable ensures compatibility with a variety of display setups.
  • Get peace of mind with a 7-year warranty on this Kramer VGA breakout cable.

What's in the box:

  • C-GM/5BM Molded 15-Pin HD VGA (M) to 5 BNC (M) Breakout Cable (6')
  • Kramer Electronics 7 Year Limited Warranty
