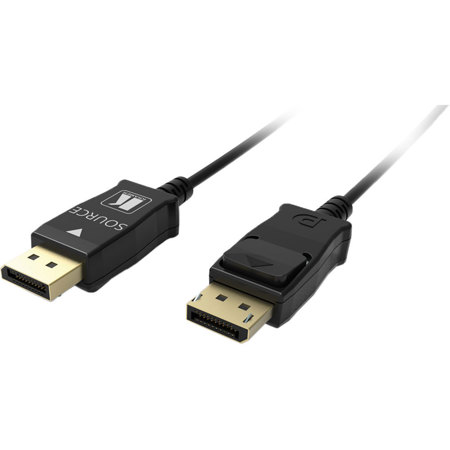

Kramer Electronics 230' Active Optical DisplayPort Male Cable, 28AWG

SKU: KRCLSACDP230 MFR: CLS-AOCDP-230
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this 230' DisplayPort cable, ensuring crisp audio.
  • Enjoy seamless compatibility with HDCP 2.2, EDID, and DPCP using this DisplayPort cable.
  • This durable DisplayPort cable supports up to 4K at 60Hz, perfect for high-resolution needs.
  • Achieve fast transfer speeds up to 21.6 Gbps with our reliable DisplayPort cable solution.
  • Confidently connect devices with our DisplayPort cable, tested to withstand a 22 lbs pull.
  • This DisplayPort cable supports up to 8 channels of PCM audio for rich, immersive sound.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics 230' Active Optical DisplayPort Male Cable, 28AWG Specifications

Overall

Overall

Jump to...
  • Max. Resolution

    4K 60Hz 4:4:4 (3840x2160 & 4096x2160)

  • Max. Data Rate

    21.6 Gbps (HBR2)

  • Audio

    Supports up to 8 channels of 16 or 24bits linear PCM & 32 to 192KHz sampling rate

  • DisplayPort Support

    HDCP 2.2, EDID and DPCP

Construction

Jump to...
  • Connectors

    Male DisplayPort gold plated

  • Cable Structure

    Hybrid Optical Fiber Cable

  • Fiber Optic

    Multi-mode fiber

  • Conductors

    6x 28AWG (7/0.127mm)

  • Outer Sheath Material

    LSHF

  • Outer Sheath Color

    Black

  • Outer Sheath Diameter

    3.4mm (0.13")

Physical

Jump to...
  • Cable Bending Radius

    6mm (0.24")

  • Connector Max. Pulling Strength

    22 lbs (9.98kg)

  • Max. Compression Load Resistance

    500N (50kg, 110 lbs)

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage Temperature

    -30 to 70 deg. C (-22 to 158 deg. F)

  • Operating Humidity

    5 - 85%

General

Jump to...
  • Standards Compliance

    LSHF (Compliance): IEC 60332-1, IEC 60754-1, IEC 61034-2
    RoHS: 2011/65/ EU

  • Cable Length

    230' (70.10m)

  • UPC Code

    7291063083533

About Kramer Electronics 230' Active Optical DisplayPort Male Cable, 28AWG

Why settle for less when you can experience superior connectivity with the Kramer's CLS-AOCDP DisplayPort 1.2a Active Optical Cable (AOC) This high-quality, durable cable is designed to provide a seamless link between your DisplayPort-enabled devices, supporting resolutions up to 4K 60Hz for an immersive viewing experience.

Engineered for long cable runs of up to 230 feet, this reliable DisplayPort cable eliminates the need for an external power supply or additional extenders, making your setup process effortless. Its 28AWG rating ensures optimal signal transmission, promising a stable and consistent connection even over extended distances.

The CLS-AOCDP is not just about performance, it's also designed with user convenience in mind. Its thin, flexible structure and small connector make it easy to install and manage, reducing clutter and ensuring a neat, professional setup.

Incorporating the latest advances in DisplayPort 1.2a technology, this cable supports 3D, HDCP, EDID, and DPCP, enhancing your multimedia experience. Whether you're connecting a computer monitor, TV, or projector, the Kramer's CLS-AOCDP DisplayPort 1.2a Active Optical Cable is your affordable solution for high-quality, reliable connectivity. Experience the difference with Kramer Electronics, a brand trusted by professionals worldwide.

Kramer Electronics 230' Active Optical DisplayPort Male Cable, 28AWG Features

  • Active DisplayPort 1.2a Cable
  • Video Resolution - up to 4K 60Hz (3840x2160 & 4096x2160)
  • High Data Transfer Rate - up to 21.6Gbps data rate with 5.4Gbps/lane (HBR2) link rate
  • Supports up to 8 channels of 16 or 24bits linear PCM & 32 to 192KHz sampling rate
  • HDCP 2.2 , EDID and DPCP compliant
  • No External Power - Powers the active units via the DisplayPort connector
  • Thin Construction - 3.4mm (0.13") diameter
  • Jacket Construction - Low smoke & halogen free
  • RoHS 2011/65/EU compliant
  • Varied Selection of Lengths - Available in versions from 33 to 328' (10 to 100m)

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior sound quality with this 230' DisplayPort cable, ensuring crisp audio.
  • Enjoy seamless compatibility with HDCP 2.2, EDID, and DPCP using this DisplayPort cable.
  • This durable DisplayPort cable supports up to 4K at 60Hz, perfect for high-resolution needs.
  • Achieve fast transfer speeds up to 21.6 Gbps with our reliable DisplayPort cable solution.
  • Confidently connect devices with our DisplayPort cable, tested to withstand a 22 lbs pull.
  • This DisplayPort cable supports up to 8 channels of PCM audio for rich, immersive sound.

What's in the box:

  • Kramer Electronics 230' Active Optical DisplayPort Male Cable
  • Kramer Electronics 1 Year Limited Warranty
