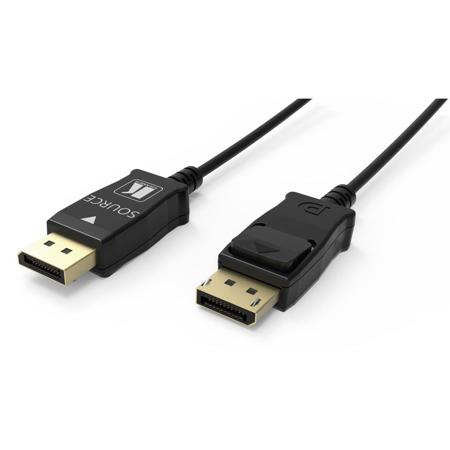

Kramer Electronics 50' Active Optical DisplayPort Male Cable, 28AWG

SKU: KRCLSAOCDP50 MFR: CLS-AOCDP-50
Earn VIP Reward Points

Key Features

  • Experience pristine audio with our DisplayPort cable, supporting up to 8 channels of PCM.
  • Enjoy stunning visuals: this DisplayPort cable supports resolutions up to 4K at 60Hz.
  • This 50' DisplayPort cable ensures a reliable connection for your high-resolution displays.
  • Our active optical DisplayPort cable maintains signal integrity over long distances, 50-feet.
  • Built to last: features a robust LSHF outer sheath, this DisplayPort cable is durable.
  • Supports HDCP 2.2, EDID, and DPCP for seamless compatibility with DisplayPort devices.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics 50' Active Optical DisplayPort Male Cable, 28AWG Specifications

Overall

Overall

Jump to...
  • Max. Resolution

    4K 60Hz 4:4:4 (3840x2160 & 4096x2160)

  • Max. Data Rate

    21.6 Gbps (HBR2)

  • Audio

    Supports up to 8 channels of 16 or 24bits linear PCM & 32 to 192KHz sampling rate

  • DisplayPort Support

    HDCP 2.2, EDID and DPCP

Construction

Jump to...
  • Connectors

    Male DisplayPort gold plated

  • Cable Structure

    Hybrid Optical Fiber Cable

  • Fiber Optic

    Multi-mode fiber

  • Conductors

    6x 28AWG (7/0.127mm)

  • Outer Sheath Material

    LSHF

  • Outer Sheath Color

    Black

  • Outer Sheath Diameter

    3.4mm (0.13")

Physical

Jump to...
  • Cable Bending Radius

    6mm (0.24")

  • Connector Max. Pulling Strength

    22 lbs (9.98kg)

  • Max. Compression Load Resistance

    500N (50kg, 110 lbs)

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage Temperature

    -30 to 70 deg. C (-22 to 158 deg. F)

  • Operating Humidity

    5 - 85%

General

Jump to...
  • Standards Compliance

    LSHF (Compliance): IEC 60332-1, IEC 60754-1, IEC 61034-2
    RoHS: 2011/65/ EU

  • Cable Length

    50' (15.24m)

  • UPC Code

    7291063083496

About Kramer Electronics 50' Active Optical DisplayPort Male Cable, 28AWG

Kramer's CLS-AOCDP is a plug-and-play DisplayPort 1.2a active optical cable (AOC). It offers the easiest install solution for DisplayPort, supporting resolutions up to 4K 60Hz over long cable runs of up to 50' without the need for an external power supply or additional extenders. With its thin, flexible cable and small connector, the AOCDP delivers ultimate reliability and convenience. With Kramer's AOCDP, user experience is extremely maximized with its integrator-oriented features along with the latest advances in DisplayPort 1.2a technology including 3D, HDCP, EDID, DPCP and 4K 60Hz resolution.

Kramer Electronics 50' Active Optical DisplayPort Male Cable, 28AWG Features

  • Active DisplayPort 1.2a Cable
  • Video Resolution - up to 4K 60Hz (3840x2160 & 4096x2160)
  • High Data Transfer Rate - up to 21.6Gbps data rate with 5.4Gbps/lane (HBR2) link rate
  • Supports up to 8 channels of 16 or 24bits linear PCM & 32 to 192KHz sampling rate
  • HDCP 2.2 , EDID and DPCP compliant
  • No External Power - Powers the active units via the DisplayPort connector
  • Thin Construction - 3.4mm (0.13") diameter
  • Jacket Construction - Low smoke & halogen free
  • RoHS 2011/65/EU compliant
  • Varied Selection of Lengths - Available in versions from 33 to 328' (10 to 100m)

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience pristine audio with our DisplayPort cable, supporting up to 8 channels of PCM.
  • Enjoy stunning visuals: this DisplayPort cable supports resolutions up to 4K at 60Hz.
  • This 50' DisplayPort cable ensures a reliable connection for your high-resolution displays.
  • Our active optical DisplayPort cable maintains signal integrity over long distances, 50-feet.
  • Built to last: features a robust LSHF outer sheath, this DisplayPort cable is durable.
  • Supports HDCP 2.2, EDID, and DPCP for seamless compatibility with DisplayPort devices.

What's in the box:

  • Kramer Electronics 50' Active Optical DisplayPort Male Cable
  • Kramer Electronics 1 Year Limited Warranty
