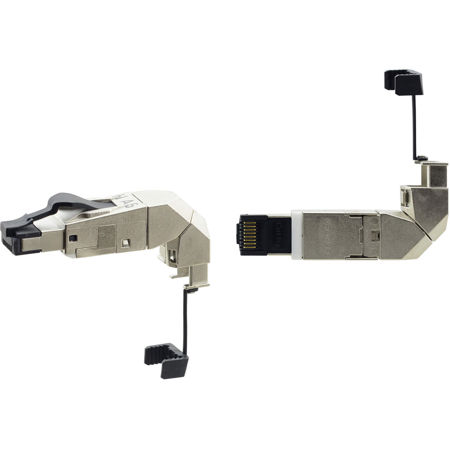

Kramer Electronics CON-FIELD Field Assembly 180 Degree Shielded CAT6A RJ-45 Connector for CAT Cable, Single

SKU: KRCONFIELD MFR: 99-9210180
$12.80
$16.00
Save: $3.2 (20%)
Earn VIP Reward Points

Key Features

  • Ensure fast, reliable connections with this shielded CAT6A RJ-45 connector for your Ethernet cables.
  • Achieve up to 10 Gbit speeds with this IEEE 802.3an compliant CAT6A connector, ideal for high-bandwidth use.
  • This durable RJ-45 connector supports PoE and UPoE, perfect for powering devices over Ethernet cables.
  • Terminate stranded wire with ease using this field assembly CAT6A RJ-45 connector, designed for AWG 27/7-22/7.
  • Built for longevity, this CAT6A RJ-45 connector offers 750+ mating cycles, ensuring a reliable connection.
  • Use in various environments; this shielded RJ-45 connector is compliant with office, industrial, & home standards.
See More Product Details
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kramer Electronics CON-FIELD Specifications

  • Shielding

    Shielded

  • Transmission Technology

    Copper

  • Color

    Black

  • Capabilities

    Multi-port capable

  • Access

    Cable Access/Outlet
    CONFIELD: 180 Degree

  • Category

    TIA: 6A

  • Class

    ISO/IEC
    EA

  • Contacts

    Contacts
    CuSn (tinned bronze)
    Contact Finish
    Ni + Au (nickel gold)

  • Latches

    Plastic

  • Building Platform

    Office Buildings
    ISO/IEC 11801 Ed. 2.2:201106; DIN EN 501732:201109; TIA/EIA 568C

    Industrial Area
    ISO/IEC 24702; DIN EN 501733:201109; TIA/EIA 1005

    Living Units
    ISO/IEC 15018; DIN EN 501734: 201109; TIA/EIA 570B

  • CE

    Compliant

  • RoHS

    Compliant

  • PoE Compatibility

    IEEE 802.3af
    IEEE 802.3at

  • UPoE Ready

    Yes

  • HDBaseT

    Yes

  • Transmission Rate

    IEEE 802.3an (up to 10 Gbit)

  • Termination

    Termination Stranded Wire
    Conductor Cross Section AWG: AWG 27/722/7
    Conductor Cross Section: 0.004 x 0.013" (0.111 x 0.355mm)
    Conductor Diameter: 0.018 x 0.030" (0.457 x 0.762mm)

  • Sheath

    Cable Sheath Diameter
    0.217 x 0.413" (5.5 x 10.5mm)

  • Electrical

    Rated Voltage
    50 V (max.)

    Contact Resistance
    65.6' (20m) (max.)

    Insulation Resistance
    1,640.4' (500m) (min.)

  • Dielectric Strength

    Conductor Shield
    1500 VDC

  • Mating Cycles

    Life-Number of Mating Cycles
    750 min.

  • Strain Relief

    Latching clip

  • Temperature

    Operating: 40 to 158 Degree F (40 to 70 Degree C)
    Storage: 40 to 158 Degree F (40 to 70 Degree C)

  • Dimensions

    1.960 x 0.543 x 0.650" (49.8 x 13.8 x 16.5mm)

  • UPC Code

    7291063076610

About Kramer Electronics CON-FIELD

Find the pinnacle of connectivity and data integrity with the CON-FIELD Field Assembly 180 Degree Shielded CAT6A RJ-45 Connector, meticulously engineered for CAT cables. This high-quality connector is an essential component for professionals and enthusiasts seeking a durable and reliable solution for their high-bandwidth network requirements.

Crafted with precision, the CON-FIELD connector boasts a robust design that eliminates the need for a crimping tool, streamlining the installation process and ensuring a secure, reliable connection without the hassle. Its sturdy construction is ideal for terminating Kramer LAN cables, providing a steadfast link for your networking needs.

The shielded CAT6A RJ-45 connector is specifically designed to offer superior protection against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring that your data transmission remains clear and uninterrupted. This is particularly crucial in environments with high levels of potential interference, making it a preferred choice for those who require consistent network performance.

Moreover, the connector's 180-degree shielded cable design not only enhances its protective capabilities but also facilitates easier cable routing. This thoughtful feature minimizes the risk of damage to the connector, contributing to its long-lasting reliability.

Suitable for a wide range of applications, including 10Gb Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE), and HDBaseT, the CON-FIELD connector is versatile and ready to meet the demands of networking, telecommunications, and audio/video installations.

With its combination of high-quality materials, user-friendly design, and exceptional shielding, the CON-FIELD Field Assembly 180 Degree Shielded CAT6A RJ-45 Connector stands out as a robust and reliable choice for ensuring optimal Ethernet protection and performance.

Kramer Electronics CON-FIELD Features

  • CON-FIELD - Fixed connector
  • Robust Zinc Die-cast Housing - For industrial use and a protected latch
  • Compact Design - Makes the connector multiport-capable while being fully shielded
  • Easy Assembly - Strain relief snapped on directly to stuffer cap and protected catch, no crimping tool needed
  • Reconnectable for Reuse
  • Transmission Characteristics - CAT 6A per ISO/IEC 11801 Ed.2.2:2011-06
  • Wide Uses - Suitable for 10Gb Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus and UPoE) and HDBaseT

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Ensure fast, reliable connections with this shielded CAT6A RJ-45 connector for your Ethernet cables.
  • Achieve up to 10 Gbit speeds with this IEEE 802.3an compliant CAT6A connector, ideal for high-bandwidth use.
  • This durable RJ-45 connector supports PoE and UPoE, perfect for powering devices over Ethernet cables.
  • Terminate stranded wire with ease using this field assembly CAT6A RJ-45 connector, designed for AWG 27/7-22/7.
  • Built for longevity, this CAT6A RJ-45 connector offers 750+ mating cycles, ensuring a reliable connection.
  • Use in various environments; this shielded RJ-45 connector is compliant with office, industrial, & home standards.

What's in the box:

  • CON-FIELD Field Assembly 180 Degree Shielded CAT6A RJ-45 Connector
  • Kramer Electronics 7 Year Limited Warranty
