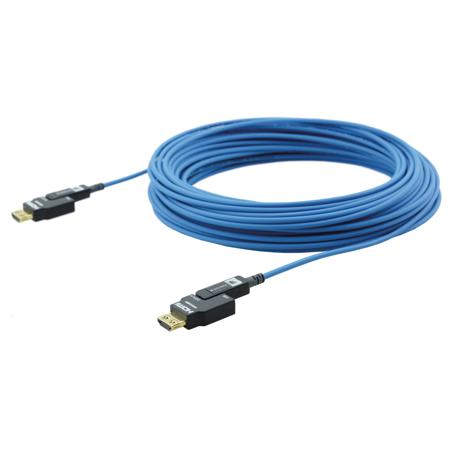

Kramer Electronics Plenum-Rated High-Speed Fiber Optic HDMI Cable, 33'
See all Kramer Electronics items

Kramer Electronics Plenum-Rated High-Speed Fiber Optic HDMI Cable with Removable Connectors, 33'

SKU: KRCPAOCHXL33
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Kramer Electronics ADC-HM/HF/PICO: Picture 1 regular
Kramer Electronics ADC-HM/HF/PICO HDMI (M) to HDMI (F) Adapter Cable, Ethernet
$15.20
Kramer Electronics C-HM/HM/FLAT/ETH: Picture 1 regular
Kramer Electronics C-HM/HM/FLAT/ETH Flat High-Speed HDMI Cable w/ Ethernet, 35'
$57.60
Kramer Electronics C-HM/HM/FLAT/ETH: Picture 1 regular
Kramer Electronics C-HM/HM/FLAT/ETH Flat HDMI (M to M) Cable with Ethernet, 25'
$42.40
Kramer Electronics C-HM/HM/FLAT/ETH: Picture 1 regular
Kramer Electronics C-HM/HM/FLAT/ETH Flat High-Speed HDMI Cable w/ Ethernet, 50'
$100.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics Plenum-Rated High-Speed Fiber Optic HDMI Cable, 33' Specifications

  • Video Resolution

    4K @60Hz 4:2:0, 4K@30Hz 4:4:4, 8Bit, full HD, 3D Deep Color

  • Max. Data Rate

    Up to 10.2Gbps

  • Supported Color Spaces

    RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601

  • Embedded Audio

    Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD

  • HDMI Compliance

    HDCP 2.2, EDID, CEC

  • Connectors

    Male HDMI Type D, 24K gold-plated

  • Cable Structure

    Hybrid optical fiber cable

  • FIBER OPTIC

    Multi-mode fiber

  • Conductors

    6x28AWG (7/0.127mm)

  • Outer Sheath Material

    LSHF or plenum

  • Outer Sheath Color

    Blue

  • Outer Sheath Diameter

    3.4mm

  • Cable Bending Radius

    6mm

  • Connector Max. Pulling Strength

    22 lbs (10kg)

  • Max. Compression Load Resistance

    500N 110 lbs (50kg)

  • Power Supply

    No external power supply needed (draws current from the source)

  • Power Consumption

    0.25W max

  • Operating Temperature

    +32-+122 Degree F (0-+50 Degree C)

  • Storage Temperature

    -22-+122 Degree F (0-+50 Degree C)

  • Operating Humidity

    5 - 85%

  • LSHF (Compliance)

    IEC 60332-1, IEC 60754-1, IEC 61034-2

  • Plenum (Compliance)

    CMP-OF

  • RoHS

    2011/65/ EU

About Kramer Electronics Plenum-Rated High-Speed Fiber Optic HDMI Cable, 33'

Kramer's CP-AOCH/XL is an Active Optical HDMI Cable for running 4K@60Hz (4:2:0), 4K@30Hz (4:4:4), over longer distances up to 100m (328ft) in a simple and practical way.The HDMI ends of this hybrid-fiber cable quickly detach leaving a much smaller head that can be run through conduit or other tight spaces with the included pulling capsule. DVI ends can be purchased separately. The AOCH cables are thinner, lighter and more flexible than copper or even standard optical cables.

They provide transparent EDID and HDCP support without signal attenuation. They also provide reduced risk of EMI and RFI interference to provide a perfect solution for critical AV installations that demand the highest signal integrity.

Kramer Electronics Plenum-Rated High-Speed Fiber Optic HDMI Cable, 33' Features

  • Lengths - 33'
  • Removable HDMI Connectors
  • Pull-Through Capsule
  • Supports HDCP 2.2
  • Video Resolution - 4K@60Hz (4:2:0), 4K@30Hz (4:4:4) 8-bit, full-HD, 3D Deep Color across all lengths
  • High Data Transfer Rate - Up to 10.2Gbps
  • Embedded Audio - PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
  • High-Quality Connectors - 24K gold-plated, corrosion-resistant and best possible connectivity
  • EMI & RFI Immunity
  • No External Power - Powers the active units via the HDMI connector, consumes only 0.25W (50mA @5V)
  • Thin Construction - 3.4mm (0.13") diameter
  • Small Bending Ratio - Only 6mm (0.24")
  • Jacket Construction - Low smoke & halogen free or UL CMP-OF (Plenum)
  • RoHS 2011/65/EU Compliant

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Lengths - 33'
  • Removable HDMI Connectors
  • Pull-Through Capsule
  • Supports HDCP 2.2
  • Video Resolution - 4K@60Hz (4:2:0), 4K@30Hz (4:4:4) 8-bit, full-HD, 3D Deep Color across all lengths
  • High Data Transfer Rate - Up to 10.2Gbps

What's in the box:

  • Plenum-Rated High-Speed Fiber Optic HDMI Cable with Removable Connectors (33')
  • Kramer Electronics 1 Year Limited Warranty
