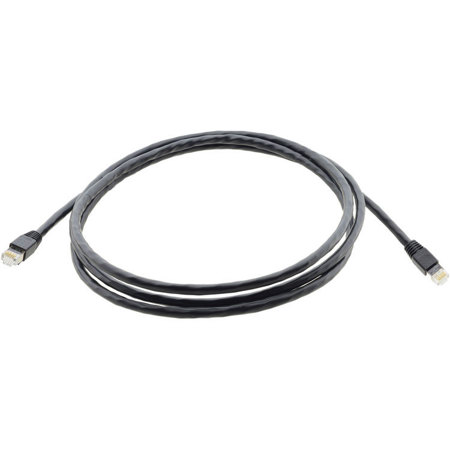

Kramer Electronics CP-UNIKAT Four-Pair CAT6A U/FTP Video & LAN Cable Assembly for DGKat, HDBaseT & LAN Systems, Plenum Rated, 25'

SKU: KRCPUNIKAT25 MFR: CP-UNIKAT-25
$30.40
$38.00
Save: $7.6 (20%)
Earn VIP Reward Points

Key Features

  • Experience superior connectivity with this 25' Kramer CAT6A U/FTP Ethernet cable.
  • This high-performance CAT6A cable ensures reliable data transfer for your network.
  • Enjoy peace of mind with our 7-year warranty on this durable Kramer Ethernet cable.
  • Perfect for HDBaseT & LAN systems, this cable supports high-speed data applications.
  • Plenum-rated jacket ensures safe in-wall installation of your Ethernet cable.
  • Get optimal signal quality with this shielded twisted pair Kramer Ethernet cable.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$3.99

2 Year

$5.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics CP-UNIKAT Specifications

General

General

Jump to...
  • Cable Length

    25' (7.62m)

Conductors

Jump to...
  • Size

    4 x 2 x 23AWG

  • Material

    Annealed copper

  • Diameter

    0.59 +/- 0.01mm

Insulation

Jump to...
  • Material

    FEP

  • Diameter

    1.45 +/- 0.1 0mm

  • Color

    Per TIA/EIA 568-B (White/Blue, Blue, White/Brown, Brown, White/Orange, Orange, White/Green, Green)

Screening

Jump to...
  • Material

    Alu/PET FR per pair (Alu side out)
    Tinned copper

  • Diameter

    0.4 +/- 0.01mm

  • Material

    CMP PVC

  • Color

    Black

  • Diameter

    7.4 +/- 0.2mm

Mechanical

Jump to...
  • Maximum Pulling Tension

    100N

  • Bending Radius

    Installation 2.36" (60mm), installed 1.97" (50mm)

Environment Conditions

Jump to...
  • Temperature

    Storage/Transport/Installation: 32 Degree to 122Degree F (0 Degree to 50 DegreeC)
    Operating: -4 Degree to 140 Degree F (20 Degree to 60 Degree C)

Electrical

Jump to...
  • Impedance

    1-100MHz - 100 +/- 15Ohm, 1000-250MHz - 100 +/- 20Ohm, 250-650MHz - 100 +/- 25Ohm

  • Propagation Velocity

    0.72

  • Mutual Pair Capacitance

    <=42pF/m

  • Capacitance Unbalanced Pair/Ground

    <=1500pF/km

  • Max. Conductor DC Resistance

    <79.8Ohm/km

  • Pair Resistance Unbalance

    DC <1.5%

  • Dielectric Strength

    2.5kV DC (2s)

  • Insulation Resistance

    >5000MOhm/km

  • Voltage Rating

    30V

Standards Compliance

Jump to...
  • Electrical

    IEC 61156-5:2009, ISO/IEC 11801:2011, EN 50173, EN 50288, EIA/TIA 568-C.2 : 2009, UL 444

  • Fire performance

    UL-CMP (E308599)

  • RoHS

    2011 /65/EU

  • UPC Code

    7291063083861

About Kramer Electronics CP-UNIKAT

Explore the robust capabilities of the CP-UNIKAT Four-Pair CAT6A U/FTP Video & LAN Cable Assembly, a high-quality and durable solution for your networking needs. Manufactured by the reputable Kramer Electronics, this cable is designed to handle the latest technology signals, making it an ideal choice for professionals seeking reliable and efficient connectivity.

This CAT6A U/FTP cable assembly is specifically engineered for DGKat, HDBaseT, and LAN systems, offering seamless integration and superior performance. With its plenum rating, it's suitable for use in buildings with air handling systems, adhering to stringent safety standards and building codes.

The CP-UNIKAT cable is 25 feet long, providing ample length for various installation requirements. It features four individually screened twisted pairs, a design that ensures optimum signal performance and reduces interference. This makes it a flexible and easy-to-install solution for your networking projects.

Whether you're setting up a professional audio-video system or establishing a high-speed Ethernet network, the CP-UNIKAT Four-Pair CAT6A U/FTP Video & LAN Cable Assembly delivers reliable, high-quality performance you can trust.

Kramer Electronics CP-UNIKAT Features

  • Quality Construction - 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded Plenum rated outer jacketOptimized for Kramer Hardware - Use with any of Kramer's wide range of twisted pair digital transmitter-receiver sets (DGKat and HDBaseT)
  • High-Quality Shielded RJ-45 Connectors - 50u gold plated contacts
  • Varied Selection of Length - Available in versions of: 0.3m to 45.7m (1 to 150')

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Experience superior connectivity with this 25' Kramer CAT6A U/FTP Ethernet cable.
  • This high-performance CAT6A cable ensures reliable data transfer for your network.
  • Enjoy peace of mind with our 7-year warranty on this durable Kramer Ethernet cable.
  • Perfect for HDBaseT & LAN systems, this cable supports high-speed data applications.
  • Plenum-rated jacket ensures safe in-wall installation of your Ethernet cable.
  • Get optimal signal quality with this shielded twisted pair Kramer Ethernet cable.

What's in the box:

  • CP-UNIKAT Four-Pair CAT6A U/FTP Video & LAN Cable Assembly (25')
  • Kramer Electronics 7 Year Limited Warranty
