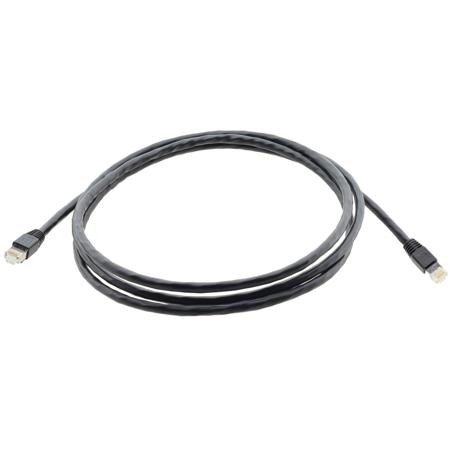

Kramer Electronics CP-UNIKAT 4-Pair CAT6A U/FTP Video & LAN Cable Assembly, 125'
See all Kramer Electronics items

Kramer Electronics CP-UNIKAT Four-Pair CAT6A U/FTP Plenum Rated Video & LAN Cable Assembly, 125'

SKU: KRCPUNIKT125
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Kramer Electronics BC-5ESLD 24-AWG Cat 5e-Solid Center UTP Cable, 1000', Black
$186.00
$148.80
undefined undefined: Picture 1 regular

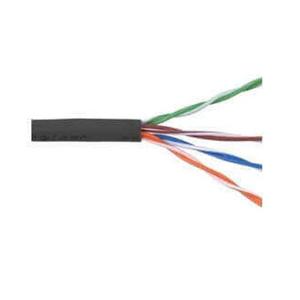

Kramer Electronics BC-5EST 24-AWG Cat 5e-Stranded Center UTP Cable, 1000', Black
$215.00
$172.00
undefined undefined: Picture 1 regular

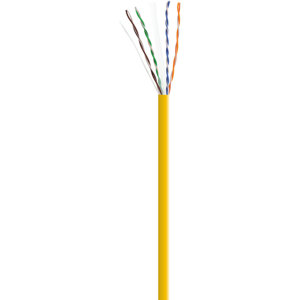

Kramer Electronics BCLS-31 1000' Cat 6A U/UTP Bulk Cable, Yellow
$580.80
undefined undefined: Picture 1 regular

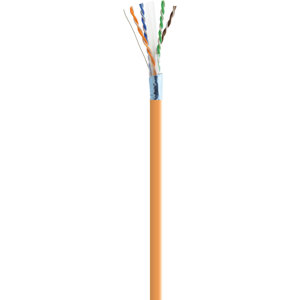

Kramer Electronics BCLS-33 1640' Cat 6A F/UTP Bulk Cable, Orange
$982.00
$785.60
undefined undefined: Picture 1 regular

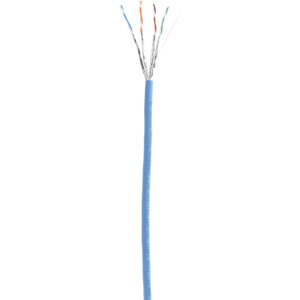

Kramer Electronics BC-UNIKAT 1640' 4-Pair CAT6A U/FTP Bulk Cable, Blue
$680.00
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Kramer Electronics CP-UNIKAT Specifications

General

General

Jump to...

  • Cable Length

    125' (38.1m)

Conductors

Jump to...

  • Size

    4 x 2 x 23 AWG

  • Material

    Annealed copper

  • Diameter

    0.59 +/- 0.01mm

Insulation

Jump to...

  • Material

    FEP

  • Diameter

    1.45 +/- 0.10mm

  • Color

    Per TIA/EIA 568-B (White/Blue, Blue, White/Brown, Brown, White/Orange, Orange, White/Green, Green)

Screening

Jump to...

  • Material

    Alu/PET FR per pair (Alu side out)
    Tinned copper

  • Diameter

    0.4 +/- 0.01mm

Jacket

Jump to...

  • Material

    CMP PVC

  • Color

    Black

  • Diameter

    7.4 +/- 0.2mm

Mechanical

Jump to...

  • Maximum Pulling Tension

    100N

  • Bending Radius

    Installation 2.36" (60mm), installed 1.97" (50mm)

Environmental Conditions

Jump to...

  • Temperature

    Storage/Transport/Installation : 32 Degree to 122 Degree F (0 Degree to 50 Degree C)
    Operating: -4 Degree to 140 Degree F (20 Degree to 60 Degree C)

Electrical

Jump to...

  • Impedance

    1-100MHz - 100 +/- 15Ohm, 1000-250MHz - 100 +/- 20Ohm, 250-650MHz - 100 +/- 25Ohm

  • Propagation Velocity

    72%

  • Mutual Pair Capacitance

    <=42pF/m

  • Capacitance Unbalanced Pair/Ground

    <=1500pF/km

  • Max. Conductor DC Resistance

    <79.8 Ohm/km

  • Pair Resistance Unbalance

    DC <1.5%

  • Dielectric Strength

    2.5kV DC (2s)

  • Insulation Resistance

    >5000 MOhm/km

  • Voltage Rating

    30V

Standard Compliance

Jump to...

  • Electrical

    IEC 61156-5:2009, ISO/IEC 11801:2011, EN 50173, EN 50288, EIA/TIA 568-C.2 : 2009, UL 444

  • Fire performance

    UL-CMP (E308599)

  • RoHS

    2011 /65/EU

Other

Jump to...

  • UPC Code

    7291063083670

About Kramer Electronics CP-UNIKAT

CP-UNIKAT is a unified U/FTP CAT6a plenum-rated cable that handles all of the latest technology signals including Kramer s DGKat technology, 4K HDBaseT or LAN applications. Four individually screened twisted pairs ensure optimum signal performance.

Kramer Electronics CP-UNIKAT Features

  • Quality Construction - 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded Plenum rated outer jacket
  • Optimized for Kramer Hardware - Use with any of Kramer's wide range of twisted pair digital transmitter-receiver sets (DGKat and HDBaseT)
  • High-Quality Shielded RJ-45 Connectors - 50u gold plated contacts
  • Varied Selection of Length - Available in versions of: 0.3m to 45.7m (1 to 150')

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-Quality Shielded RJ-45 Connectors - 50u gold plated contacts.
  • Varied Selection of Length - Available in versions of: 0.3m to 45.7m (1 to 150')

What's in the box:

  • CP-UNIKAT Four-Pair CAT6A U/FTP Plenum Rated Video & LAN Cable Assembly (125')
  • Kramer Electronics 7 Year Limited Warranty
