Kramer Electronics C-UNIKAT Four-Pair CAT6A U/FTP Video & LAN Cable Assembly for DGKat, HDBaseT and LAN Systems, 125', Blue

SKU: KRCUNIKAT125 MFR: 99-3460125
$62.40
Earn VIP Reward Points

Key Features

  • Experience reliable connectivity with this 125ft CAT6A Ethernet cable, perfect for HDBaseT systems.
  • Ensure fast data transfer with our shielded twisted pair (U/FTP) LAN cable, minimizing interference.
  • Enjoy a durable Kramer Ethernet cable, designed with a robust LSHF jacket for long-lasting performance.
  • This blue CAT6A cable assembly supports high bandwidth applications in your home or office network.
  • Our high-quality RJ45 connectors provide a secure and stable connection for all your networking needs.
  • Built to last, this Kramer CAT6A cable offers exceptional shielding and meets stringent industry standards.
See More Product Details

Product Options

Ships from Manufacturer?
Calculate Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$5.99

2 Year

$8.99

3 Year

$15.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics C-UNIKAT Specifications

General

General

Jump to...
  • Connector 1

    RJ45 Male

  • Connector 2

    RJ45 Male

  • Cable Length

    125' (38.1m)

Construction

Jump to...
  • Conductors

    4 x 2 x 23AWG, annealed copper

  • Outer Diameter

    0.56 +/- 0.022" (0.01mm)

  • Insulation Material

    Skin/foam/skin HDPE

  • Outer diameter

    1.33 +/- 0.052" (0.10mm)

  • Color

    Per TIA/EIA 568-B

  • Screening

    Alu/PET per pair (Alu side out)

  • Drain Wire

    90% tinned copper, outer diameter: 0.4 +/- 0.016" (0.01mm)

  • Jacket

    LSHF, blue RAL5012

Thickness

Jump to...
  • Diameter

    >=0.020" (0.5mm)

Diameter

Jump to...
  • Diameter

    7.2 +/- 0.284" (0.2mm)

Physical

Jump to...
  • Maximum Pulling Tension

    100N

  • Bending Radius

    Installation 2.36" (60mm)
    Installed 50mm 1.97" (50mm)

  • Thermal Characteristics

    Storage/transport/installation: 32 Degree F to 122 Degree F (0 Degree C to 50 Degree C)
    Operation: -4 Degree F to 140 Degree F (20 Degree C to 60 Degree C)

Regulatory

Jump to...
  • Electrical

    EIA/TIA 568A, ISO/IEC 11801

  • Fire Performance

    IEC 60332-1

  • Smoke Density

    IEC 61034

  • Halogen Free

    IEC 60754

Electrical

Jump to...
  • Impedance

    1-100MHz : 100 +/- 15Ohm
    100-250MHz : 100 +/- 20Ohm
    250-500MHz : 100 +/- 50Ohm

  • Propagation Velocity

    0.76

  • Mutual Pair Capacitance

    <=42pF/m

  • Capacitance Unbalanced Pair/Ground

    <=1500pF/km

  • Max. Conductor DC Resistance

    <79.8Ohm/km

  • Pair Resistance Unbalance

    DC <1.5%

  • Dielectric Strength

    2.5kV DC (2s)

  • Insulation Resistance

    >5000MOhm/km

  • Voltage Rating

    30V

  • UPC Code

    7291063081386

About Kramer Electronics C-UNIKAT

It's the Kramer's C-UNIKAT cable, a high-performance CAT6A U/FTP Video & LAN Cable Assembly, designed to seamlessly handle the latest technology signals. This 125-foot blue cable is a unified CAT6A solution, engineered with four individually screened twisted pairs to ensure superior signal performance.

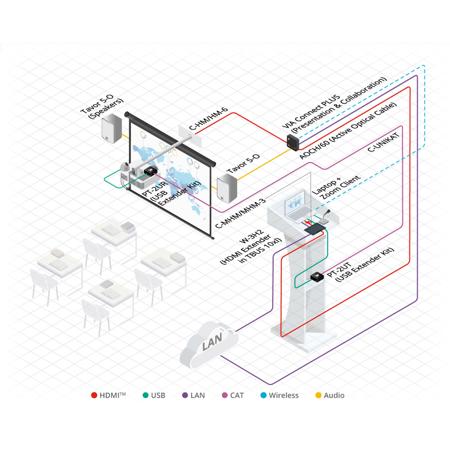

Ideal for DGKat, HDBaseT, and LAN systems, this cable is capable of running Kramer's proprietary DGKat technology, supporting 4K HDBaseT technology, and accommodating various LAN applications. Its robust construction and advanced features make it a reliable choice for high-speed data and video transmission.

The C-UNIKAT cable's U/FTP (Unshielded Foiled Twisted Pair) design provides an additional layer of protection against electromagnetic interference, ensuring a stable and uninterrupted signal. Whether you're setting up a professional video system or a high-speed LAN network, the Kramer's C-UNIKAT Four-Pair CAT6A U/FTP Video & LAN Cable Assembly is a versatile and efficient solution.

Kramer Electronics C-UNIKAT Features

  • copper conductors are cabled together in an unshielded outer jacket
  • Optimized for Kramer Hardware - Use with any of Kramer's wide range of twisted pair digital transmitter-receiver sets (DGKat and HDBaseT)
  • High-Quality Shielded RJ-45 Connectors - 50u gold plated contacts
  • Varied Selection of Length - 1.8 to 100m (6-328ft)

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Experience reliable connectivity with this 125ft CAT6A Ethernet cable, perfect for HDBaseT systems.
  • Ensure fast data transfer with our shielded twisted pair (U/FTP) LAN cable, minimizing interference.
  • Enjoy a durable Kramer Ethernet cable, designed with a robust LSHF jacket for long-lasting performance.
  • This blue CAT6A cable assembly supports high bandwidth applications in your home or office network.
  • Our high-quality RJ45 connectors provide a secure and stable connection for all your networking needs.
  • Built to last, this Kramer CAT6A cable offers exceptional shielding and meets stringent industry standards.

What's in the box:

  • C-UNIKAT Four-Pair CAT6A U/FTP Video & LAN Cable Assembly for DGKat
  • HDBaseT and LAN Systems (125'/Blue)
  • Kramer Electronics 7 Year Limited Warranty
