Kramer Electronics 3' Four-Pair CAT6A U/FTP 4x2x 23AWG Cable

SKU: KRCUNIKAT3 MFR: 99-3460003
$11.20
Earn VIP Reward Points

Key Features

  • Experience superior connectivity with this 3-foot Kramer CAT6A Ethernet cable.
  • Ensure reliable, high-speed data transfer with this durable CAT6A cable, 23AWG.
  • This high-performance Kramer Ethernet cable supports bandwidth-intensive applications.
  • Enjoy a secure network connection; this shielded U/FTP cable reduces signal interference.
  • Built to last, this Kramer CAT6A cable offers long-term performance and reliability.
  • Perfect for home or office, this 3ft Ethernet cable offers optimal connectivity.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kramer Electronics 3' Four-Pair CAT6A U/FTP 4x2x 23AWG Cable Specifications

  • Conductors

    4x 2 x 23AWG, annealed copper

  • Outer Diameter

    0.56+/- 0.01mm (0.022in)
    1.33 +/- 0.10mm (0.052in)

  • Insulation Material

    Skin/foam/skin HDPE

  • Color

    Per TIA/EIA 568-B

  • Screening

    Alu/PET per pair (Alu side out)

  • Drain Wire

    0.4 +/- 0.01mm (0.016in)

  • Jacket

    LSHF, blue RAL5012

  • Thickness

    =0.5mm (0.020in)

  • Diameter

    7.2 +/- 0.2mm (0.284in)

  • Maximum Pulling Tension

    100N

  • Bending Radius

    Installation 60mm (2.36"), installed 50mm (1.97")

  • Thermal Characteristics

    Storage/transport/installation 0 to 50 deg. C (32 to 122 deg. F), operation -20 to 60 deg. C (-4 to 140 deg. F)

  • Regulatory

    Electrical: EIA/TIA 568A, ISO/IEC 11801
    Fire Performance: IEC 60332-1
    Smoke Density: IEC 61034
    Halogen Free: IEC 60754

  • Impedance

    1-100MHz : 100 +/- 15 Ohms
    100-250MHz : 100 +/- 20 Ohms
    250-500MHz : 100 +/- 50 Ohms

  • Propagation Velocity

    0.76

  • Mutual Pair Capacitance

    <=42pF/m

  • Capacitance Unbalanced Pair/Ground

    <=1500pF/km

  • Max. Conductor DC Resistance

    <79.8 Ohms/km

  • Pair Resistance Unbalance

    DC <1.5%

  • Dielectric Strength

    2.5kV DC (2s)

  • Insulation Resistance

    >5000M Ohms/km

  • Voltage Rating

    30V

  • Length

    3' (0.91m)

  • UPC Code

    7291063089009

About Kramer Electronics 3' Four-Pair CAT6A U/FTP 4x2x 23AWG Cable

Experience unparalleled connectivity and performance with Kramer's C-UNIKAT cable, a premier unified CAT6A solution designed to handle the most advanced technology signals with ease. This robust 3-foot U/FTP CAT6A cable features four individually screened twisted pairs, ensuring that whether you're running Kramer's proprietary DGKat technology, 4K HDBaseT technology, or any LAN applications, you can expect optimum signal performance and minimal interference.

Crafted with meticulous attention to detail, the cable boasts quality construction with four shielded twisted pairs (U/FTP) of 23AWG solid copper conductors, expertly cabled together within a durable, unshielded outer jacket. This design not only provides a reliable and stable connection but also enhances the cable's flexibility, making it suitable for a variety of networking environments.

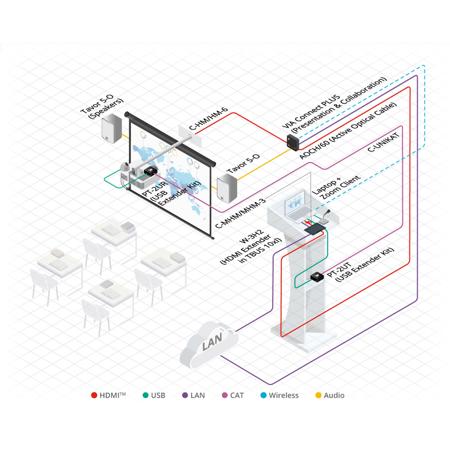

The C-UNIKAT cable is optimized for seamless integration with Kramer's extensive range of twisted pair digital transmitter-receiver sets, including DGKat and HDBaseT technologies. This synergy between cable and hardware amplifies the potential for high-speed data transfer and high-definition signal transmission, ensuring that your network operates at peak efficiency.

To further elevate its performance, the cable is equipped with high-quality shielded RJ-45 connectors, featuring 50u gold-plated contacts. These premium connectors offer exceptional resistance to corrosion, guarantee a secure connection, and promote the longevity of your network's infrastructure.

Whether you're setting up a network in a residential or commercial space, Kramer's C-UNIKAT cable is the reliable, high-quality, and flexible choice that professionals trust. Its ability to support faster speeds and more data transfer positions it as a superior option for those who demand the best in Ethernet networking solutions. Choose Kramer's C-UNIKAT for a durable, high-performance cabling experience that keeps you connected to the future of technology.

Kramer Electronics 3' Four-Pair CAT6A U/FTP 4x2x 23AWG Cable Features

  • Unified CAT6A cable optimized for 4K HDBaseT and DGKat technology
  • Four individually screened twisted pairs (U/FTP) with 23AWG solid copper conductors
  • High-speed Ethernet performance with up to 10Gbps data transfer rate
  • Durable and flexible design for reliable residential and commercial networking
  • Premium shielded RJ-45 connectors with 50u gold-plated contacts for corrosion resistance
  • Compatible with Kramer's range of twisted pair digital transmitter-receiver sets

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Experience superior connectivity with this 3-foot Kramer CAT6A Ethernet cable.
  • Ensure reliable, high-speed data transfer with this durable CAT6A cable, 23AWG.
  • This high-performance Kramer Ethernet cable supports bandwidth-intensive applications.
  • Enjoy a secure network connection; this shielded U/FTP cable reduces signal interference.
  • Built to last, this Kramer CAT6A cable offers long-term performance and reliability.
  • Perfect for home or office, this 3ft Ethernet cable offers optimal connectivity.

What's in the box:

  • Kramer Electronics 3' Four-Pair CAT6A U/FTP 4x2x 23AWG Cable
  • Kramer Electronics 7 Year Limited Warranty
