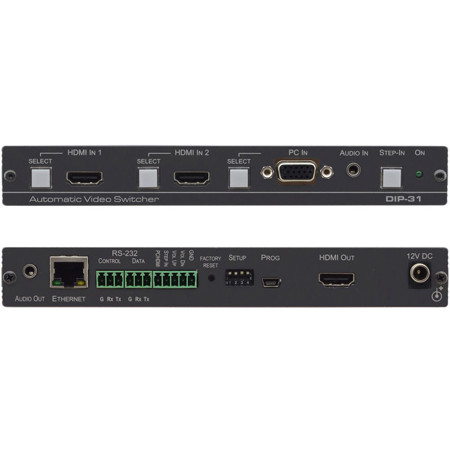

Kramer Electronics DIP-31 4K UHD HDMI and VGA Computer Graphics Automatic Video Switcher with Maestro Room Automation

SKU: KRDIP31 MFR: 20-8035801290
Earn VIP Reward Points

Key Features

  • Enjoy reliable streaming with this 4K UHD HDMI & VGA automatic video switcher.
  • Experience wide compatibility; easily switch between HDMI and VGA sources.
  • Simplify presentations with easy setup & automatic input switching functionality.
  • This video switcher offers good value, integrating seamlessly with existing systems.
  • Control your room's automation via Kramer Maestro, enhancing your presentation setup.
  • Ensure high resolution video output for clear, professional displays every time.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics DIP-31 Specifications

  • Inputs

    2 HDMI on HDMI connectors, 1 VGA on a 15-pin HD (F) connector, 1 unbalanced stereo audio 1V RMS (nominal) on a 3.5mm mini jack

  • Outputs

    1 HDMI connector, 1 unbalanced stereo audio 1V RMS (nominal) on a 3.5mm mini jack

  • Ports

    1 Ethernet on an RJ-45 connector, 1 RS-232 3-pin terminal block control port, 1 RS-232 3-pin terminal block data port (internal use), 1 USB on mini USB connector

  • Controls

    Remote switches for input switching, step-in, volume control and device reset switch

  • Standards

    HDMI with Deep Color, x.v.Color and 3D, HDCP-works with sources that support HDCP repeater mode

  • Maximum Analog Audio Levels

    3.1Vpp

  • SNR

    -70dBu

  • THD

    0.00013

  • Room Automation

    Kramer Maestro V1.0

  • Supported Web Browsers

    Windows 7 and higher: Internet Explorer (32/64 bit) version 11, Firefox version 30, Chrome version 35
    MAC:Chrome version 35, Firefox version 27, Safari version 7; Android OS: Chrome version 35; iOS:Chrome version 35, Safari version 7

  • Power Consumption

    12V DC, 600mA

  • Cooling

    Convection

  • Enclosure Type

    Aluminum

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Environmental Regulatory Compliance

    Complies with appropriate requirements of RoHs and WEEE

  • Dimensions (WxDxH)

    18.75 x 11.50 x 2.54cm (7.38 x 4.53 x 1.00")

  • Weight

    0.4kg (0.88 lbs) approx.

  • UPC Code

    7290108021394

About Kramer Electronics DIP-31

The DIP-31 is a 4K at 60Hz (4:2:0) automatic switcher for HDMI, VGA, Ethernet, data and unbalanced audio signals. It supports various modes of input selection and transmit the signal via HDMI cable to a compatible receiver (for example the VS-62H or a display/projector). The device is a Step-in commander when connected to a matrix switcher that supports Step-in over HDMI such as the VS-62H. It also features RS-232 commands to support monitor/projector on/off.

Simple and Powerful Maestro Room Automation
Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including input/output connectivity, routing and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.

Applications
• Display systems requiring simple, automatic input selection
• Multimedia and presentation source selection
• Video distribution in hotel rooms and schools

Kramer Electronics DIP-31 Features

  • Simple and Powerful Maestro 1.0 Room Automation
  • Resolution support up to 4K at 60Hz (4:2:0)
  • Max. data rate - 10.2Gbps (3.4Gbps per graphic channel)
  • Automatic analog audio detection & embedding
  • I-EDIDPro Kramer Intelligent EDID Processing
  • Data equalization and reclocking
  • Local balanced audio de-embedding
  • Support for digital audio formats
  • Local Step-In switching
  • HDTV Compatible
  • HDCP Compliant - With sources that support HDCP repeater mode
  • HDMI Support - Deep Color, x.v.Color and 3D
  • Automatic Live Input Detection - Based on video clock presence
  • Automatic Input Selection - Based on priority selection or last connected input
  • Manual Input Selection
  • Step-in Support
  • Convenient Control - Via Kramer Protocol 3000 and embedded Web pages over a LAN
  • RS-232 Command Support
  • EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Enjoy reliable streaming with this 4K UHD HDMI & VGA automatic video switcher.
  • Experience wide compatibility; easily switch between HDMI and VGA sources.
  • Simplify presentations with easy setup & automatic input switching functionality.
  • This video switcher offers good value, integrating seamlessly with existing systems.
  • Control your room's automation via Kramer Maestro, enhancing your presentation setup.
  • Ensure high resolution video output for clear, professional displays every time.

What's in the box:

  • Kramer Electronics DIP-31 4K UHD HDMI and VGA Computer Graphics Automatic Video Switcher
  • Power Supply
  • ADC-DPM/HF DisplayPort (M) to HDMI (F) Adapter Cable
  • DIP-30BP Black Panel
  • 4x Rubber Feet
  • Set of Rack Ears
  • Kramer Electronics 7 Year Limited Warranty
