Professional display systems requiring video signal routing
Broadcast, presentation and production facilities, as well as monitoring in large duplication systems
Rental and staging
2 HDBaseT TP on RJ-45 connectors
2 Unbalanced audio on a 16 pin terminal block
2 RS-232 and 2 IR on a 10 pin terminal block for bidirectional RS-232 and IR extension
1 Ethernet on an RJ-45 connector for bidirectional Ethernet extension
Video: 3.4Gbps
Serial data: 115200
Video: 10.2Gbps
Serial data: 115200
Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p at 60Hz at 24bpp)
Note: When using Kramer HDBaseT cables
Supported
Up to 100Mbps extended line rate bandwidth
300 to 115200 baud rate
17W
0 to 40 deg. C (32 to 104 deg. F)
-40 to 70 deg. C (-40 to 158 deg. F)
10% to 90%, RHL non-condensing
HDCP 1.4, HDMI 1.3a, HDBaseT
CE
Complies with appropriate requirements of RoHs and WEEE
7.48 x 5.12 x 0.79" (19.00 x 13.00 x 2.01cm)
0.3kg (0.66 lbs)
7291063084325

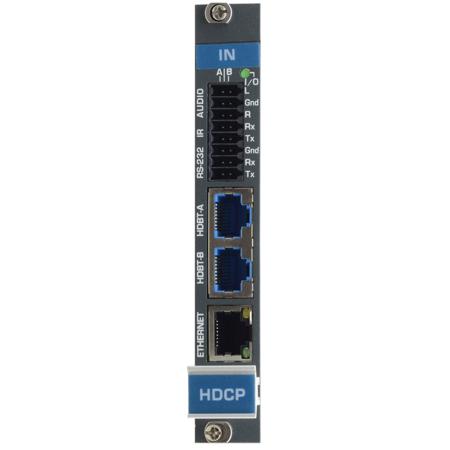

The DTAXR-IN2-F16 represents the pinnacle of high-quality, durable, and advanced 2-channel 4K60 4:2:0 HDMI & Audio HDBaseT input card technology. Designed by the reputable Kramer Electronics, this innovative card is engineered to seamlessly integrate into the VS-1616 Series Modular Multi-Format Digital Matrix Switchers, providing a reliable solution for professional-grade audio and video applications.
With the capability to input two extended reach HDBaseT signals, the DTAXR-IN2-F16 excels in transmitting crystal-clear 4K video at 60 frames per second within a 4:2:0 color space, alongside high-fidelity audio. This card is particularly adept at handling the demands of live events, corporate presentations, and worship services, where impeccable audiovisual performance is paramount.
The system's impressive range extends up to 100 meters at 4K resolution in normal mode, and up to 130 meters (430 feet) at 2K resolution, further pushing the boundaries to 180 meters (590 feet) in ultra mode for 1080p at 60Hz with 24 bits per pixel color depth, when utilizing Kramer HDBaseT cables. This extensive reach ensures that even the most complex setups can be accommodated without sacrificing signal quality.
Moreover, the DTAXR-IN2-F16 is equipped with a robust Ethernet extension, supporting bidirectional data flow and enabling up to 100Mbps of Ethernet connectivity for comprehensive LAN communication and device control. This feature is essential for integrating network-based control systems and facilitating seamless operation across various devices.
The bidirectional RS-232 and infrared extensions enhance the card's versatility, allowing for the transmission of serial interface data and remote control of peripheral devices located at either end of the extended line. This level of control is crucial for managing complex AV setups and ensuring smooth operation.
Additionally, the card offers the convenience of analog audio embedding and de-embedding on the same jack, streamlining the audio signal management process. The HDBaseT technology underpinning the DTAXR-IN2-F16 is not only HDTV compatible but also HDCP compliant, ensuring secure and reliable content protection across all transmitted data.
In summary, the DTAXR-IN2-F16 is an essential component for professionals seeking a sophisticated, high-performance solution for their audiovisual transmission needs. Its combination of extended range, bidirectional control, and audio management capabilities make it a standout choice in the realm of professional AV equipment.
