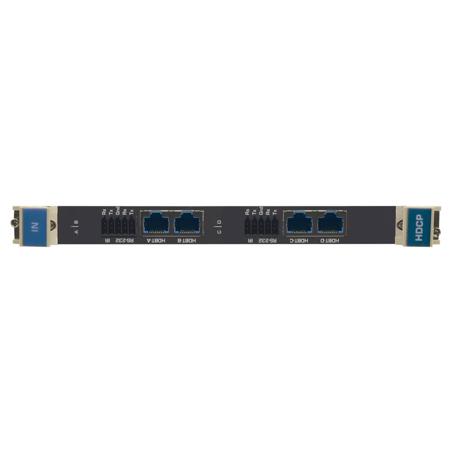

Kramer Electronics DT-IN4-F32 4-Channel 4K60 4:2:0 HDMI over Long Reach HDBaseT Input Card

SKU: KRDTIN4F32SE MFR: 20-70008398
Earn VIP Reward Points

Key Features

  • Enjoy reliable connection with this 4-channel 4K60 HDMI over HDBaseT input card.
  • Achieve high resolution video routing in professional display systems easily.
  • This versatile video switcher supports 3D pass-through for immersive experiences.
  • Experience low latency with a video bandwidth of 3.4Gbps per channel.
  • Easy setup for broadcast, presentation, and production facilities.
  • Extend your reach up to 230ft at 1080p with this affordable HDBaseT solution.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Kramer Electronics DT-IN4-F32 Specifications

  • Applications

    Professional display systems requiring video signal routing
    Broadcast, presentation and production facilities, as well as monitoring in large duplication systems
    Rental/staging applications

  • Inputs

    4 HDBaseT: On RJ-45 connectors

  • Ports

    4 RS-232 and 4 IR ports: On 10-pin terminal blocks

  • Bandwidth Per Channel

    Video: 3.4Gbps
    Serial data: 115200

  • Total Bandwidth

    Video: 10.2Gbps
    Serial data: 115200

  • Maximum Range

    40m (130ft) - 4K at 60Hz (4:2:0) or 4K at 30Hz (4:4:4)
    70m (230ft) - 1080p 12 bit (deep color)
    Note: When using Kramer HDBaseT cables

  • 3D Pass-through

    Supported

  • Extended RS-232

    300 to 115200 baud rate

  • Standards Compliance

    HDCP 1.4, HDMI 1.3a, HDBaseT, HDTV compatible

  • Power Consumption

    10W

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Safety Regulatory Compliance

    CE

  • Environmental

    RoHs and WEEE

  • Dimensions (WxDxH)

    8.5 x 7.48 x 0.79" (21.59 x 19.00 x 2.01cm)

  • Weight

    0.3kg (0.66 lbs) (Approx.)

  • UPC Code

    7291063079987

About Kramer Electronics DT-IN4-F32

An essential component for sophisticated AV setups, the DT-IN4-F32 from Kramer Electronics is a high-quality, four-channel 4K60 4:2:0 HDMI over Long Reach HDBaseT input card, expertly designed for integration with the VS-3232 Series Modular Multi-Format Digital Matrix Switchers. This innovative input card is engineered to facilitate the efficient transmission of ultra-high-definition 4K video signals at 60Hz color sampling, ensuring that your visual content is delivered with exceptional clarity and detail over extended distances.

Crafted with durability and reliability in mind, the DT-IN4-F32 is capable of receiving four long-reach HDBaseT signals, making it an ideal solution for professional AV installations where the source and display equipment are significantly separated. The card's advanced technology supports bidirectional RS-232 and IR control, allowing for seamless communication from the line to the chassis. This feature ensures that users can remotely manage and switch between inputs with ease, enhancing the overall functionality and user experience.

The DT-IN4-F32 stands out in the market due to its efficient design and the reputation of Kramer Electronics for producing innovative and reliable audio and video equipment. This input card is perfectly suited for environments such as conference rooms, lecture halls, and control rooms, where uninterrupted, high-quality video transmission is not just expected but required.

Integrators and AV professionals looking for a robust solution to extend 4K video signals without compromising on quality will find the DT-IN4-F32 to be an indispensable tool in their arsenal. Its cutting-edge HDBaseT technology, combined with the trusted craftsmanship of Kramer Electronics, ensures that this input card delivers top-tier performance and longevity in any professional AV setup.

Kramer Electronics DT-IN4-F32 Features

  • System Range - 40m (130ft) - 4K60 4:2:0 or 4K30 4:4:4; 70m (230ft) - 1080p 12bit (deep color). Note: When using Kramer HDBaseT cables
  • HDTV Compatible
  • HDCP Compliant
  • 3D Pass-Through
  • Bidirectional RS-232 and IR per Port
  • Kramer Equalization and re-Klocking Technology

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Enjoy reliable connection with this 4-channel 4K60 HDMI over HDBaseT input card.
  • Achieve high resolution video routing in professional display systems easily.
  • This versatile video switcher supports 3D pass-through for immersive experiences.
  • Experience low latency with a video bandwidth of 3.4Gbps per channel.
  • Easy setup for broadcast, presentation, and production facilities.
  • Extend your reach up to 230ft at 1080p with this affordable HDBaseT solution.

What's in the box:

  • Kramer Electronics DT-IN4-F32 4-Channel 4K60 4:2:0 HDMI over Long Reach HDBaseT Input Card
  • Screw Driver
  • Kramer Electronics 7 Year Limited Warranty
