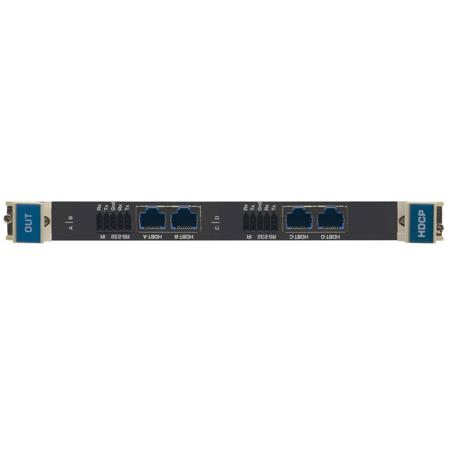

Kramer Electronics DT-OUT4-F32 4-Channel 4K60 4:2:0 HDMI over Long Reach HDBaseT Output Card

SKU: KRDTOT4F32SE MFR: 20-70008498
Earn VIP Reward Points

Key Features

  • Enjoy reliable connections with this HDBaseT output card for seamless video distribution.
  • Achieve high resolution video at 4K60 4:2:0, perfect for professional display systems.
  • Extend your video reach up to 70m (230ft) at 1080p with Kramer HDBaseT cables.
  • Wide compatibility: Supports HDCP 1.4, HDMI 1.3a, and HDTV standards effortlessly.
  • Low latency output ensures real-time video in broadcast and production environments.
  • Simplify setup with this user-friendly video switcher component, offering great value.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the primary use of the DT-OUT4-F32 4-Channel 4K60 4:2:0 HDMI Output Card?

The primary use of this output card is to transmit 4K60 4:2:0 HDMI video and audio signals over long distances using HDBaseT technology. It's ideal for use in professional AV installations, such as conference rooms, lecture halls, and control rooms.

What is the advantage of having a 4-channel output card?

A 4-channel output card like the DT-OUT4-F32 allows for the simultaneous transmission of four separate high-definition audio and video signals. This is particularly useful in large venues or events where multiple signals need to be transmitted over long distances.

What does 'long reach HDBaseT' mean in the context of this product?

Long Reach HDBaseT refers to a technology that enables the transmission of high-definition video and audio signals over long distances, without any loss of quality. This makes the DT-OUT4-F32 suitable for situations where the source and the display or speakers are far apart.

What does 'bidirectional RS-232 and IR control' mean?

Bidirectional RS-232 and IR control means that the DT-OUT4-F32 can send and receive commands to and from compatible devices connected to the system. This allows for remote control of these devices, adding versatility and convenience to your AV setup.

What makes Kramer Electronics a reputable brand?

Kramer Electronics is known for producing high-quality audio and video equipment that is reliable and durable. They have a reputation for consistent performance over time, and are also known for their excellent customer support.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Kramer Electronics DT-OUT4-F32 Specifications

  • Applications

    Professional display systems requiring video signal routing
    Broadcast, presentation and production facilities, as well as monitoring in large duplication systems
    Rental/staging applications

  • Inputs

    4 HDBaseT: On RJ-45 connectors

  • Ports

    4 RS-232 and 4 IR ports: On 10-pin terminal blocks

  • Bandwidth Per Channel

    Video: 3.4Gbps
    Serial data: 115200

  • Total Bandwidth

    Video: 10.2Gbps
    Serial data: 115200

  • Maximum Range

    40m (130ft) - 4K at 60Hz (4:2:0) or 4K at 30Hz (4:4:4)
    70m (230ft) - 1080p 12 bit (deep color)
    Note: When using Kramer HDBaseT cables

  • 3D Pass-through

    Supported

  • Extended RS-232

    300 to 115200 baud rate

  • Standards Compliance

    HDCP 1.4, HDMI 1.3a, HDBaseT, HDTV compatible

  • Power Consumption

    8W

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Safety Regulatory Compliance

    CE

  • Environmental

    RoHs and WEEE

  • Dimensions (WxDxH)

    8.5 x 7.48 x 0.79" (21.59 x 19.00 x 2.01cm)

  • Weight

    0.3kg (0.66 lbs) (Approx.)

  • UPC Code

    7291063080006

About Kramer Electronics DT-OUT4-F32

Are you looking to enhance your professional AV setup with a solution that promises durability, high-quality transmission, and efficient signal distribution The DT-OUT4-F32 4-Channel 4K60 4:2:0 HDMI over Long Reach HDBaseT Output Card is an innovative addition to the Kramer Electronics lineup, designed to meet the needs of demanding audiovisual environments.

This robust output card is specifically engineered for the VS-3232 Series Modular Multi-Format Digital Matrix Switchers, seamlessly integrating into your existing system to expand its capabilities. With the ability to output four long-reach HDBaseT signals, the DT-OUT4-F32 ensures that your 4K at 60Hz (4:2:0) HDMI video and audio content is transmitted crisply and clearly over extended distances, making it an ideal choice for large venues, conference centers, and educational facilities.

The DT-OUT4-F32 is not only reliable but also boasts bidirectional RS-232 and IR control, allowing for remote command and control of compatible devices connected to the system. This feature ensures that your AV setup is not only high-performing but also versatile and user-friendly.

Crafted with the professional user in mind, the DT-OUT4-F32 is a testament to Kramer Electronics' commitment to innovation and excellence in the field of audio and video equipment. Its efficient design and reliable performance make it a standout choice for those who require long-distance signal transmission without compromising on quality.

Choose the DT-OUT4-F32 for a future-proof solution that brings together cutting-edge technology and the trusted performance synonymous with Kramer Electronics. Whether you're outfitting a control room, lecture hall, or any professional AV installation, this output card is designed to deliver unparalleled audio and video experiences to your audience, no matter the distance.

Kramer Electronics DT-OUT4-F32 Features

  • System Range - 40m (130ft) - 4K60 4:2:0 or 4K30 4:4:4; 70m (230ft) - 1080p 12bit (deep color). Note: When using Kramer HDBaseT cables
  • HDTV Compatible
  • HDCP Compliant
  • 3D Pass-Through
  • Bidirectional RS-232 and IR per Port
  • Kramer Equalization and re-Klocking Technology

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Enjoy reliable connections with this HDBaseT output card for seamless video distribution.
  • Achieve high resolution video at 4K60 4:2:0, perfect for professional display systems.
  • Extend your video reach up to 70m (230ft) at 1080p with Kramer HDBaseT cables.
  • Wide compatibility: Supports HDCP 1.4, HDMI 1.3a, and HDTV standards effortlessly.
  • Low latency output ensures real-time video in broadcast and production environments.
  • Simplify setup with this user-friendly video switcher component, offering great value.

What's in the box:

  • Kramer Electronics DT-OUT4-F32 4-Channel 4K60 4:2:0 HDMI over Long Reach HDBaseT Output Card
  • Screw Driver
  • Kramer Electronics 7 Year Limited Warranty
