Kramer Electronics FC-10Dxl Composite Transcoder
See all Kramer Electronics items

Kramer Electronics FC-10Dxl Composite/s-Video/Component Transcoder

SKU: KRFC10DXL

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Kramer Electronics FC-10Dxl Specifications

  • Inputs

    1 CV on an RCA connector, 1 YC on a 4-pin connector

  • Outputs

    3 RCA connectors: Y/G, B-Y/B/CV and R-Y/R/C, for use as CV, Y/C, RsGsBs3, or component (Y/B-Y/R-Y); 1 Y/C on a 4-pin connector

  • Bandwidth

    5MHz

  • Differential Gain

    0.35%

  • Differential Phase

    0.25Deg

  • K-Factor

    0.40%

  • S/N Ratio

    66.3dB

  • Crosstalk

    <-66dB

  • CONTROLS

    Input selector and output format selector push buttons

  • Power Source

    12V DC, 210mA

  • Dimensions (W x H x D)

    21.5cm x 16.2cm x 4.4cm (8.46" x 6.38" x 1.73")

  • Weight

    0.3kg (0.67lbs) approx.

About Kramer Electronics FC-10Dxl

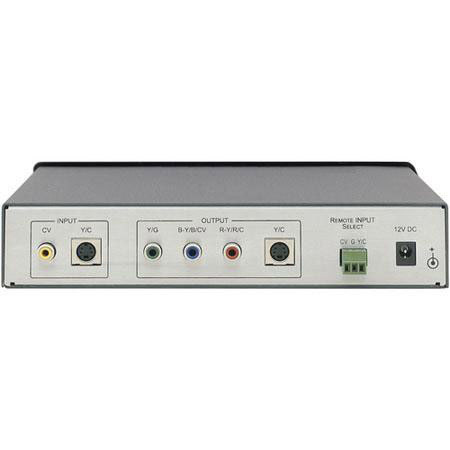

The Kramer Electronics FC-10DXl Composite/s-Video/Component Transcoder converts composite video or s-Video signals to a composite and s-Video (Y/C) or component (YUV/RGB) video output. Equipped with 3D comb filtering, it offers high-quality color separation. With front panel input and output buttons and contact closure remote input select, you can control the transcoder functions.

The FC-10DXl Composite/s-Video/Component Transcoder has a compact size (8.46 x 6.38 x 1.73" / 21.5 x 16.2 x 4.4 cm), 2 units can be rack mounted side-by-side in a 1U rack space with the RK-1 rack adaptor. It is ideal for video production, editing and duplication studios and interfacing between machines with differing formats.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Kramer Electronics FC-10Dxl Composite/s-Video/Component Transcoder
  • Power Cord
  • Kramer Electronics Warranty
