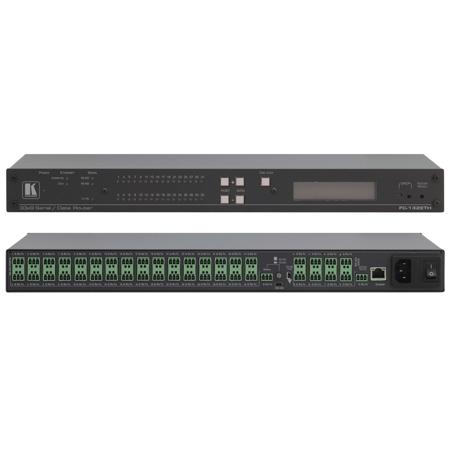

Kramer Electronics FC-132ETH 32-Port Serial Control Gateway and Advanced Serial Communication Matrix

SKU: KRFC132E110V MFR: FC-132ETH/110V
Earn VIP Reward Points

Key Features

  • Manage multiple devices using the FC-132ETH Serial Control Gateway effectively.
  • Enjoy seamless control with 32 RS-232 serial output ports for wide connectivity.
  • Easily configure settings via front panel buttons and the user-friendly LCD display.
  • Ensure reliable performance with robust RS-232 communication up to 115200bps.
  • Maximize uptime with a durable design, supported by a 7-year limited warranty.
  • Integrate effortlessly into existing setups with included rack mounting brackets.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Kramer Electronics FC-132ETH Specifications

  • Ports

    1 RS-232/RS-485 selectable and 32 RS-232 serial output ports on 3-pin terminal blocks, 8 RS-232 serial input ports on 3-pin terminal blocks, 1 RS-232 serial control port on a 3-pin terminal block, 1 Ethernet on an RJ-45 connector, 1 mini USB connector for local services

  • Supported Serial Port Baud Rates

    1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps

  • RS-232 Communication

    Transparent up to 115200bps

  • Maximum Data Handling of Device

    Up to 310kbps summed on all ports

  • Controls

    Serial Select button, RS-485 terminator switch, DHCP and Factory Default buttons. Front panel buttons and LCD display, RS-232, Ethernet

  • Indicators

    Power, Ethernet, Serial I/O, and DHCP status LEDs

  • Power Consumption

    100-240V AC, 50/60Hz, 17VA

  • Operating Temperature

    0 Degree to +40 Degree C (32 Degree to 104 Degree F)

  • Storage Temperature

    -40 Degree to +70 Degree C (-40 Degree to 158 Degree F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Cooling

    Convection

  • Enclosure Type

    Aluminum

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety Regulatory Compliance

    CE

  • Environmental Regulatory Compliance

    Complies with appropriate requirements of RoHs and WEEE

  • Dimensions (W x D)

    19 x 7.20" (48.3 x 18.30)
    Height: 1U

  • Weight

    3.7 lbs (1.7kg) approx

  • UPC Code

    7291063060930

About Kramer Electronics FC-132ETH

Make your Ethernet control and serial communication more efficient with the FC-132ETH 32-Port Serial Control Gateway and Advanced Serial Communication Matrix. This advanced Ethernet control gateway and serial communication matrix is designed for seamless plug-and-play deployment over a customer Ethernet LAN, making it a reliable choice for your networking needs.

As an advanced serial communication matrix, the FC-132ETH is equipped with 32 RS-232 and one RS-232/RS-485 output ports. It offers the flexibility of switching serial communication data to one or more of the eight RS-232 input ports, either through local control of panel buttons, RS-232 control port, or remote control via Ethernet port control protocol or web-page browsing.

The FC-132ETH supports one-to-one bidirectional or one-to-many unidirectional serial switched communication, depending on matrix routing. As a control gateway, it enables remote bidirectional control of customer-controlled devices serially connected to its 32 RS-232 and one RS-232/RS-485 input ports.

This device allows multiple control clients to be IP-connected to the FC-132ETH control gateway for concurrent control of two RS-232 or RS-485 controllable devices, such as AV scalers, video displays, and audio amplifiers.

The FC-132ETH features a range of control options, including 1 RS-485 or RS-232 Selectable Bi-directional Output Port, 32 Bidirectional RS-232 Output Ports, and 8 Bidirectional RS-232 Input Ports. It also includes 4 Panel Buttons & LCD Display for local panel control of serial matrix ports switching, and a Panel Take / Lock Button for local panel switching control or tampering prevention.

For remote control, the FC-132ETH offers a Bidirectional RS-232 Control Port, an Ethernet Control Port, and built-in web pages for remote browser-based control and support. It also supports simultaneous IP control communication with up to 40 IP control clients.

The FC-132ETH also includes a Mini USB Port for firmware upgrades and local technical services. Its easy installation feature, with plug & play IP auto-setup deployment, ensures a simple and cost-reducing installation process.

Whether you need remote IP control of serial controlled devices, K-Touch multi-clients IP room control, LAN-based expansion of K-Config control system, conference room presentations, advertising applications, or rental and staging, the FC-132ETH 32-Port Serial Control Gateway and Advanced Serial Communication Matrix is a versatile solution for your networking needs.

Kramer Electronics FC-132ETH Features

  • 32 Bidirectional RS-232 output ports
  • 1 Bidirectional RS-485 or RS-232 output port
  • 8 Bidirectional RS-232 input ports
  • 4 panel buttons and LCD display for ports switching control
  • 1 panel button for switching take or lock control
  • 1 Bidirectional RS-232 control port
  • 1 Ethernet control port
  • Built-in control and support Web pages
  • Supported by: Kramer Control, K-Touch and K-Config

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Manage multiple devices using the FC-132ETH Serial Control Gateway effectively.
  • Enjoy seamless control with 32 RS-232 serial output ports for wide connectivity.
  • Easily configure settings via front panel buttons and the user-friendly LCD display.
  • Ensure reliable performance with robust RS-232 communication up to 115200bps.
  • Maximize uptime with a durable design, supported by a 7-year limited warranty.
  • Integrate effortlessly into existing setups with included rack mounting brackets.

What's in the box:

  • FC-132ETH 32-Port Serial Control Gateway and Advanced Serial Communication Matrix
  • Power Cord
  • Rack Mounting Brackets
  • Kramer Electronics 7 Year Limited Warranty
