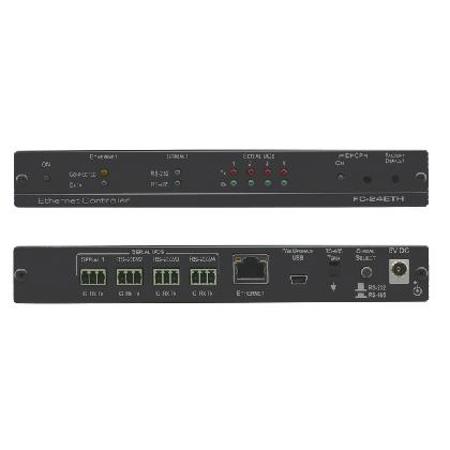

Kramer Electronics FC-24ETH 4-Port Ethernet Controller

SKU: KRFC24ETH MFR: 30-80182190
Earn VIP Reward Points

Key Features

  • Control your devices effortlessly with the Kramer Ethernet Controller's 3 RS-232 ports.
  • Simplify network management using the FC-24ETH's Ethernet connectivity via RJ-45 port.
  • Enjoy durable performance with a wide operating temperature range, 0 to +40 deg. C.
  • Easily monitor device status with LED indicators for power, Ethernet, and serial activity.
  • Compact design (7.4 x 4.5 x 1") allows for discreet placement of the Ethernet controller.
  • Benefit from a 7-year warranty, ensuring long-term reliability of your Kramer controller.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics FC-24ETH Specifications

  • Ports

    3 RS-232 and 1 serial (RS-232/RS-485 selectable) on 3-pin terminal block connectors, 1 Ethernet on an RJ-45 connector

  • Controls

    Serial Select button, RS-485 terminator switch, DHCP and Factory Default buttons

  • Indicators

    Power, Ethernet, Serial 1, Serial I/O, and DHCP status LEDs

  • Power consumption

    5V DC, 250mA

  • Operating temperature

    0 to +40 deg. C / 32 to 104 deg. F

  • Storage temperature

    -40 to +70 deg. C / -40 to 158 deg. F

  • Humidity

    10% to 90%, RHL non-condensing

  • Dimensions (W x D x H)

    18.8 x 11.3 x 2.5cm / 7.4 x 4.5 x 1"

  • Weight

    0.72kg / 1.59lbs (Approx.)

About Kramer Electronics FC-24ETH

Just introduced, the FC-24ETH 4-Port Ethernet Controller is a sophisticated piece of technology designed to streamline your networking needs. This device acts as a bidirectional RS-232 or RS-485 to Ethernet control signal converter, offering a seamless integration of your RS-232 or RS-485 controllable devices into an Ethernet or LAN network.

The FC-24ETH Ethernet Controller is equipped with four ports, providing the flexibility to connect up to four RS-232 controllable devices simultaneously. Alternatively, it can accommodate one RS-485 and three RS-232 devices, offering a versatile solution for diverse networking requirements.

This Ethernet Controller is not just a device, but a bridge that connects your RS-232 or RS-485 devices to the digital world, enabling control via an Ethernet or LAN connection. Whether you're managing audio-visual equipment, security systems, or industrial automation devices, the FC-24ETH 4-Port Ethernet Controller ensures a smooth, reliable, and efficient networking experience.

Incorporating the FC-24ETH 4-Port Ethernet Controller into your setup means embracing a world of enhanced connectivity and control. This product is an essential tool for anyone looking to optimize their network infrastructure, offering a blend of functionality, flexibility, and reliability that sets it apart in the market.

Kramer Electronics FC-24ETH Features

  • Ports 3 RS-232 and 1 serial (RS-232 or RS-485 selectable), 1 Ethernet
  • Simultaneous Communication With up to 40 PC clients
  • USB Port For firmware upgrades

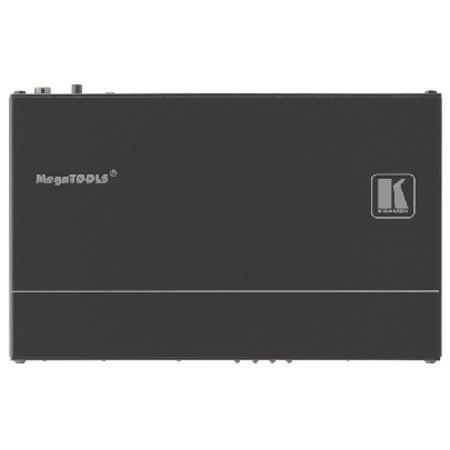

  • Compact MegaTOOLS 2 units can be rack mounted side by side in a 1U rack space with the optional RK-T2B universal rack adapter

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Control your devices effortlessly with the Kramer Ethernet Controller's 3 RS-232 ports.
  • Simplify network management using the FC-24ETH's Ethernet connectivity via RJ-45 port.
  • Enjoy durable performance with a wide operating temperature range, 0 to +40 deg. C.
  • Easily monitor device status with LED indicators for power, Ethernet, and serial activity.
  • Compact design (7.4 x 4.5 x 1") allows for discreet placement of the Ethernet controller.
  • Benefit from a 7-year warranty, ensuring long-term reliability of your Kramer controller.

What's in the box:

  • Kramer Electronics FC-24ETH 4-Port Ethernet Controller
  • Power Supply
  • Kramer Electronics 7 Year Limited Warranty
